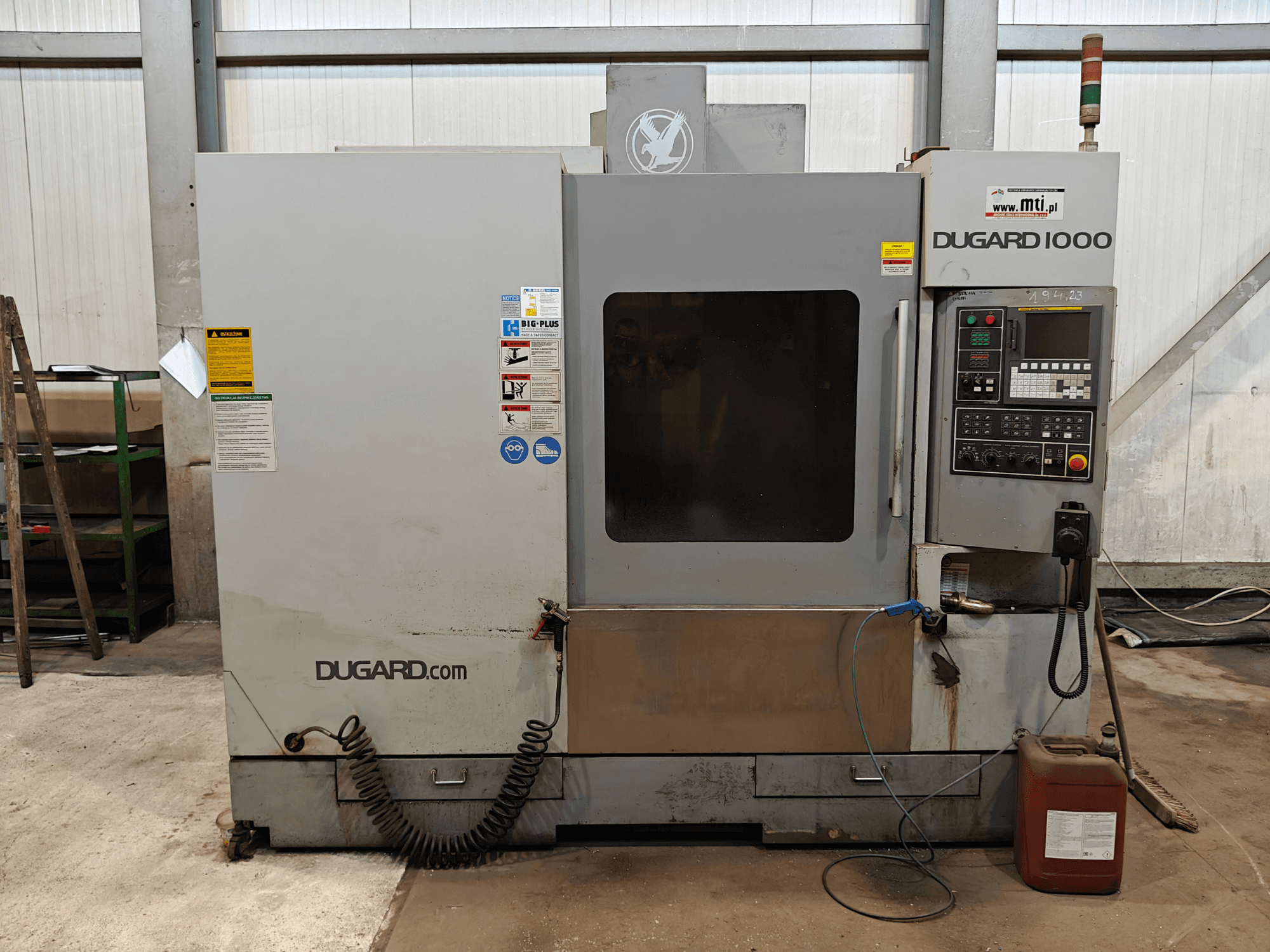

This Dugard 1000Y Plus was manufactured in 2011. It features a table size of 1200 × 600 mm, a maximum table load of 600 kg, and a tool magazine capacity of 24 tools. The machine includes a fourth rotary axis and is equipped with a FANUC 0i-MD control. If you are looking to get high quality milling capabilities consider the Dugard 1000Y Plus machine we have for sale. A large set of accessories and equipment is included. Contact us for more information.
Overview
- brand: Dugard
- year: 2011
- MODEL: 1000Y Plus
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Dugard 1000Y Plus
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MD
Dimensions
- Machine Weight: 7000 kg
- Table Length: 600 mm
- Table Load: 600 kg
- Table Width: 1200 mm
Movement
- Number of Axes: 4
- X-axis Travel: 1020 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 550 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 24
- Spindle Power: 15 kW
- Spindle Speed: 8000 RPM
- Taper Size: ISO 40
- Through-spindle Coolant: Yes
Additional Information
Table size: 1200 × 600 mm
Spindle taper: ISO 40
Through-spindle coolant system
Tool magazine capacity: 24 tools
Most common control: FANUC 0i-MD
Additional equipment
Fourth rotary axis included
Tool and workpiece measuring probe
Extra coolant feeder
Air gun hose for compressed air cleaning
A set of accessories and equipment is included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
