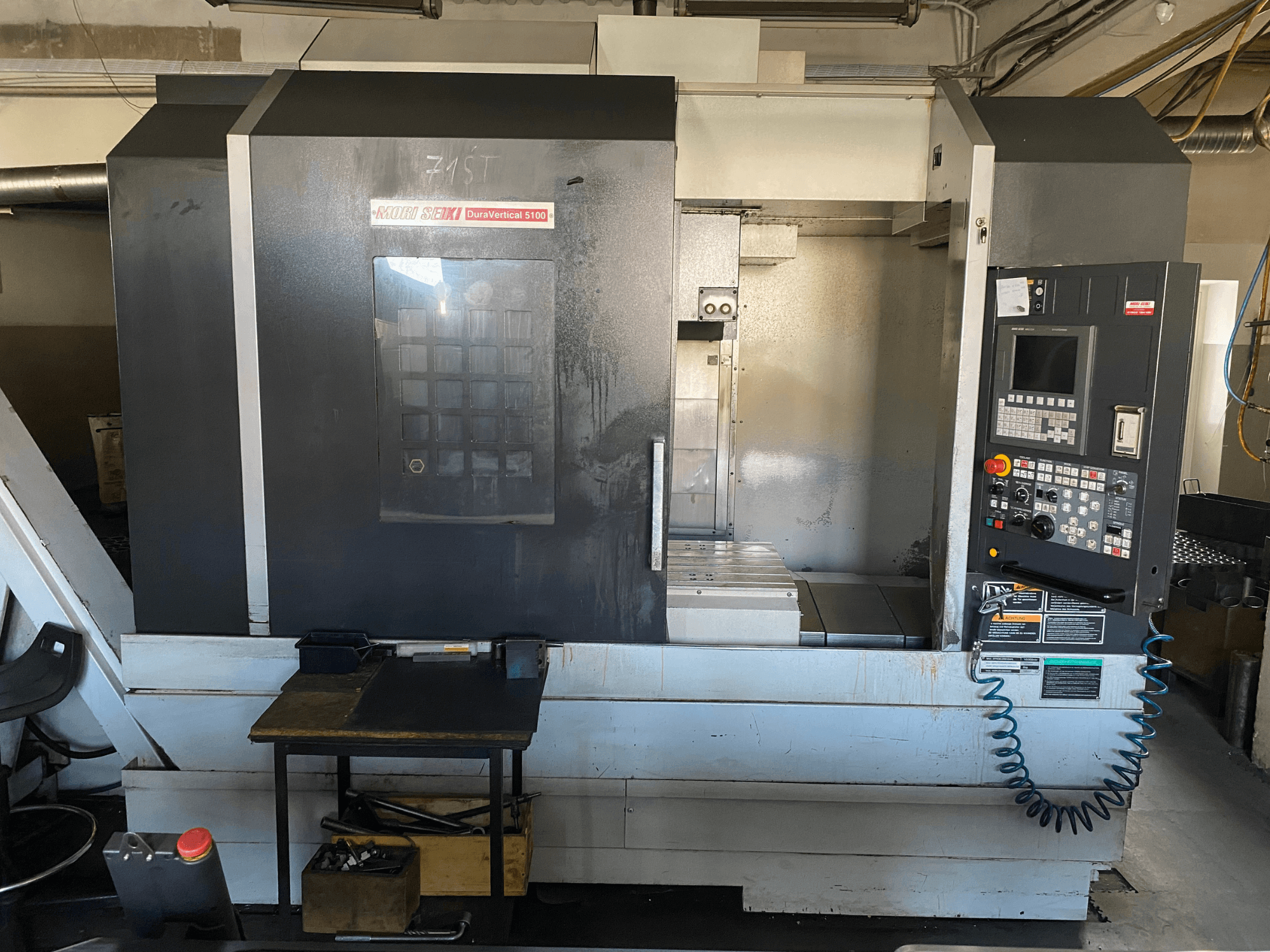

This 3-axis MORI SEIKI DuraVertical 5100 was manufactured in 2007. It features an X-axis travel of 1,050 mm, Y-axis travel of 530 mm, and Z-axis travel of 510 mm. The machine has a robust table size of 1350 x 600 mm and a maximum table load capacity of 1000 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI DuraVertical 5100 vertical machining center we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2007
- MODEL: DuraVertical 5100
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI DuraVertical 5100
Dimensions
- Machine Height: 2674 mm
- Machine Length: 2740 mm
- Machine Weight: 6400 kg
- Table Length: 1350 mm
- Table Load: 1000 kg
- Table Width: 600 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
- Tool Stations: 30
Additional Information
CNC control: MSC-504
Distance spindle nose to table: 150–660 mm
Tool magazine: 30 tools, side-mount ATC
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
