MIKRON - VCP 800PL-MIL-MIK-2003-00002

Rs. 2,745,131
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

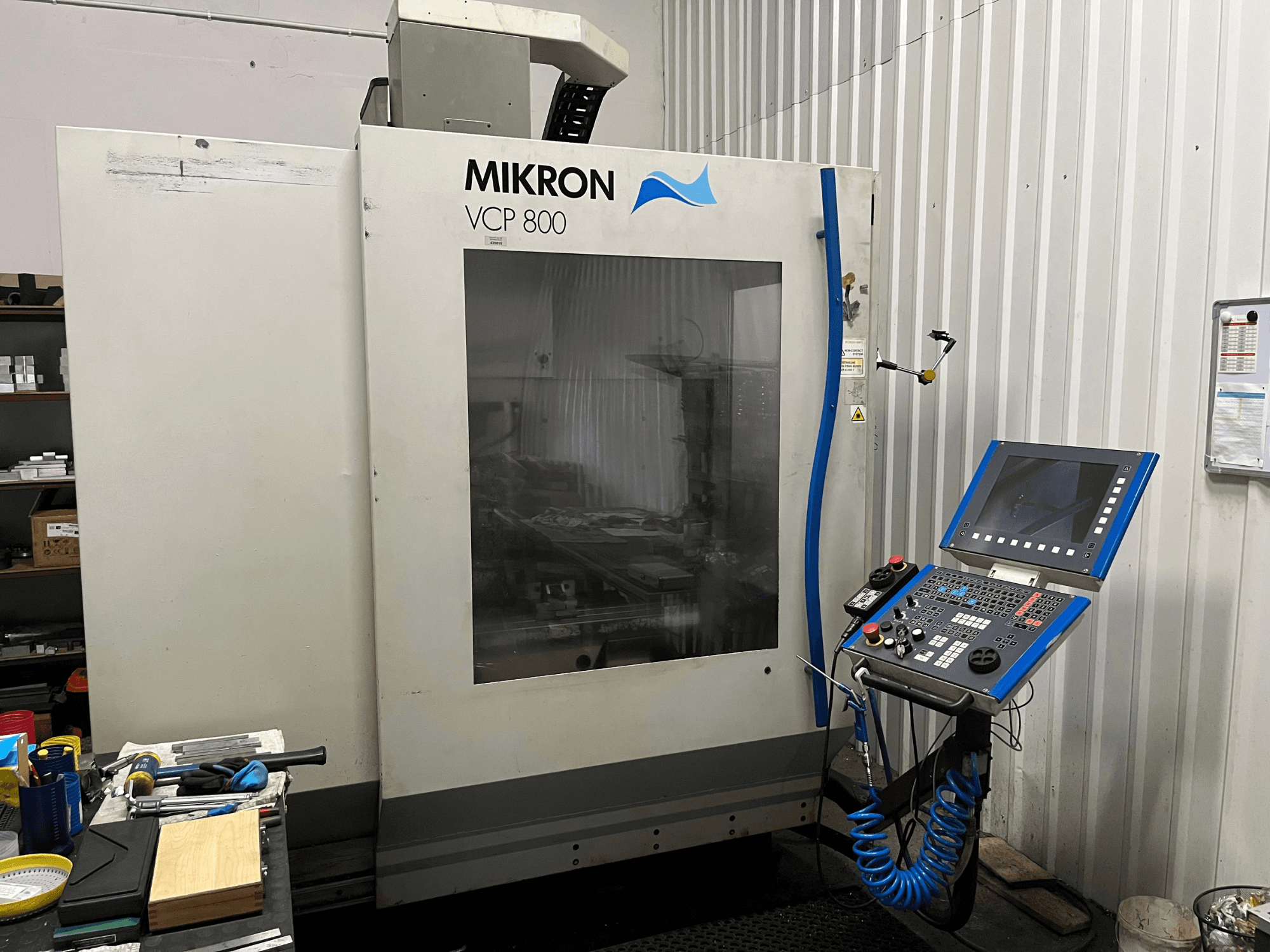

This 3-axis MIKRON VCP 800 was manufactured in 2003. It features an X-axis travel of 800 mm, Y-axis travel of 450 mm, and Z-axis travel of 450 mm. The machine is equipped with a Heidenhain iTNC 530 control and a high-speed spindle capable of reaching up to 20,000 rpm. If you are looking to get high-quality machining capabilities, consider the MIKRON VCP 800 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: MIKRON
  • year: 2003
  • MODEL: VCP 800
  • production hours: 25794
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 800

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Weight: 6500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 800 mm
  • Y-axis Travel: 450 mm
  • Z-axis Travel: 450 mm

Technical Specification

  • Spindle Power: 12 kW
  • Spindle Speed: 20000 RPM

Additional Information

  • Spindle:

    • Type: Step Tec HVCS 212-S-12-1.7/20-2F-HSK-A63

    • Tool holder: HSK-A63 (DIN 69893)

    • Torque: 63 Nm

    • Cooling: Water-cooled

    • Protection rating: IP55

    • Insulation class: F

  • Table:

    • Dimensions: 1,050 × 590 mm

    • Maximum table load: to be confirmed

  • Feed/rapids:

    • Maximum feed rate: 15 m/min

    • Rapid traverse rate: 22 m/min

  • Tool magazine:

    • Capacity: to be confirmed

    • Max tool diameter (adjacent pockets occupied): 90 mm

    • Max tool length: to be confirmed

    • Max tool weight: to be confirmed

  • Electrical:

    • Supply: 3 × 400 V + PE, 50 Hz

    • Control voltage: 24 V DC

    • Fuse protection: 35 A

    • Total connected load: 16 kW

    • Power factor: cos φ 0.9

  • Sound pressure level: 75 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
