➤ Used DMG DECKEL MAHO 64V Linear For Sale | gindumac.com

Show in original language

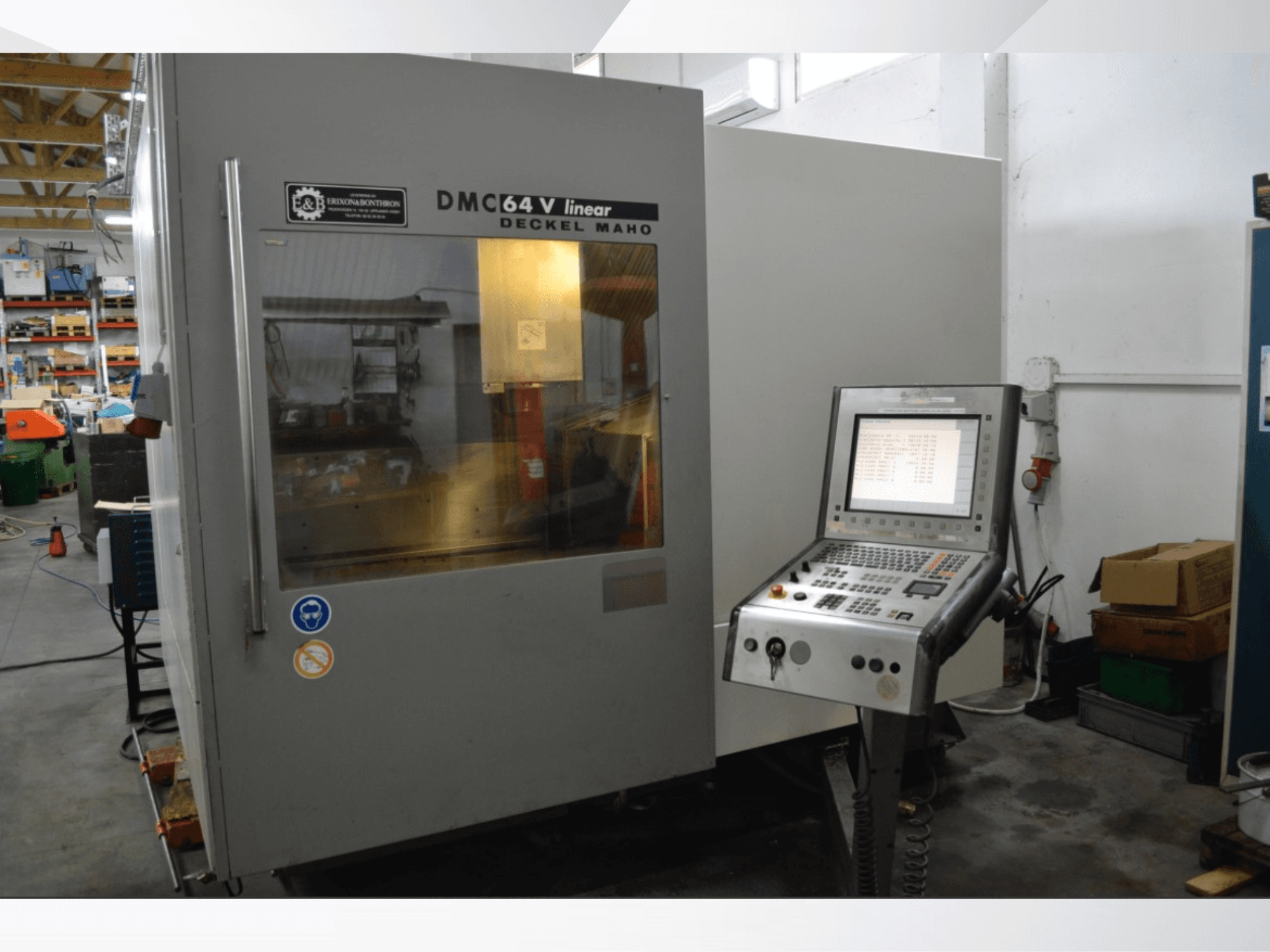

This 3-axis DMG DECKEL MAHO 64V Linear was manufactured in 2002. It features an X-axis travel of 640 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm. The machine includes a table clamping surface of 850 × 600 mm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO 64V Linear vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG DECKEL MAHO
year: 2002
MODEL: 64V Linear
production hours: 13028
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO 64V Linear

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Height: 2450 mm
Machine Length: 3000 mm
Machine Weight: 6500 kg
Table Width: 2400 mm

Movement

Number of Axes: 3
X-axis Travel: 640 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: SK 40
Tool Stations: 30

Additional Information

Rapid Traverse (X / Y / Z): 30 m/min
Max. Feed Rate: 20000 mm/min
Table Clamping Surface: 850 × 600 mm
Max. Table Load: 600 kg
Automatic Tool Changer (ATC) Magazine Capacity: 30 stations
Max. Tool Diameter: 80 mm (140 mm with adjacent pockets empty)
Max. Tool Length: 300 mm
Max. Tool Weight: 7 kg
Spindle Speed Range: 20 – 8000 rpm
Tool Taper: SK 40 / ISO 40
Spindle Power (100% / 40% ED): 13 kW / 19 kW
Max. Spindle Torque: 140 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
