➤ Used DMG DECKEL MAHO DMC 104V linear | Machining Center

Show in original language

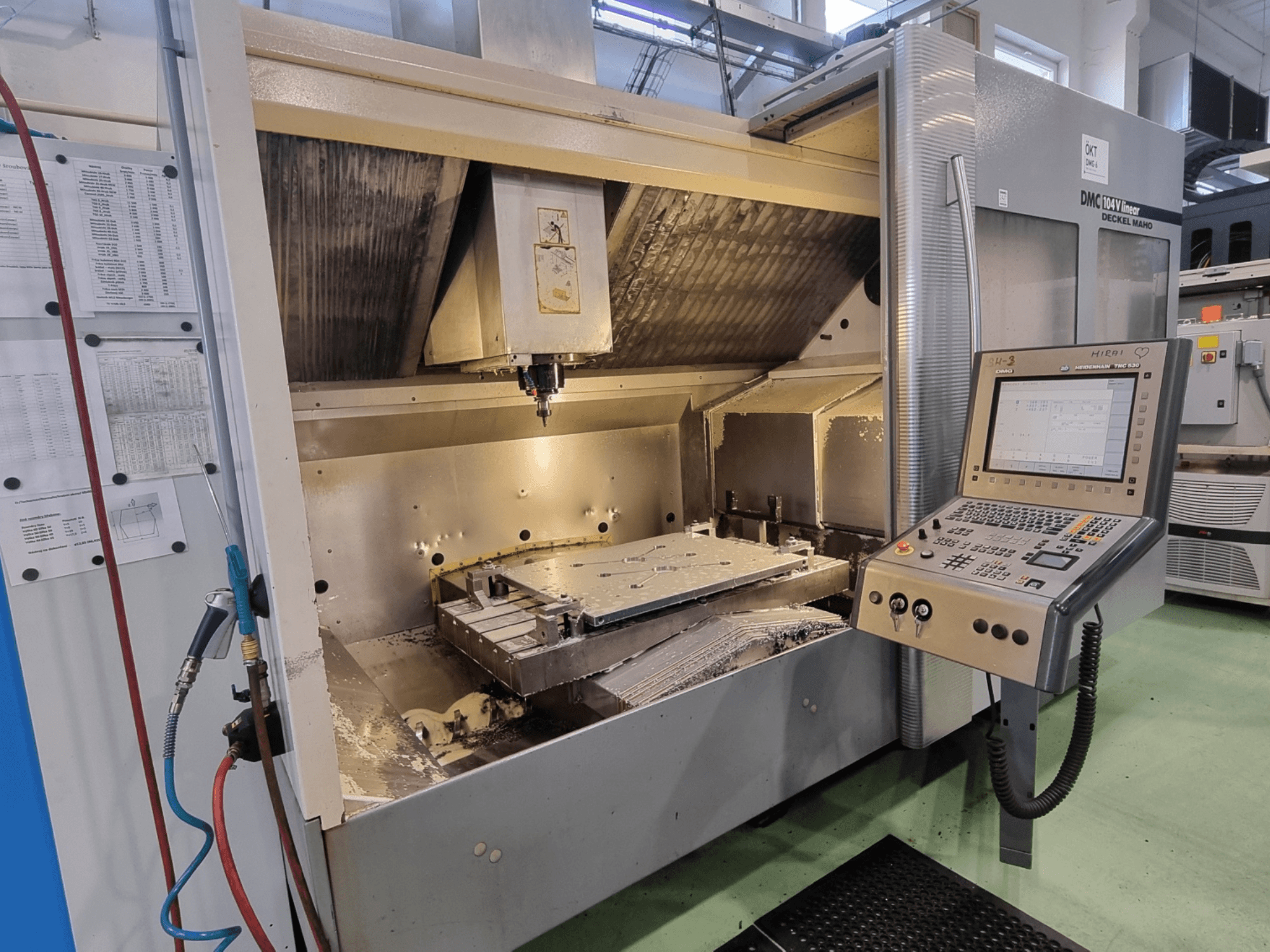

This 3-axis DMG DECKEL MAHO DMC 104V linear was manufactured in 2006. It features an X-axis travel of 1040 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm. The machine includes a robust table size of 1250 x 600 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMC 104V linear vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG DECKEL MAHO
year: 2006
MODEL: DMC 104V linear
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
Available from: 05/10/2026
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO DMC 104V linear

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Height: 2800 mm
Machine Length: 4060 mm
Machine Weight: 8800 kg
Machine Width: 2450 mm
Table Load: 800 kg

Movement

Number of Axes: 3
X-axis Travel: 1040 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: SK 40
Tool Stations: 30

Additional Information

Table size: 1250 × 600 mm
Condition: The machine is fully functional in operation with an accuracy of +/-0.015mm.
Note: Machine was purchased as retrofitted in 2011

Additional equipment

Electrical cabinet air conditioning
Spindle temperature control
Internal mist separator for the working area
Workpiece probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
