DMG DECKEL MAHO - 1035VDE-MIL-DMG-2006-00006

Rs. 2,785,381
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

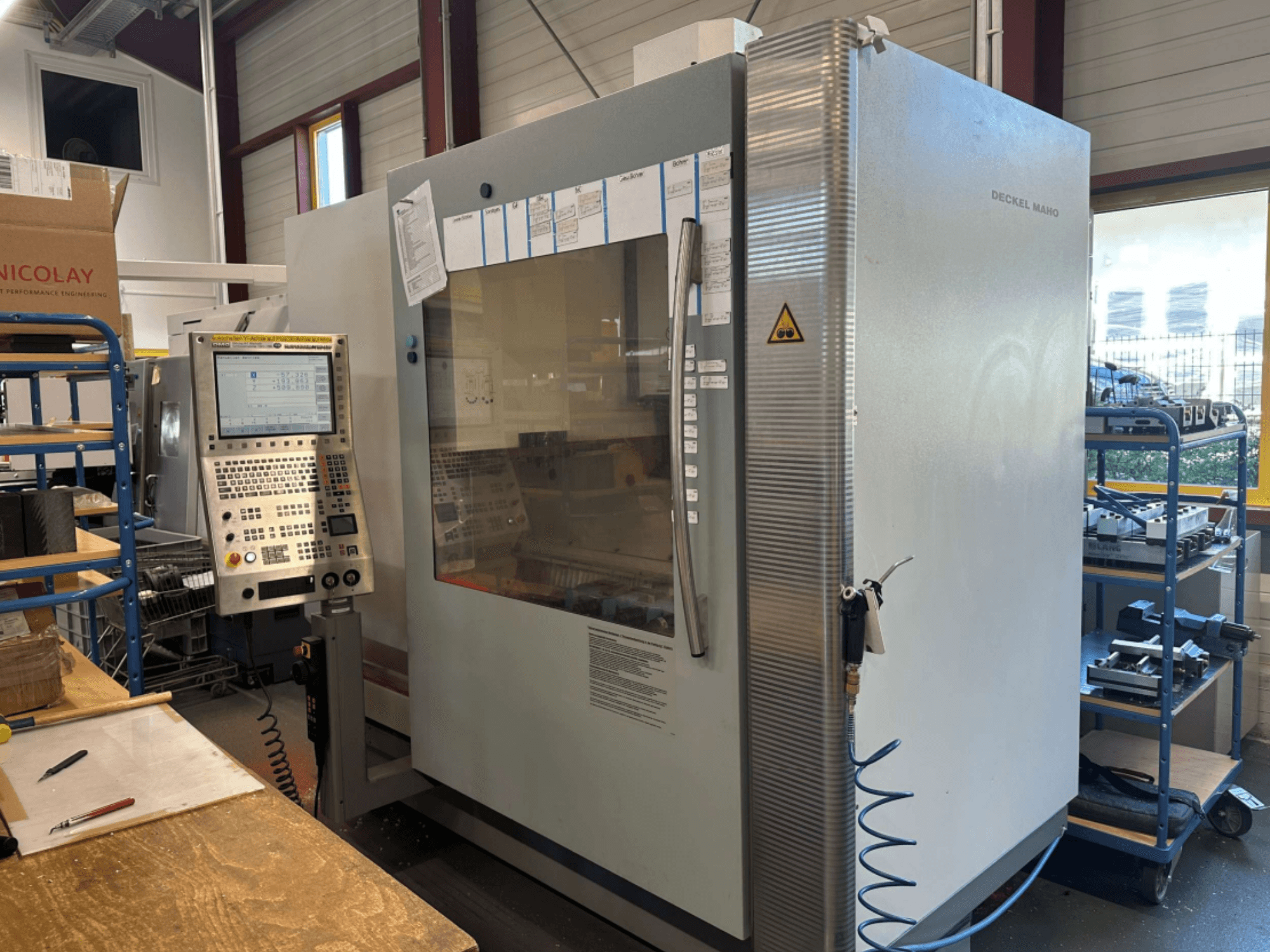

This 3-axis DMG DECKEL MAHO 1035V was manufactured in 2006. It features an X-axis travel of 1,035 mm, Y-axis travel of 560 mm, and Z-axis travel of 510 mm. The machine is equipped with a Heidenhain iTNC 530 control unit and has a tool magazine capacity of 30 positions. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO 1035V vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG DECKEL MAHO
  • year: 2006
  • MODEL: 1035V
  • production hours: 15869
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO 1035V

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530 E

Movement

  • Number of Axes: 4
  • X-axis Travel: 1035 mm
  • Y-axis Travel: 560 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Spindle Speed: 12000 RPM

Additional Information

- PLC Software-Nummer: 4B0000_HEDR_02C

- Development status: L3

- DSP1: 340514 03.1

- ICTL1: 340517 01

- Control On Time: 40,697 hours

- Machine On Time: 38,700 hours

- Program Run Time: 15,863 hours

- 1st Axis Reference Point Time: 14,213 hours / 15,835 hours

- Tool Changer Cycles Time: 1,585 hours

- Spindle Taper: SK 40

- Tool Magazine Capacity: 30 positions (Chain type)

- Touch Probe: Heidenhain TS640

- Electronic Handwheel: Heidenhain

- Power Capacity: 35 kVA

- Maximum Nominal Current (A Jn max): 50 A

- Fuse / Input Current: 63 A

- Mains Voltage: 400 V

- Frequency: 50/60 Hz

- Control Voltage: 230 V

- Direct Current Supply: 24 V

- Central Lubrication System: Vogel pump unit utilizing Divinol Lithogrease 000 fluid grease

- Pneumatic Regulation Assembly: Integrated SMC / Festo air filtration and regulation unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
