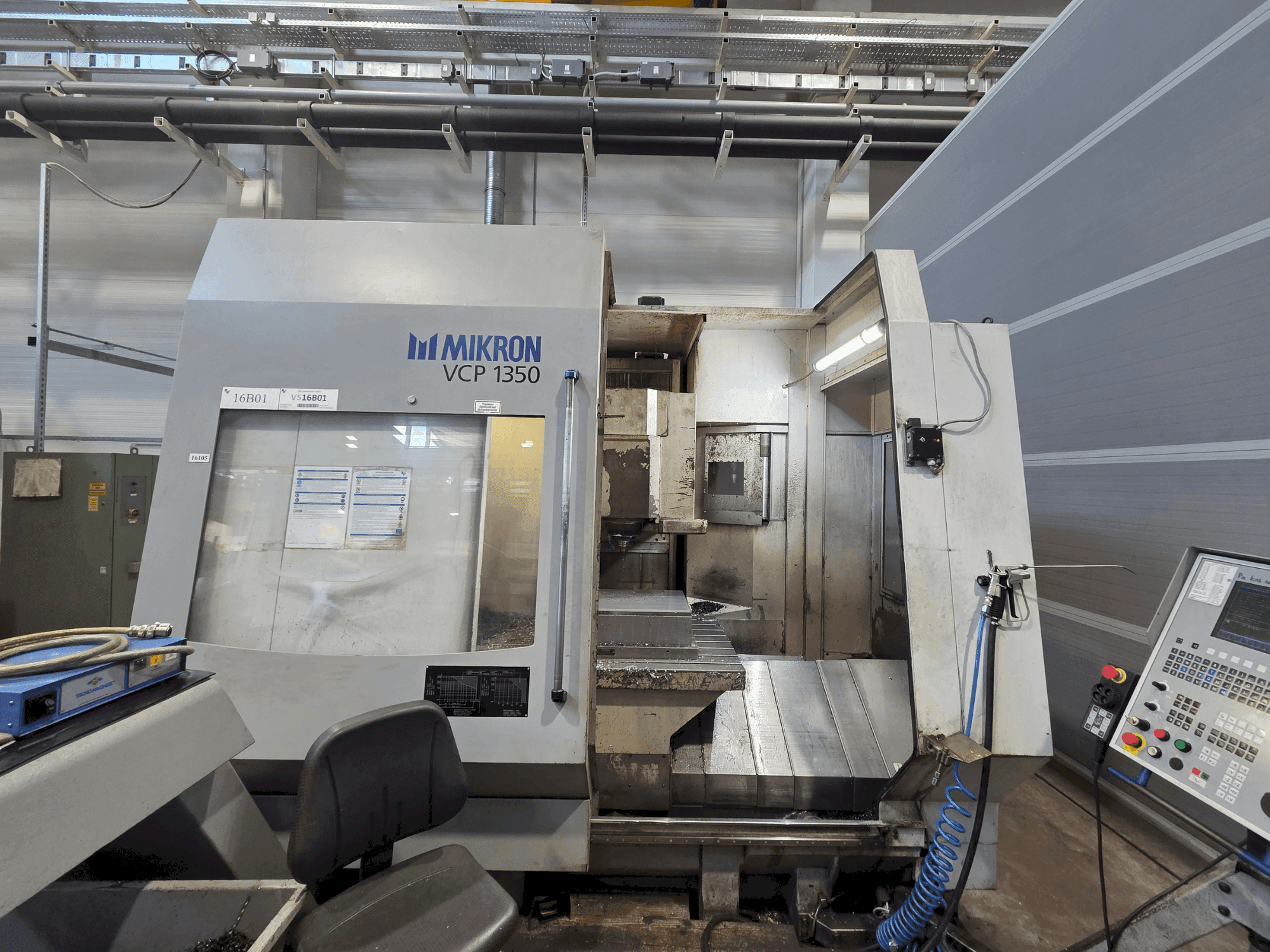

Front view of MIKRON VCP 1350 machine
Front view of MIKRON VCP 1350 machine

MIKRON - VCP 1350SI-MIL-MIK-2000-00001

Rs. 1,749,200
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis MIKRON VCP 1350 was manufactured in 2000. It features a Heidenhain TNC 426 M control system, X-axis travel of 1350 mm, Y-axis of 900 mm, and Z-axis of 750 mm. The machine supports a maximum workpiece weight of 1,800 kg and includes a high-speed Step-Tec HSK-A63 spindle capable of 24,000 rpm. Ideal for precision machining with a tool magazine capacity of 46 tools. Contact us for more information about this machine.

Overview

  • brand: MIKRON
  • year: 2000
  • MODEL: VCP 1350
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 1350

General Data

  • Measurements width: 3680 mm
  • Measurements depth: 4130 mm
  • Measurements height: 3150 mm
  • Machine weight: 10100 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 426 M

Main drive

  • Spindle speed range: 24000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1350 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 900 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 750 mm
  • Z-AXIS Rapid traverse: 30 m/min

Workpiece

  • Workpiece weight: 1800 kg

Table

  • Number of tslots: 10

Tools

  • Max weight: 8 kg
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm
  • Type of tool holder: HSK-A63

    Additional equipment

    • - High-speed precision machining capability

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Equipped with a automatic spindle orientation and high-speed spindle (24000 rpm)
        • - Coolant system pressure: 30 bar (standard) / 40 bar (optional high pressure)
        • - Tank capacity: 180 l (optional 600 l)
        • - Direct drive ac motor
        • - Measuring system: direct linear scales on all axes
        • - Clamping surface: 1425 x 860 mm
        • - Magazine capacity: 46 tools (standard), 92 tools (optional)
        • - Max. Magazine load: 200 kg
        • - Tool-to-tool change time: approx. 12 sec
        • - Available for inspection

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
