Victor - Vcenter 70 - APCSI-MIL-VIC-2004-00001

Name: Victor Vcenter 70 - APC
Brand: Victor
SKU: SI-MIL-VIC-2004-00001
Price: 2001516 INR
Availability: InStock

Rs. 2,001,516

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Victor Vcenter 70 - APC For Sale | gindumac.com

Show in original language

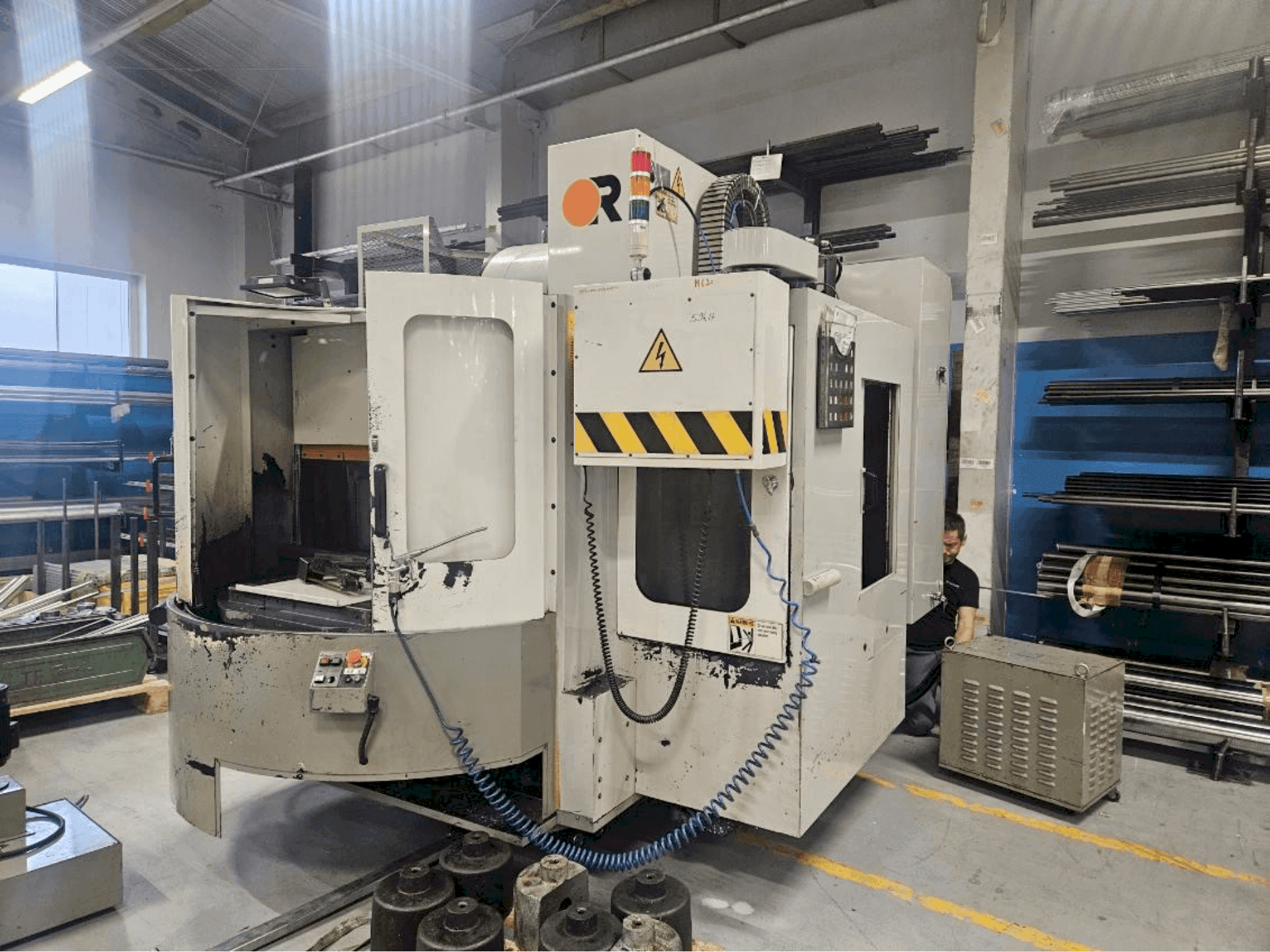

This 3-axis Victor Vcenter 70 - APC vertical machining center was manufactured in 2004. It features a rapid traverse rate of 30/30/24 m/min, a cutting feed rate up to 5000 mm/min, and an automatic tool changer with a 24-tool capacity. The machine includes a BT.40 spindle, rigid tapping, and a flood coolant system. If you are looking to get high-quality milling capabilities, consider the Victor Vcenter 70 - APC machine we have for sale. Contact us for more information.

Overview

brand: Victor
year: 2004
MODEL: Vcenter 70 - APC
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Victor Vcenter 70 - APC

Control Unit

Control Brand: FANUC
Control Model: Oi-MD control

Dimensions

Machine Weight: 4000 kg

Movement

Number of Axes: 3

Additional Information

Additional equipment

Automatic tool changer
Tool magazine capacity: 24 / Tool selection system: Random bi-directional / Tool diameter, maximum: 76 mm / Tool length, maximum: 250 mm / Tool weight, maximum: 7 kg
Spindle tooling: BT.40 / Tool change time: 2.5 sec
Rigid tapping / Flood coolant system / Totally enclosed guarding / Automatic Power Off system / Automatic lubrication system
Centralised pendant operation panel / Built-in work light / Levelling blocks / Tool box and hand tools / Warning light
Operating manual, parts list, Fanuc manuals / Coolant flush on bottom guarding / Air conditioner for electrical cabinet / Spindle oil cooler (Habor)
Chip conveyor & cart - left disposal / Oil Skimmer / Handy coolant gun (Shower gun) / Tool length measurement (Renishaw TS-27R)
Coolant Tank capacity: 100 litres / Pump delivery rate: 80 litres / Pump motor: 1/4 hp / Hydraulics Tank capacity: 30 litres / Pressure Maximum: 35 Kg/sq.cm

Machine Benefits

Technical Machine Benefits

Rapid traverse rate x/y/z: 30/30/24 m/min / cutting feed rate: 1-5000 mm/min
Floor space required: 1950 x 2020 mm
Overall machine height: 2715 mm
Electrical: 415 volt, 3 phase, 50 cycles 40 amp line service
Air: 80 psi min, 1/2" air supply line min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
