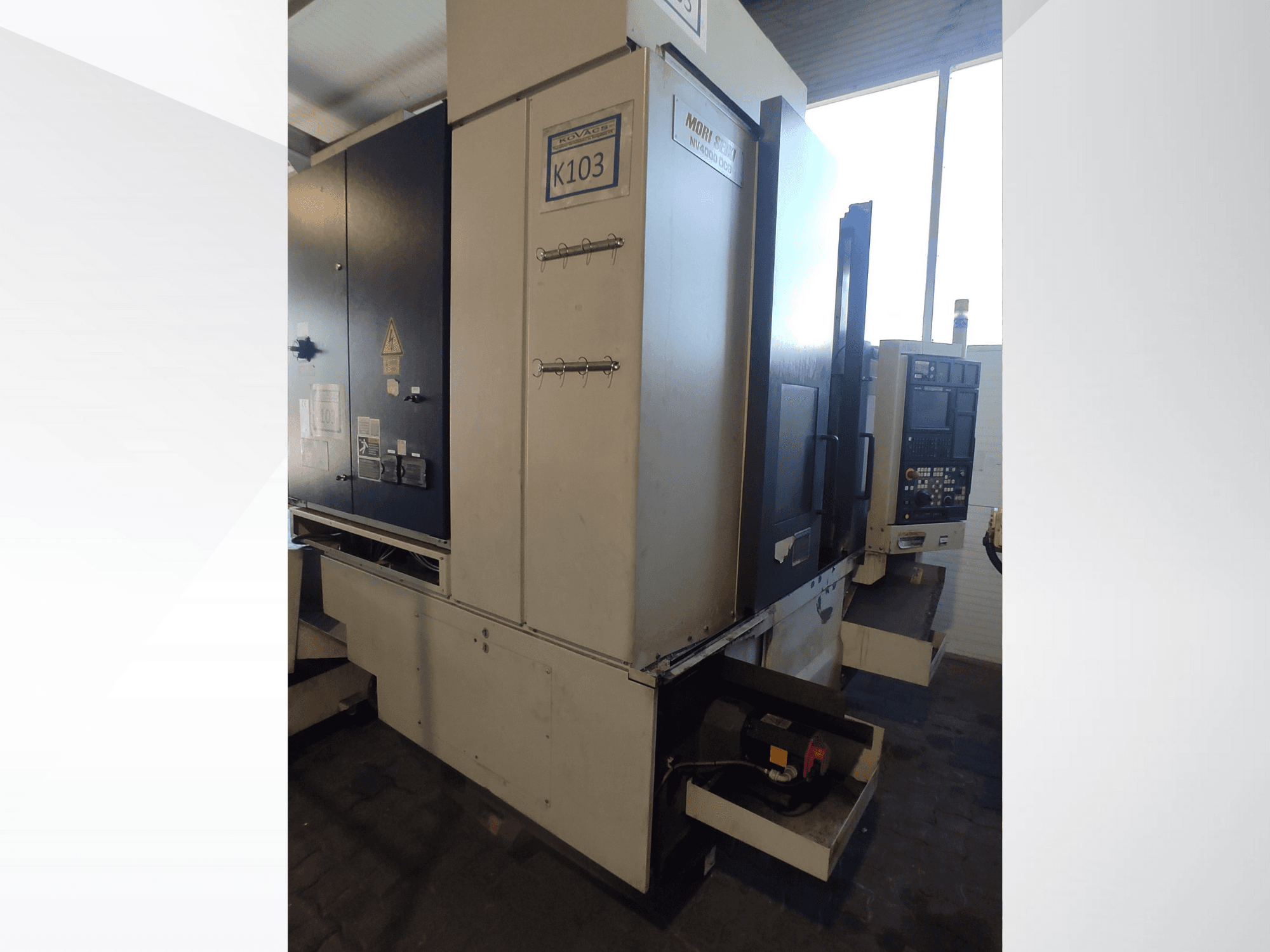

This 3-axis MORI SEIKI NV4000 was manufactured in 2003. It features a CNC control system, typically FANUC/MAPPS, and a vertical machining center design. Key specifications include a 600 mm x 400 mm x 400 mm axis travel, a table size of 700 mm x 450 mm, and a maximum spindle speed of 12,000 rpm. The tool magazine holds up to 40 tools. Consider the opportunity to buy this MORI SEIKI NV4000 vertical machining center. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2003
- MODEL: NV4000
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI NV4000
Dimensions
- Table Load: 350 kg
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table size: 700 × 450 mm
Max workpiece size (L × W × H): approx. 750 × 450 × 400 mm
Tool holder type: BT40 (Big Plus option common)
Tool magazine capacity: typically 40 tools
Rapid traverse (X/Y/Z): 42 m/min
Machine technology: DCG – Driven at the Center of Gravity design to reduce vibration and increase accuracy and surface quality
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
