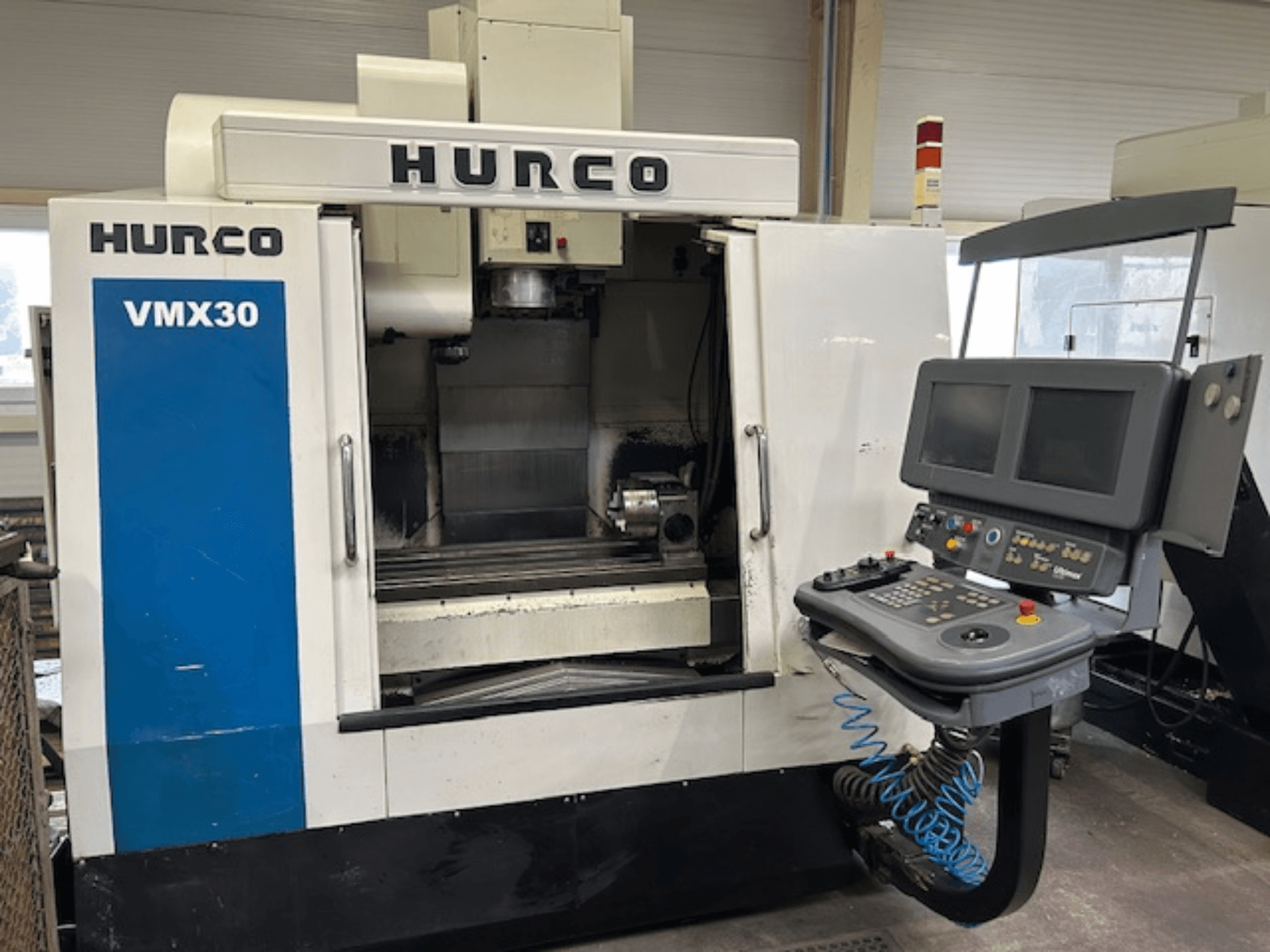

This 4-axis Hurco VMX30 was manufactured in 2004. It features a CNC milling machine with a rotary table for 4th axis capabilities. Key specs include a 762 mm X-axis travel, 508 mm Y-axis travel, 610 mm Z-axis travel, and a table size of 1,016 × 508 mm. It supports a maximum spindle speed of 10,000 rpm and a tool magazine capacity of 24. Consider the opportunity to buy this Hurco VMX30 vertical machining centre. Contact us for more information.
Overview
- brand: Hurco
- year: 2004
- MODEL: VMX30
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX30
Dimensions
- Machine Depth: 2800 mm
- Machine Height: 2700 mm
- Machine Weight: 4500 kg
- Table Load: 750 kg
Movement
- Number of Axes: 4
- X-axis Travel: 762 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Table: 1,016 × 508 mm
through-spindle coolant (optional)
Feed rate: cutting 12 m/min
Tool changer: 24 tools; tool change time approx. 4 s
Accuracy: Positioning ±0.005 mm; repeatability ±0.003 mm
Control system: Ultimax; supports full 3D contouring and 4-axis machining
Additional equipment
4th-axis rotary table (C-axis) for indexing or continuous rotation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
