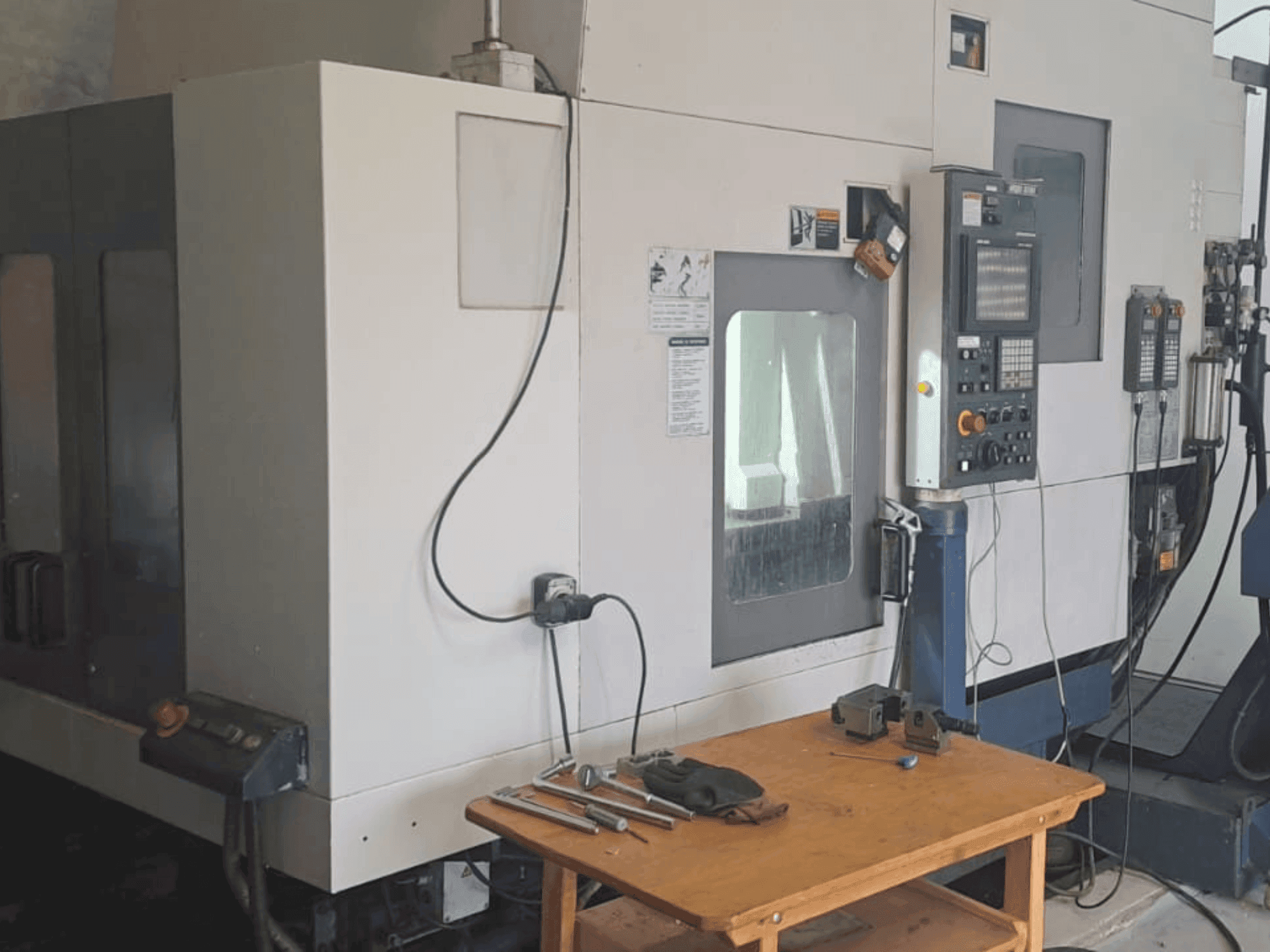

This 3-axis MORI SEIKI CV-500 was manufactured in 1999. Ideal for precision CNC milling, this machine maintains robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the MORI SEIKI CV-500 machine we have for sale. Contact us for more information.

Overview

brand: MORI SEIKI
year: 1999
MODEL: CV-500
application type: Milling
Location: Croatia
machine type: CNC Milling Machine
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI CV-500

Control Unit

Control Brand: MITSUBISHI

Dimensions

Machine Height: 2860 mm
Machine Weight: 3800 kg
Table Load: 350 kg

Movement

X-axis Travel: 510 mm
Y-axis Travel: 510 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Power: 7.5 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

APC (Automatic Pallet Changer) - Only for CV-500A (APC):
Number of Pallets: 2
Pallet Change Method: Front rotation

Machine Benefits

Technical Machine Benefits

Distance between table surface and spindle nose: 175-685 mm
Table dimensions: 750 × 550 mm
Surface configuration: 5 t-slots, 18 mm width
Occupied space: 1680 × 3240 mm
Coolant tank: 300 l
Electrical power: 0. 52 - <0. 32 kwh
Air consumption: 0. 5 mpa, 150 l/min
Axis motors (x, y, z): 2. 0 kw
Lubrication motor: 0. 18 kw // cooling motor: <0. 5 hz
Inner bearing diameter: 65 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
