Bridgeport XR 1000

Photo Gallery

Bridgeport - XR 1000PL-MIL-BRI-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Bridgeport XR 1000 For Sale | gindumac.com

Show in original language

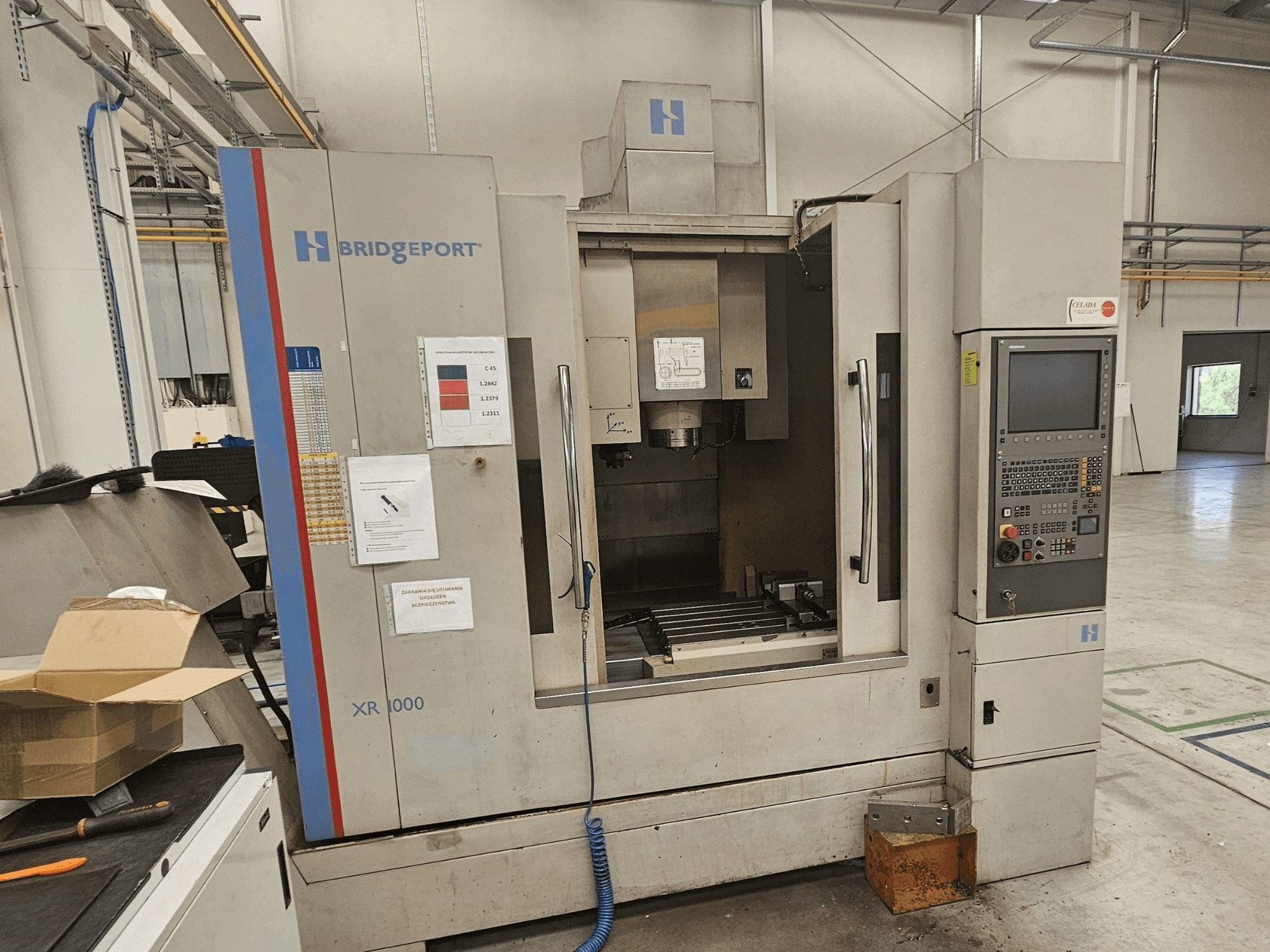

This 3-axis Bridgeport XR 1000 vertical machining centre was manufactured in 2007. It features an X-axis travel of 1000 mm, Y-axis travel of 600 mm, and Z-axis travel of 600 mm. The machine is equipped with a high-speed spindle capable of 12,000 rpm and a side-mounted automatic tool changer with a capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the Bridgeport XR 1000 machine we have for sale. Contact us for further details.

Overview

brand: Bridgeport
year: 2007
MODEL: XR 1000
production hours: 16664
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Bridgeport XR 1000

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 526

Dimensions

Table Length: 1200 mm
Table Load: 900 kg
Table Width: 600 mm

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: ISO 40
Tool Stations: 30

Additional Information

Spindle taper: ISO 40, MAS-BT 40
Tool setting: Tool length setting probe
Tool changer type: Side-mounted automatic tool changer
Machine condition: Fully functional, excellent running condition
Spindle bearings: Rebuilt in 2023

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
