Bridgeport - VMC 1000 22DE-MIL-BRI-2001-00003

Rs. 1,586,653
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

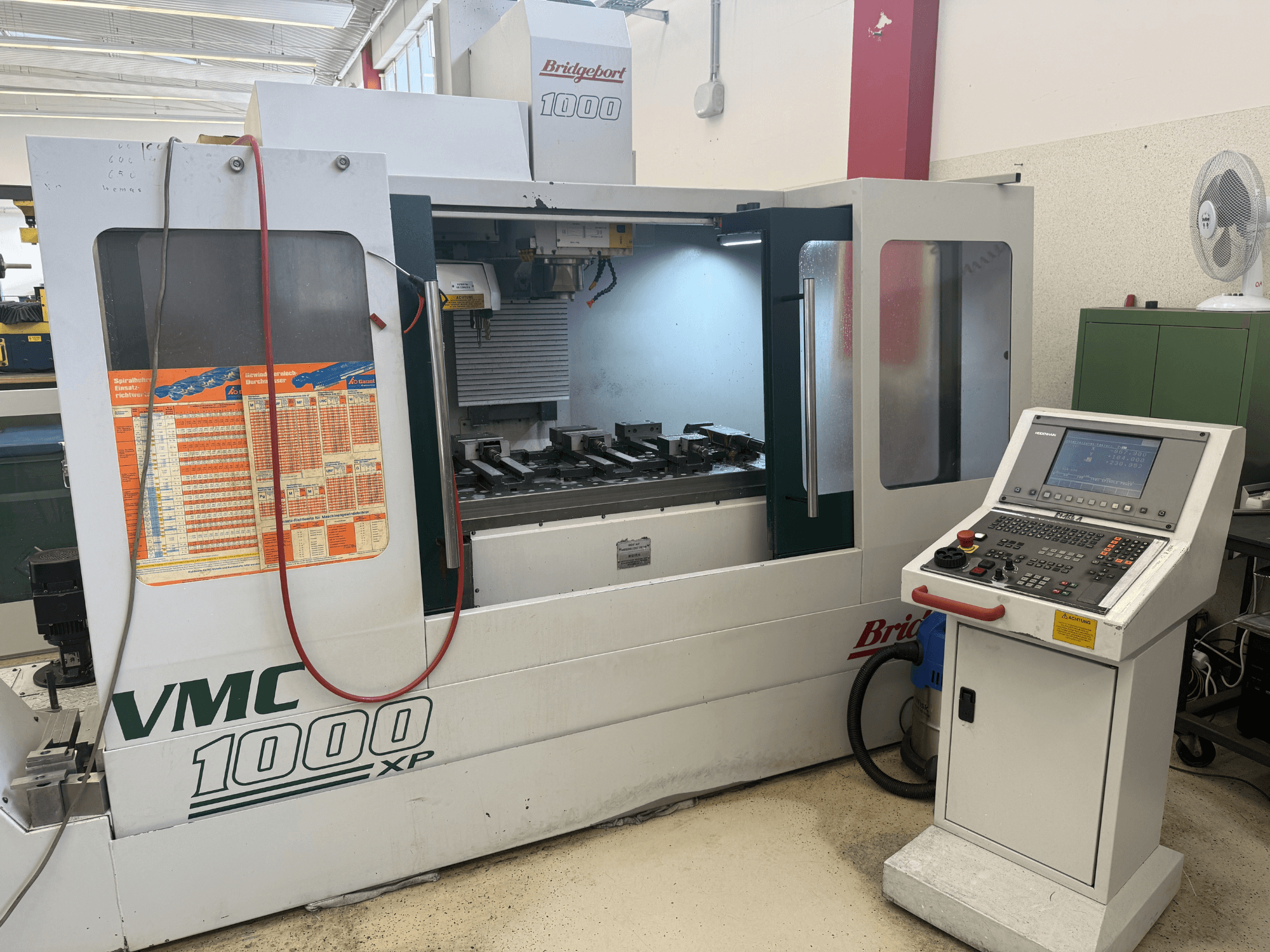

This 3-axis Bridgeport VMC 1000 22 was manufactured in 2001. It features a working area X travel of 1020 mm, Y travel of 610 mm, and Z travel of 610 mm. The machine includes a robust table size of 1150 x 580 mm with a maximum table load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Bridgeport VMC 1000 22 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Bridgeport
  • year: 2001
  • MODEL: VMC 1000 22
  • production hours: 10631
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 1000 22

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 410

Dimensions

  • Machine Height: 2700 mm
  • Machine Weight: 4200 kg
  • Table Load: 500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Power: 13 kW
  • Spindle Speed: 6000 RPM
  • Taper Size: SK 40

Additional Information

  • Table: 1150 x 580 mm; T-slots 5x; T-slot size 18 mm

  • Spindle torque up to 110 Nm

  • Tooling: holder SK 40 DIN 69871; tool changer 22 stations (optional 30); max tool Ø 75 mm; max tool length 250 mm; tool change time approx. 5.2 s

  • Axis speeds: rapid X/Y 40,000 mm/min; rapid Z 30,000 mm/min; feed 1–12,000 mm/min; acceleration 6 m/s²

  • Accuracy: positioning ±0.005 mm; repeatability ±0.002 mm

  • Coolant system: tank capacity 450 l; pump capacity 70 / 140 l/min

  • Electrical: 400 V, 3-phase, 50 Hz; full load current 30 A; fuse protection 63 A; connected load approx. 20 kVA

  • Pneumatics: compressed air 6 bar; consumption approx. 80 l/min

  • Machine size/weight: dimensions 2830 x 2360 mm; transport with Chip conveyor weight approx. 4700 kg

  • Spindle operating time: 10,631 h

Additional equipment

  • Chip conveyor (included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
