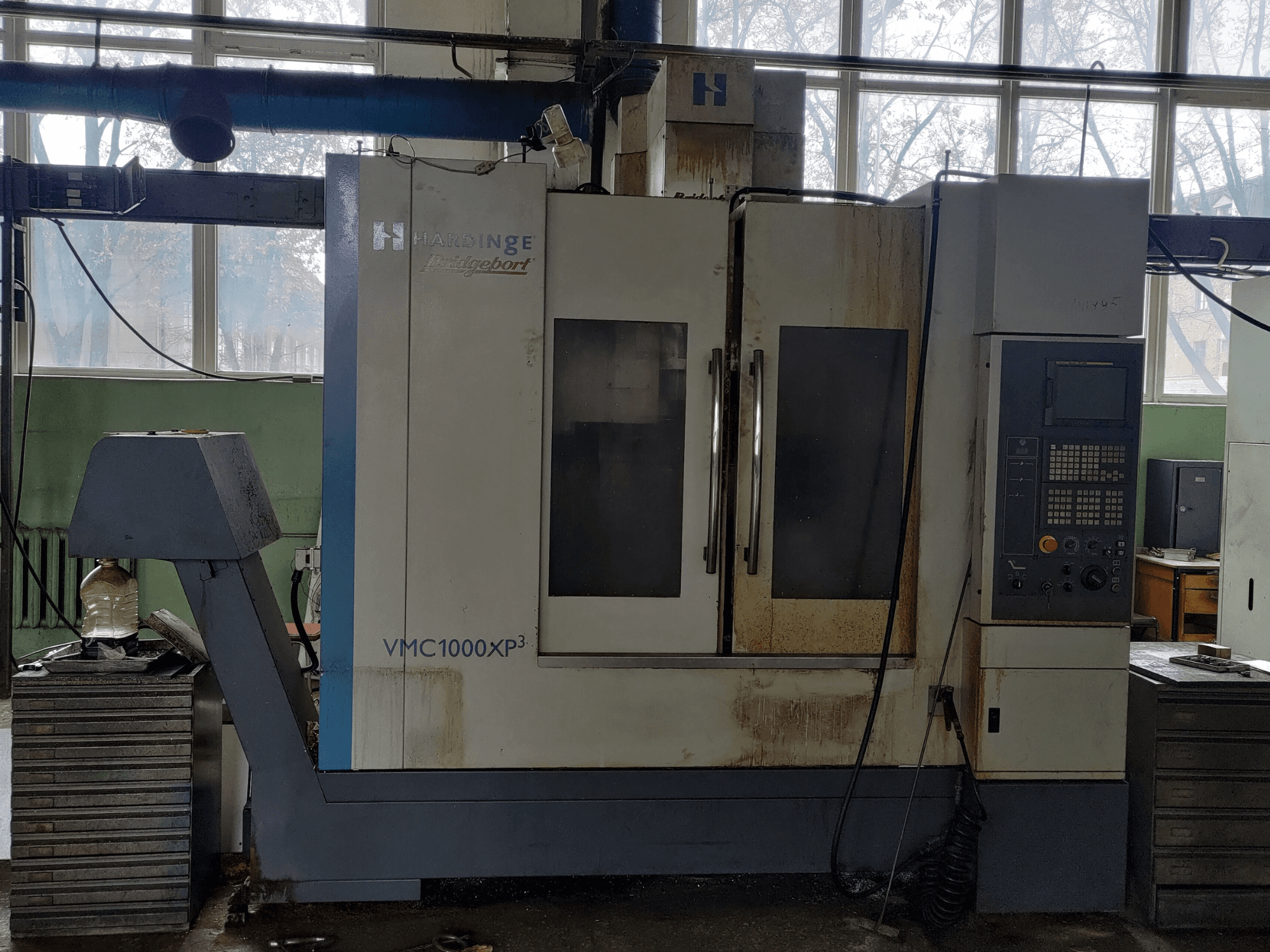

This 3-axis Bridgeport VMC1000 XP3 was manufactured in 2005. It features an X-axis travel of 1020 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine includes a worktable with dimensions of 1200 × 600 mm and a maximum table load of 900 kg. If you are looking to get high-quality machining capabilities, consider the Bridgeport VMC1000 XP3 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Bridgeport
  • year: 2005
  • MODEL: XP3-1000 / VMC1000 XP3
  • application type: Milling
  • Location: Latvia
  • machine type: Vertical Machining Centre

Technical Information - Bridgeport XP3-1000 / VMC1000 XP3

Dimensions

  • Machine Weight: 6700 kg
  • Table Load: 900 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Spindle Power: 15.5 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 40
  • Tool Stations: 30

Additional Information

  • Worktable dimensions: 1200 × 600 mm

  • Rapid traverse: X 43 m/min, Y 43 m/min, Z 36 m/min

  • Electrical: 415 V, 50 Hz, Full load current 58 A, Short-circuit rating 25 kA

Additional equipment

  • Chip conveyor with auger discharge chute

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
