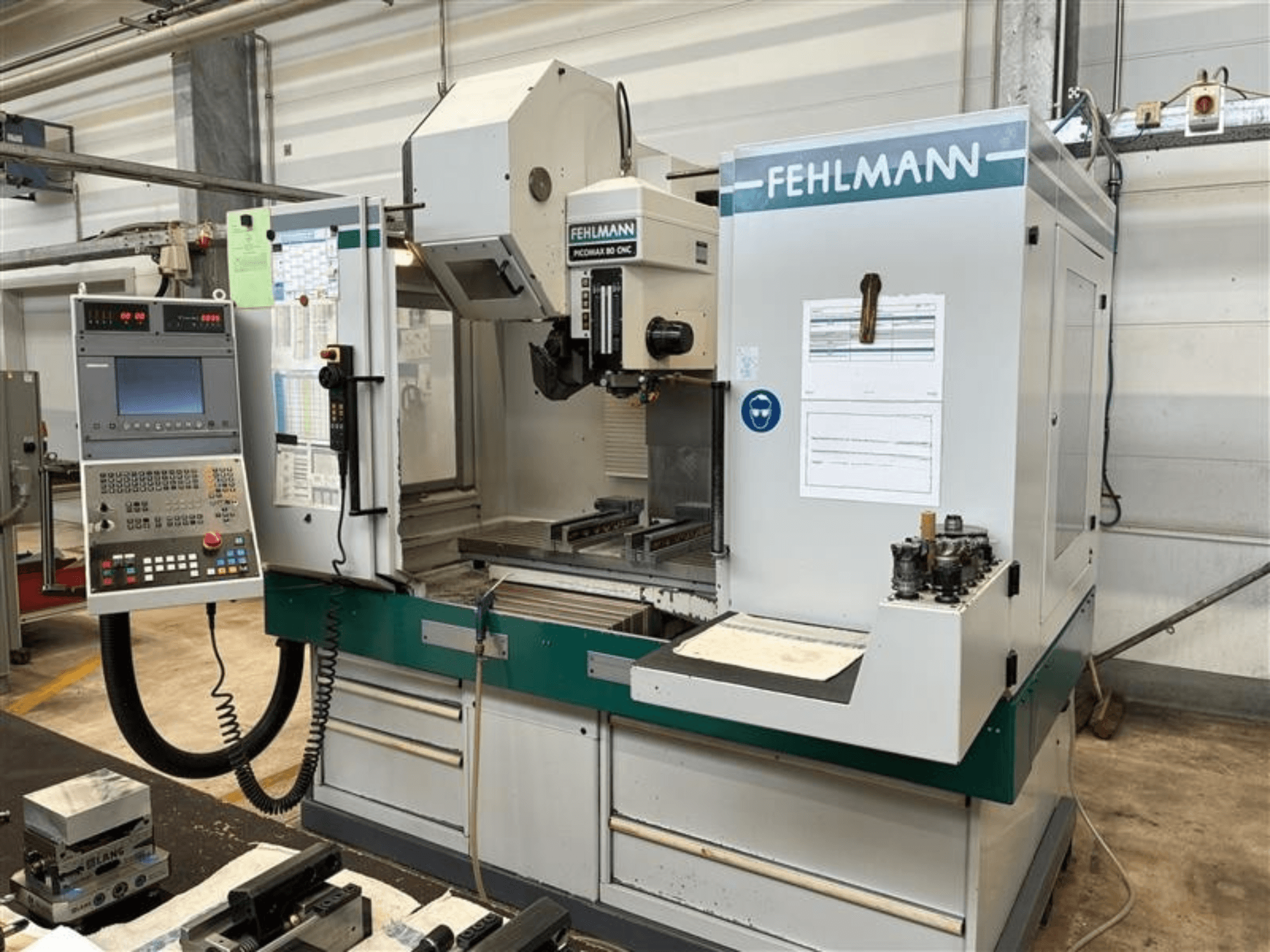

This 3-axis FEHLMANN PICOMAX 80 CNC-W 2/3 was manufactured in 2005. It features a spindle speed range of 50 - 9,200 rpm and a maximum torque of 80 Nm. The machine offers a travel of 700 x 315 mm in the X and Y axes, with a vertical adjustment of 495 mm. If you are looking to get high-quality machining capabilities, consider the FEHLMANN PICOMAX 80 CNC-W 2/3 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: FEHLMANN
  • year: 2005
  • MODEL: PICOMAX 80 CNC-W 2/3
  • production hours: 471795
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 80 CNC-W 2/3

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 426

Dimensions

  • Machine Weight: 3400 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 700 mm
  • Y-axis Travel: 315 mm

Technical Specification

  • Spindle Power: 10 kW
  • Spindle Speed: 9200 RPM

Additional Information

- Spindle Speed: 50 - 9,200 rpm

- Spindle Power (100%): 10.0 kW

- Maximum Torque: 80 Nm

- Spindle Taper: SK 30

- Automatic Tool Changer: 32 magazine positions

- Travel X/Y: 700 x 315 mm

- Vertical Adjustment W: 495 mm

- Vertical Adjustment Z (Quill): 180 mm

- Axis Feed Rate: 19,000 mm/min

- Control Voltage: 24V DC

- Operation Voltage / Power: 3 x 400V / 50Hz, 20 kVA

- Fusing: 32AT

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
