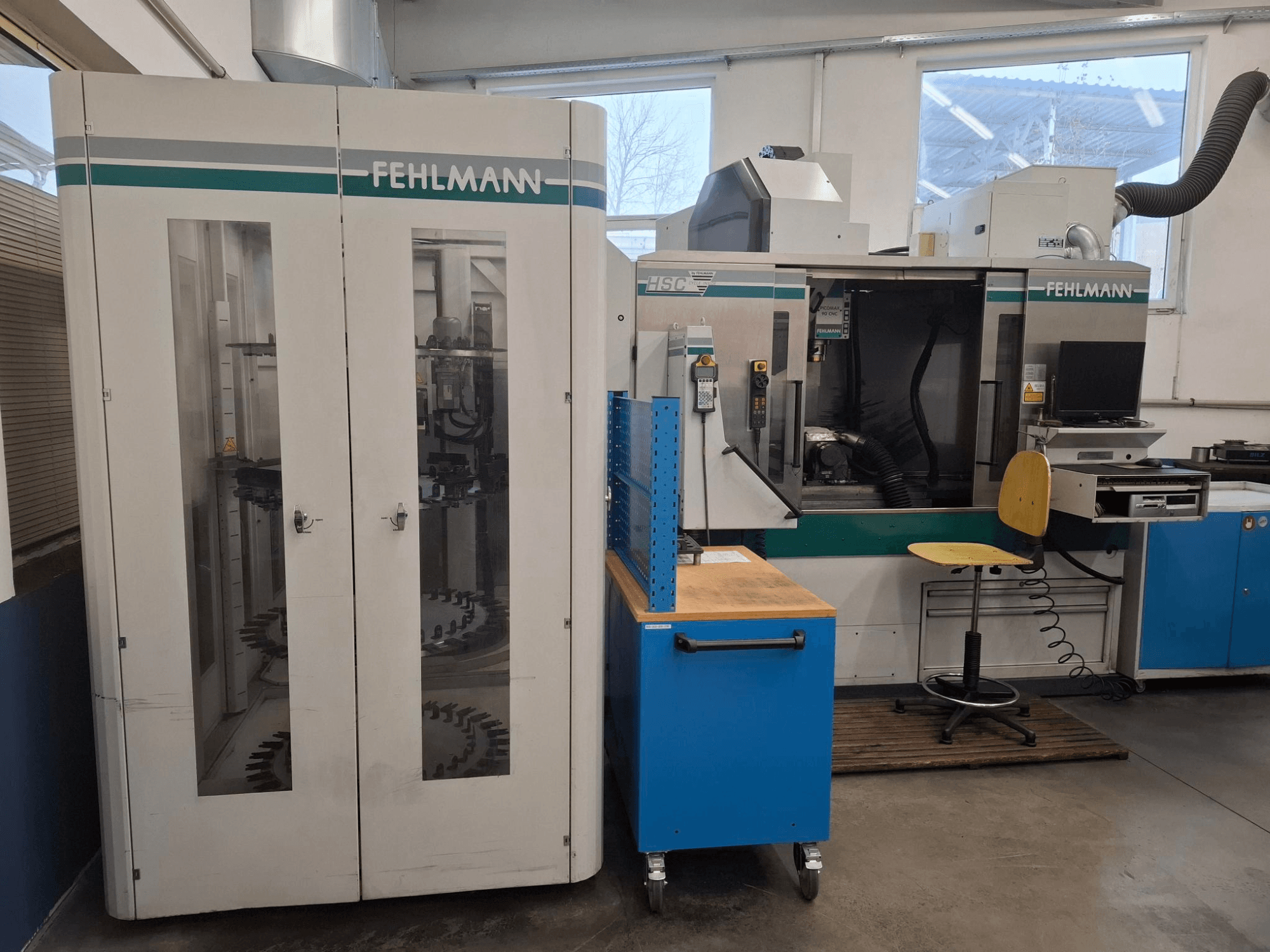

FEHLMANN - PICOMAX 90-HSC + Erowa automationCZ-MIL-FEH-2005-00001

• Table size: 1260x490 mm

Additional equipment

• incl. EROWA Robot Multi automation

• Item 20 (Article No. 3391-176): 1 Pc. Continuous Path Control Heidenhain iTNC 530M (Standard Base Version) Item 30 (Article No. 3360-181): 1 Pc. Software Option 1 for iTNC 530M (Rotary table machining in mm/min, programming of contours on the cylinder surface, tilting of the working plane, including circular interpolation in 3 axes) Item 40 (Article No. 3360-182): 1 Pc. Software Option 2 for iTNC 530M (3D machining: smooth movement, 3D tool compensation, TCPM, 5-axis linear interpolation, splines, block processing time 0.5 ms) Item 50 (Article No. 3391-211): 1 Pc. Standard Clamping System Item 60 (Article No. 3390-220): 1 Pc. Machine Table 1260x490 with 9 T-slots 12H8, 50 mm distance Item 70 (Article No. 3391-240): 1 Pc. Tool Changing System with 28 magazine slots HSK-E50 Item 80 (Article No. 3390-270): 1 Pc. Side Enclosure of the machining area made of stainless sheet metal, with wide-opening sliding doors at the front and polycarbonate panes. Incl. 2 anti-stroboscopic lights. Right side door manual or optional automatic opening. Item 90 (Article No. 3390-272): 1 Pc. Right Side Door with window, lockable Item 100 (Article No. 3390-275): 1 Pc. Automatic Enclosure Door left to P90 for workpiece loading. Incl. 2 pneumatic cylinders, guides, control valve and control circuit for CNC control. Item 110 (Article No. 3390-288): 1 Pc. Full Enclosure of the machining area towards top (32/28 tools), with lockable recess for loading crane. Item 120 (Article No. 3360-506): 1 Pc. Extended Energy Saving Function via electronic timer. Automatic standby switching of machine drives after completion of NC programs and restart of the plant. Item 130 (Article No. 3360-842): 1 Pc. Oil Mist Extraction System for machining area Item 140 (Article No. 3390-851): 1 Pc. Standard Coolant System 3 bar / 30 l/min with 2 submersible pumps, chip drawer, additional fine chip filter insert and stretch mesh filter. Coolant tank 240 l capacity. Item 150 (Article No. 5130-101 Special): 1 Pc. Preparation for Minimal Quantity Lubrication system. Hoses routed through machine head to spindle. Switchable via M-functions. Item 160 (Article No. 3363-872): 1 Pc. 3D Touch Probe System Renishaw MP 40 incl. spindle insert HSK E50, touch stylus Ø 6 mm, signal transmission wireless via infrared system. Self-calibrating with 360° radiation. Item 170 (Article No. 3390-877): 1 Pc. Laser System NT for high-precision measurement and monitoring of tools D 0.15 to 63 mm. Cycle-supported measurement of diameter and length as well as contour stability. Includes automatic alignment and checking of CNC tool table. Item 180 (Article No. 3360-918): 1 Pc. FEHLMANN HSC Settings (Cycle 327) for dynamic optimization of digital axis drives. Item 190 (Article No. 4875-114): 1 Pc. Automatic CNC Indexing and Swiveling Unit ATS 160 CNC-SDKD--ITSPC in digital execution with Erowa quick-clamp chuck ITS Power Chuck. Center height: 160 mm. Swivel range: +18° to -5°. Max. workpiece diameter: 300 mm. Max. workpiece weight: 50 kg. Swivel axis clamping torque: 1000 Nm. Indexing axis clamping torque: 600 Nm. Weight: 110 kg. Item 200 (Article No. 3390-714): 1 Pc. Machine-side preparation for mounting a CNC indexing/swiveling unit ATS 160 CNC-D to a Fehlmann Picomax 90 CNC. Item 210 (Article No. 4875-787): 1 Pc. Short Test Mandrel (60 mm) for checking device zero point. Item 220 (Article No. 4875-876): 1 Pc. Elevation for Laser Measuring System. Item 230 (Article No. 4875-950): 1 Set Fastening material for table with T-slots 12 mm. Workpiece Loading System EROWA Robot Multi (ERM): Item 240 (Article No. 5209-010): 1 Pc. EROWA Robot Multi Workpiece loading system with combinable magazines for palette types ITS50, Holder 72, ITS148, UPC. Item 250 (Article No. 5209-020): 1 Pc. Gripper Arm RCS I fixed. Item 260 (Article No. 5208-031): 1 Pc. Pneumatic Unit for controlling chuck No. 1 on machine table No. 1. Item 270 (Article No. 5209-040): 1 Pc. Gripper RCS for ITS 50. Item 280 (Article No. 5209-100): 4 Pcs. Magazine plate for ITS 50, Holder 72, upright, max. 6 plates each 30 electrode holders, recommended max. workpiece size: approx. 100 x 100 x 200. Item 290 (Article No. 5201-150): 1 Pc. Alignment Palette ITS 115. Item 300 (Article No. 3390-295): 1 Pc. Robot mounting structure with enclosure sheets, drip tray bottom and cable set. Item 310 (Article No. 5220-001): 1 Pc. FEHLMANN Milling Center Manager (MCM) Version 5 for machining centers with automatic workpiece loading. Incl. PC hardware with Windows XP. Item 320 (Article No. 5220-803): 1 Pc. Control Console MCM with lockable keyboard drawer and holder for 4 tools HSK50. HSC Machine Accessory Kit HSK-E50: Item 330 (Article No. 8079-002): 1 Pc. Calibration Pin 12/10 mm. Item 340 (Article No. 8520-000): 1 Pc. Taper Cleaner HSK 50. Graphite Dust Extraction System: Item 350 (Article No. 5002-001): 1 Pc. Industrial Vacuum Extraction System for graphite dust Type 16.2.5, Automatic. Suction turbine 3.1 kW, nominal airflow 1'680 m³/h, soundproofed to 75 dBA, 100 l tank. Item 360 (Article No. 5002-011): 1 Pc. 1 Suction point right, piping 100 mm. Item 370 (Article No. 5002-090 Special): 1 Pc. Suction point for manual cleaning of machining room. Item 380 (Article No. 3390-565): 1 Pc. Control cabinet cooling unit for PICOMAX 90.
