- ➤ Used FEHLMANN Picomax 90-M For Sale | gindumac.com

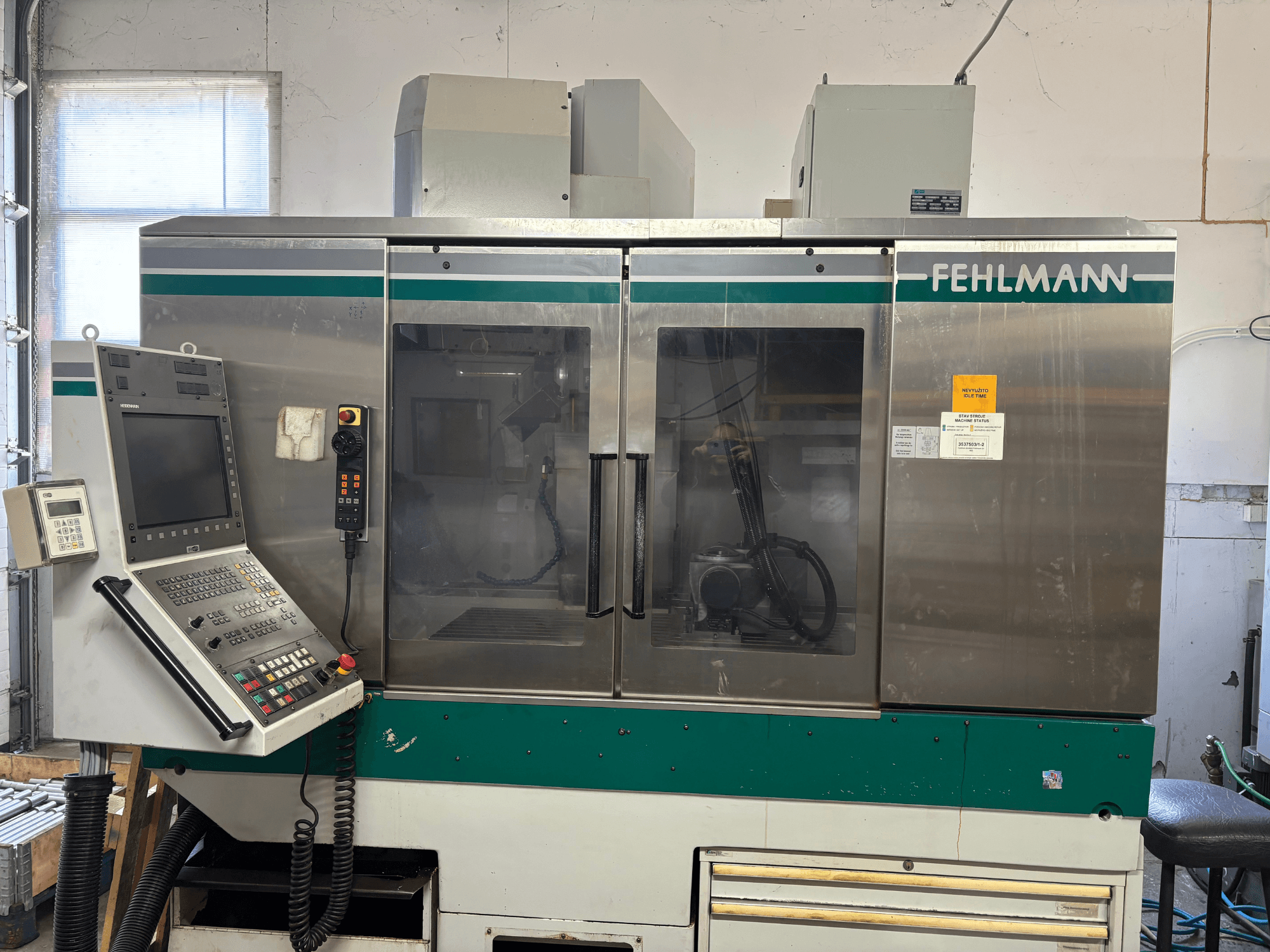

This 5-axis FEHLMANN Picomax 90-M was manufactured in 2003. It features a maximum spindle speed of 18,000 rpm and a table size of 920 x 380 mm. The machine offers impressive X-axis travel of 700 mm, Y-axis travel of 420 mm, and Z-axis travel of 610 mm, accommodating a maximum workpiece weight of 250 kg. If you are looking to get high-quality machining capabilities, consider the FEHLMANN Picomax 90-M vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FEHLMANN
- year: 2003
- MODEL: Picomax 90-M
- production hours: 56146
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - FEHLMANN Picomax 90-M
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Weight: 5100 kg
Movement
- Number of Axes: 5
- X-axis Travel: 700 mm
- Y-axis Travel: 420 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Table size: 920 × 380 mm
Distance between table and spindle: min 94 mm / max 704 mm
Max. workpiece weight on table: 250 kg
Additional equipment
Dividing head, 4th and 5th axis: FEHLMANN ATS 160
