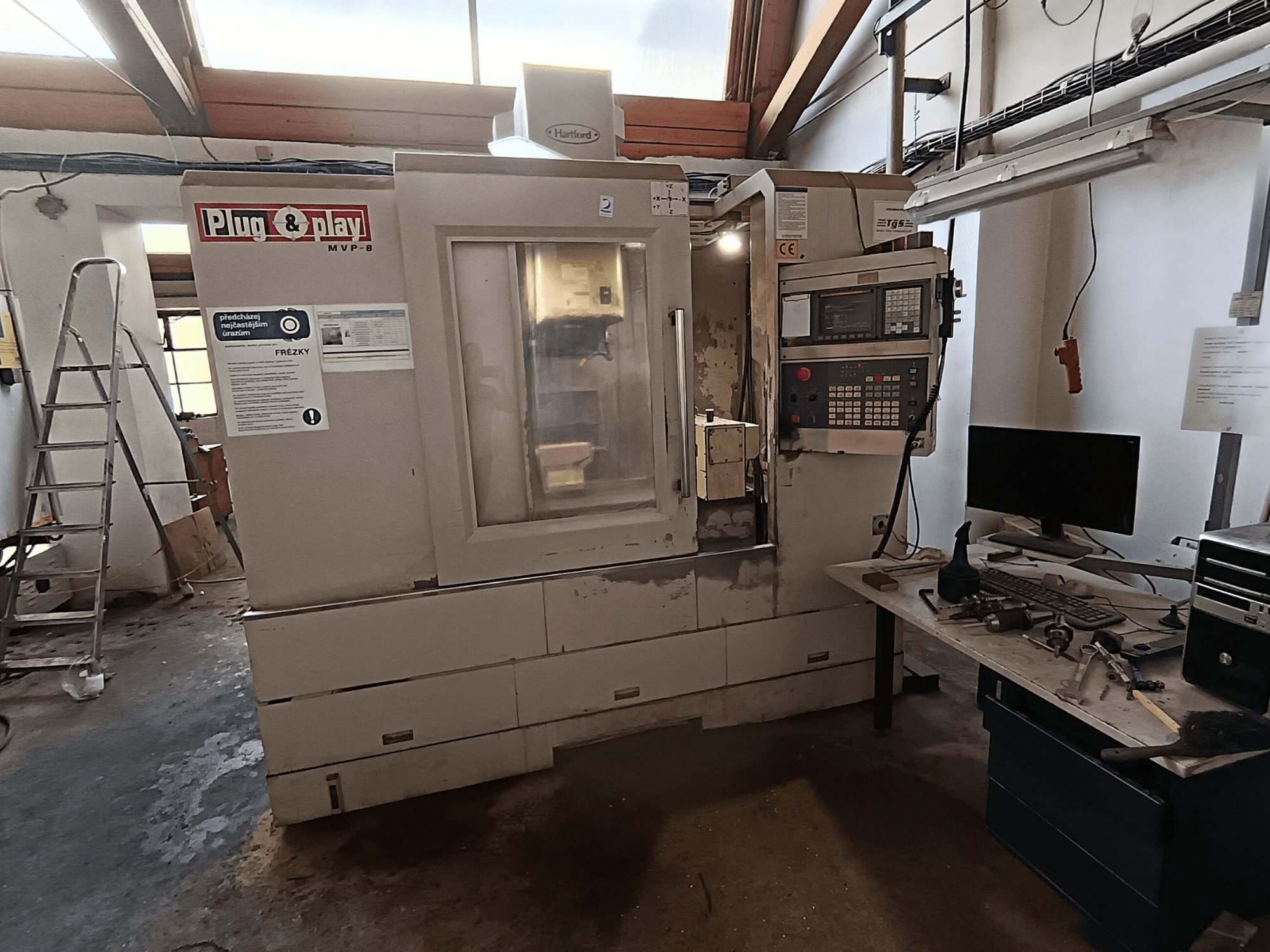

This 4-axis HARTFORD MVP-8A was manufactured in 2004. It features impressive travels of 860 mm in the X-axis, 530 mm in the Y-axis, and 630 mm in the Z-axis. The machine includes a robust table size of 1000 x 560 mm with a load capacity of 500 kg, and a maximum spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the HARTFORD MVP-8A vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HARTFORD
  • year: 2004
  • MODEL: MVP-8A
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - HARTFORD MVP-8A

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Weight: 6600 kg
  • Table Load: 500 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 860 mm
  • Y-axis Travel: 530 mm
  • Z-axis Travel: 630 mm

Technical Specification

  • Spindle Power: 11 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40
  • Tool Stations: 24

Additional Information

  • Distance table–spindle face: max. 705 mm

  • Table dimensions: 1000 × 560 mm

  • Rapid traverse (X/Y/Z): 24 / 24 / 24 m/min (linear guides)

  • Automatic tool changer (ATC): 24 positions, arm-type

  • Control system: Fanuc 21i (black and white display) + Hartrol AI100

Additional equipment

  • 4th axis rotary table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
