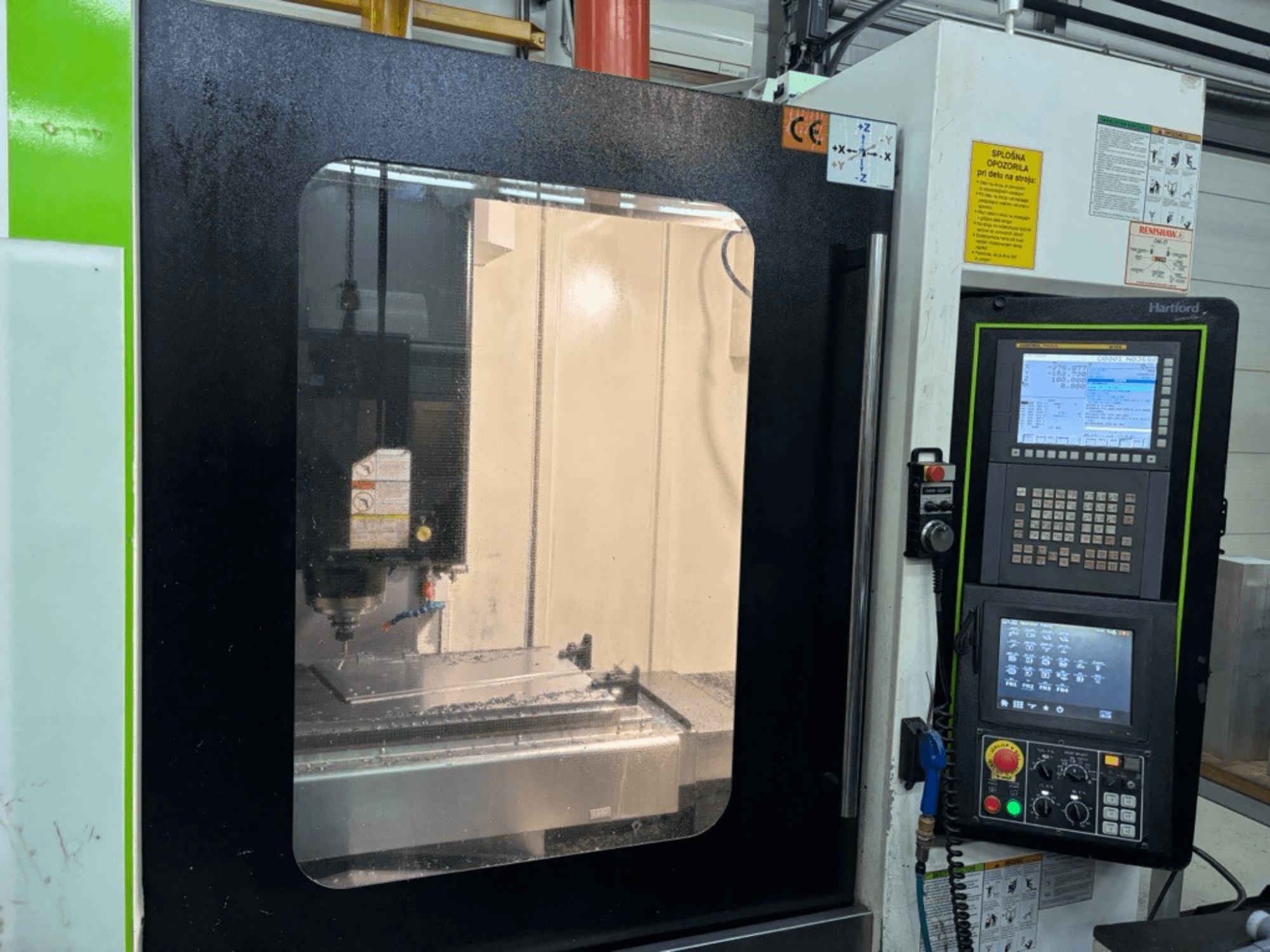

This 3-axis HARTFORD MVP-11 vertical machining centre was manufactured in 2017. It features an impressive X-axis travel of 1,020 mm, Y-axis travel of 600 mm, and Z-axis travel of 630 mm. The machine includes a robust worktable measuring 1,060 × 600 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the HARTFORD MVP-11 machine we have for sale. Contact us for further details.

Overview

  • brand: HARTFORD
  • year: 2017
  • MODEL: MVP -11
  • production hours: 3939
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - HARTFORD MVP -11

Control Unit

  • Control Brand: FANUC
  • Control Model: Fanuc 0i-MF / AI100

Dimensions

  • Machine Weight: 6800 kg
  • Table Load: 800 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 630 mm

Technical Specification

  • Max. Tool Weight: 6 kg
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 40
  • Tool Stations: 30

Additional Information

  • Country of manufacture: Taiwan

  • Worktable:

    • Table size: 1,060 × 600 mm

    • T-slots: 5

    • T-slot spacing: 100 mm

  • Automatic tool changer (ATC):

    • Tool selection: Random

    • Max tool diameter: 75 mm

    • Max tool length: 300 mm

  • Electrical and utilities:

    • Power supply: 380 V, 3-phase, 50/60 Hz

    • Power requirement: 28 kVA

    • Full-load current: 100 A

    • Short-circuit breaking capacity: 10 kA

    • Required compressed-air pressure: 6.5 kg/cm² (92 psi)

  • Operating data (as shown on control):

    • Operating time: 3,939 h 46 min 38 s

    • Workpiece counter: 98,086

    • Displayed cycle time: 12 min 32 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
