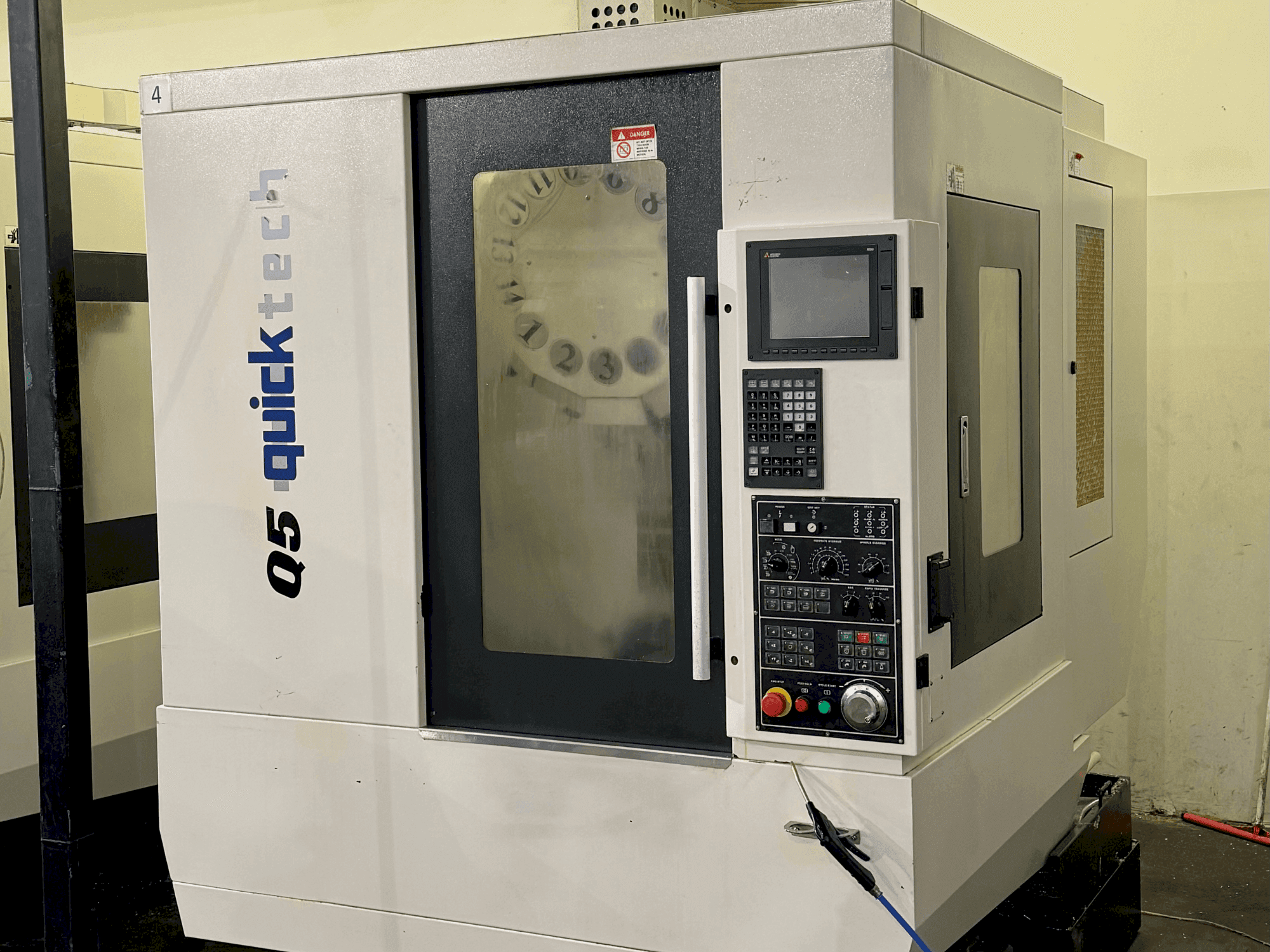

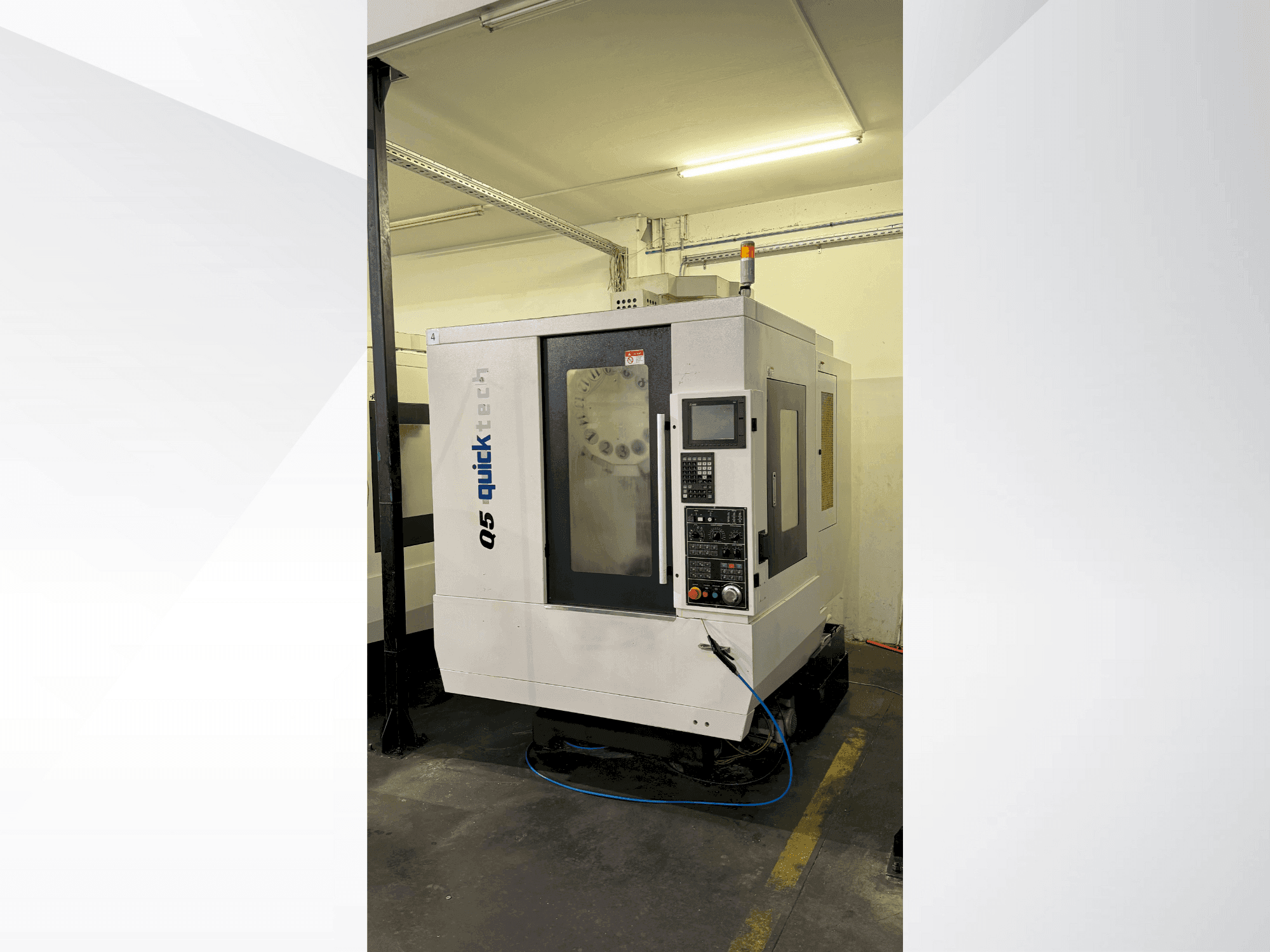

Front view of Quick-Tech Q5  machine

Quick-Tech Q5

Quick-Tech - Q5

2018

Rs. 3,305,200

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This QUICK-TECH Q5 Milling center was manufactured in 2018 in Taiwan. It is equipped with a Mitsubishi M80 control. This turning machine has a table size of 620 x 420 mm with a max. table load of 250 kg. The clamp type is BT30. The machine is still under power and can be inspected at any time. There are 4 units available of the same model and YOM at the same location.

Overview

  • brand: Quick-Tech
  • year: 2018
  • MODEL: Q5
  • production hours: 6500
  • application type: Turning
  • Location: Slovenia
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: MITSUBISHI
  • GINDUMAC ID: SI-TUR-QUI-2018-00001

Technical Information

General Data

  • Measurements width: 1600 MM
  • Measurements depth: 2100 MM
  • Measurements height: 2900 MM
  • Machine weight: 2800 kg

Control Unit

  • Brand: MITSUBISHI
  • Model: M80

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 5.5 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 MM
  • Y-AXIS Movement: 400 MM
  • Z-AXIS Movement: 300 MM

Table

  • Outer length: 620 mm
  • Outer width: 420 mm

Tools

  • Slots in storage: 14
  • Max weight: 3 kg
  • Type of tool holder: BT30

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Size of t nuts: 18x3x125 mm
      • - Distance from the table to the clamp: 200-500mm
      • - Clamp type: bt30
      • - Transmission: belt
      • - High speed x/y/z axes: 48m/min
      • - Ball spindles: fi32/p16/c3
      • - Linear carriages: x and y axis width: 30mm, z axis width: 35mm
      • - Direct axle transmission (motor/ball spindle)

    Extra information

    • - Machine is still under power and can be inspected at any time. There are 4 units of this model and YOM available. The only difference is that they have different working hours. Number of working hours: CENTER 1: 6500h, CENTER 2: 6800h, CENTRE 3: 6400h and CENTRE 4: 8400h. In the photo gallery you see only one machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
