DOOSAN - DNM 5700SI-MIL-DOO-2021-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DOOSAN dnm 5700 For Sale | gindumac.com
This 4-axis DOOSAN DNM 5700 was manufactured in 2021, 3 units available. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 570 mm, and Z-axis travel of 510 mm. The machine is equipped with a 30-position tool magazine and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 5700 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2021
- MODEL: DNM 5700
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 5700
Control Unit
- Control Brand: FANUC
Movement
- Number of Axes: 4
- X-axis Travel: 1050 mm
- Y-axis Travel: 570 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
- Tool Stations: 30
Additional Information
3 units available
Condition: Excellent (used)
Functionality: Fully functional
15" display
2 MB part program storage / 1,000 programs
Rapid traverse X-axis: 36 m/min
Rapid traverse Y-axis: 36 m/min
Rapid traverse Z-axis: 30 m/min
Spindle torque: 118 Nm
Through-spindle coolant: 12 bar
Ethernet connection
Ball screw nut cooling
Tool breakage detection in magazine
Automatic doors
Standard-height column
Hydraulic system 3A + 1B
Seat air check
Coolant level sensor
Additional equipment

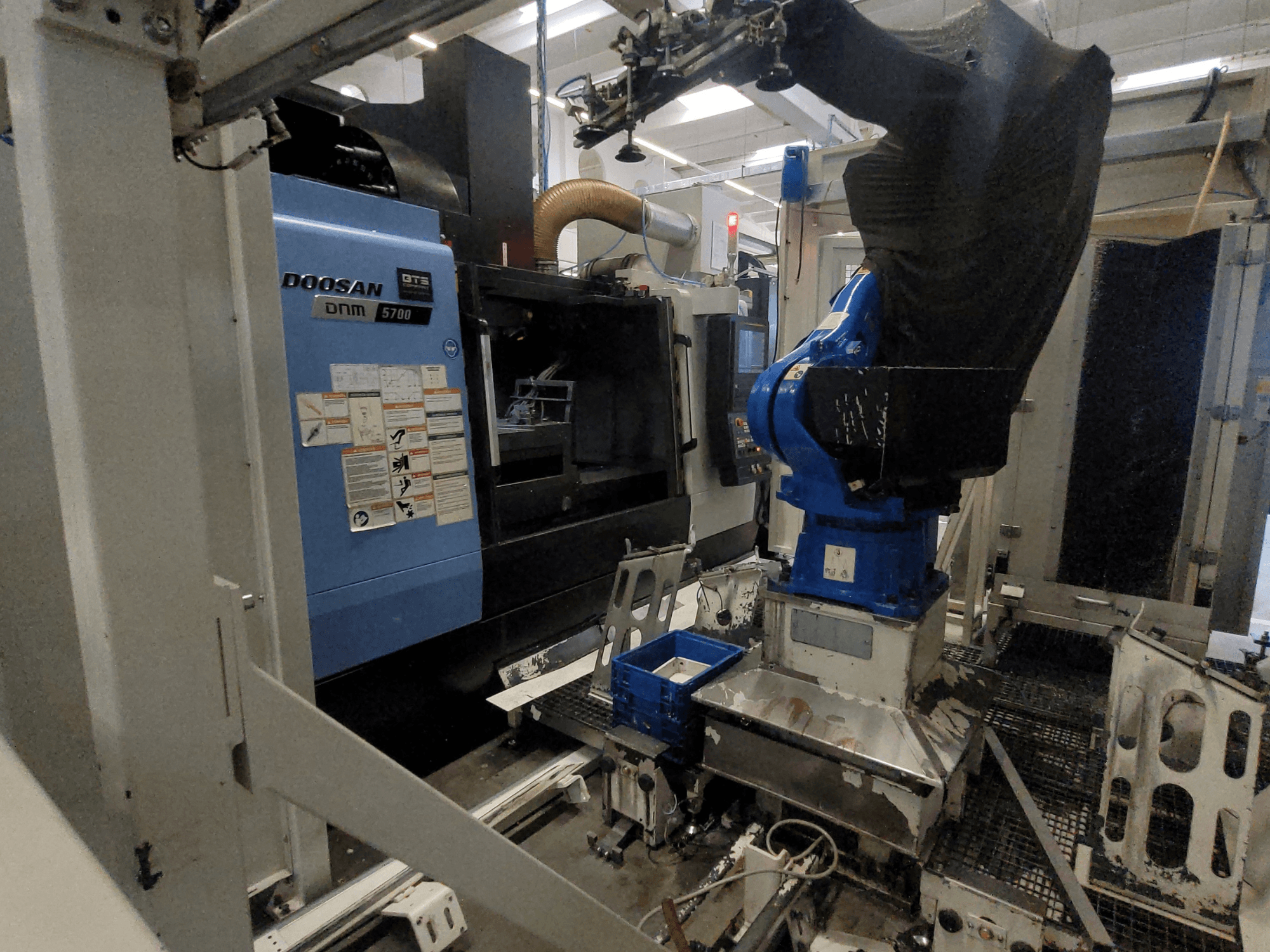

Robot interface
4th axis
Hiwin RCV 250 rotary table
HIWIN RTS 250 support
4th-axis fixture support hydraulic
LNS MH500 chip conveyor
Oil skimmer, belt type
Coolant gun
Mist collector interface
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
