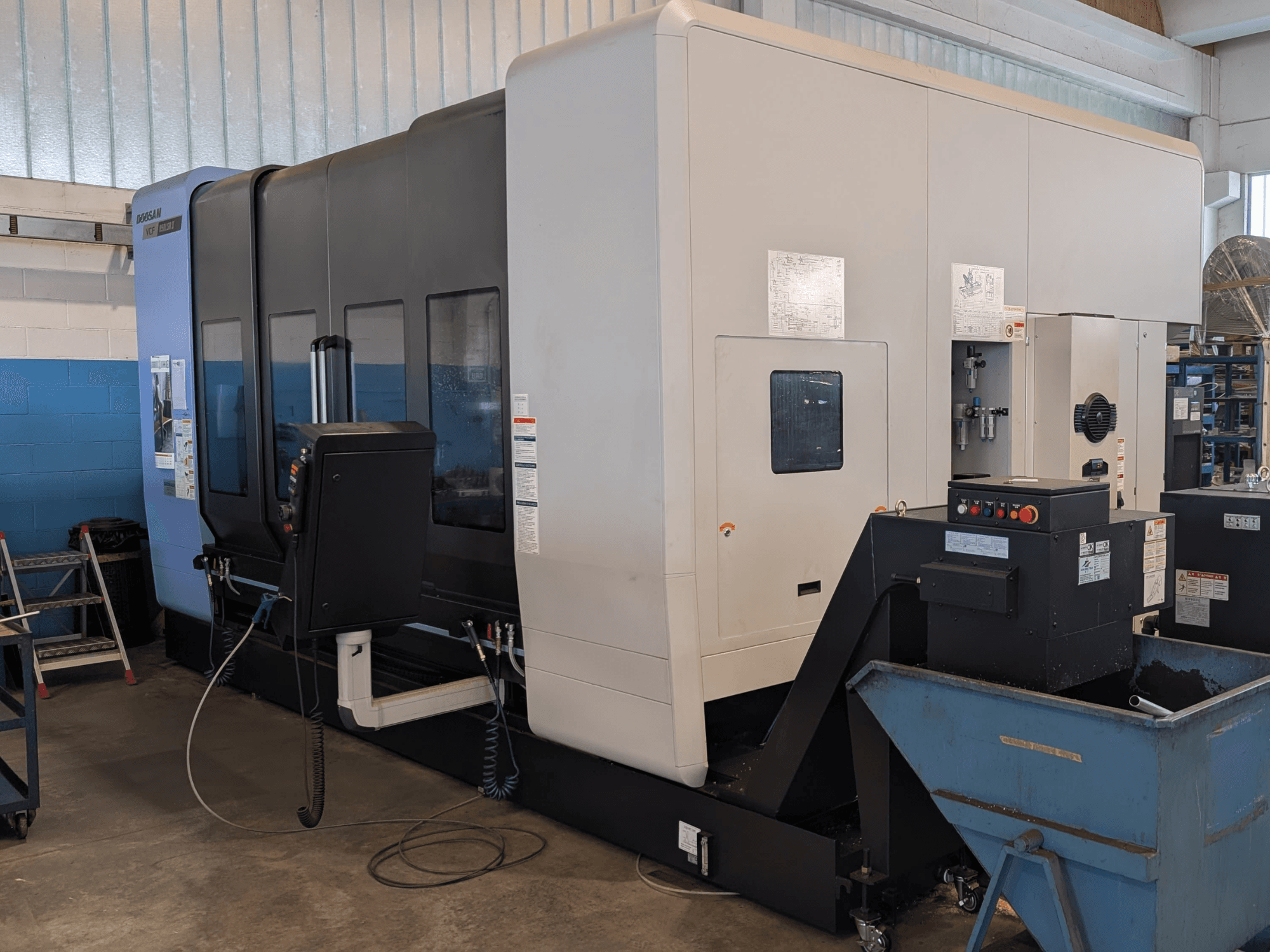

DOOSAN - VCF850LSR-II IT-MIL-DOO-2021-00002

• Operating hours: approx. 2,500 effective hours

• Travels:

  • B-axis: ±110°

  • C-axis: ±360°

• Rapid traverse (X/Y/Z): 40 / 40 / 40 m/min

• Max working feed (X/Y/Z): 20,000 mm/min

• Spindle:

  • Power: 24 / 30 kW

  • Max torque: 121 / 155 Nm

  • Taper: ISO 40, double-contact

• Tool magazine:

  • Capacity: 60 tools

  • Max tool dia.: 76 mm (130 mm with adjacent positions free)

  • Max tool length: 300 mm

  • Tool-to-tool: 5.5 s

  • Chip-to-chip: 13 s

• Workholding/table:

  • Fixed table: 3,500 × 870 mm, max load 3,500 kg

  • Rotary table: Ø 800 mm, max load 1,200 kg

  • Max workpiece Ø: 1,050 mm

  • Max workpiece height: 680 mm (vertical) / 1,095 mm (horizontal)

• Measurement: Absolute linear scales on X/Y/Z

• Features: Removable central door; Pendulum machining capability

• Utilities:

  • Electrical: 400 V / 3 phases + ground

  • Required power: 63 kVA

  • Compressed air: 6 bar

  • Coolant tank capacity: 560 l

• Condition: Very well maintained

• Operational status: In production / under power

• Extras: Videos with timestamp available on request

• Transport: Reportedly can be transported in one piece

Additional equipment

• High-pressure through-spindle coolant, 70 bar

• Cyclone coolant filtration

• Chip conveyor

• Renishaw RMP-60 workpiece probe

• Renishaw RTS tool setting system

• Original kinematic calibration ball

• Heidenhain Advanced Function Set 1

• Heidenhain Advanced Function Set 2

• Dynamic Collision Monitoring (DCM)

• Lift-Off function

• DXF converter

• 3D toolpath visualization

• 3D machining simulation

• CAD Viewer

• Automatic lubrication system

• Hydraulic unit

• LED work area lighting

• 3-color alarm lamp

• CE documentation

• Machine manuals
