DOOSAN - DNM 5700 SI-MIL-DOO-2022-00001

Name: DOOSAN DNM 5700
Brand: DOOSAN
SKU: SI-MIL-DOO-2022-00001
Price: 13305606 INR
Availability: InStock

Rs. 13,305,606

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 5700 For Sale | gindumac.com

Show in original language

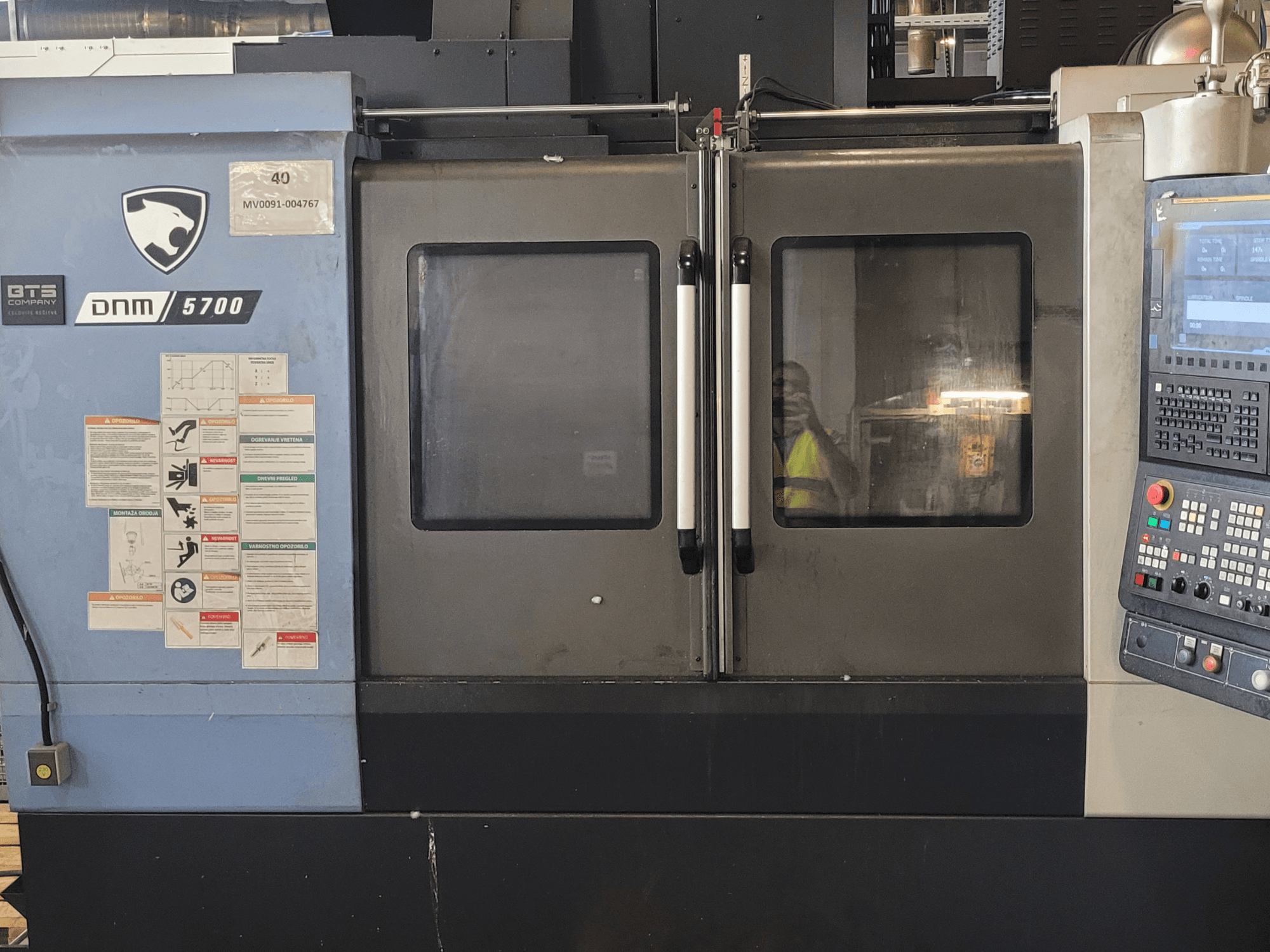

This 4-axis DOOSAN DNM 5700 was manufactured in 2022. It features an X-axis travel of 1,050 mm, Y-axis travel of 570 mm, and Z-axis travel of 510 mm. The machine is equipped with a spindle speed of 12,000 rpm and a tool magazine capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 5700 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2022
MODEL: DNM 5700
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
Tool Stations: 30

Additional Information

Rapid traverse X/Y/Z: 36 / 36 / 30 m/min
Spindle torque: 118 Nm
Through-spindle coolant: 12 bar
Power supply: 380 V, 3-phase, 50/60 Hz
Standard-height column
Tool breakage detection
Ball screw nut cooling
Coolant level sensor

Additional equipment

4th axis
Hydraulic system (3A + 1B)
Automatic doors
Robot interface
Chip conveyor
Oil skimmer
Mist collector interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
