➤ Used DOOSAN DNM 6700L For Sale | gindumac.com

Show in original language

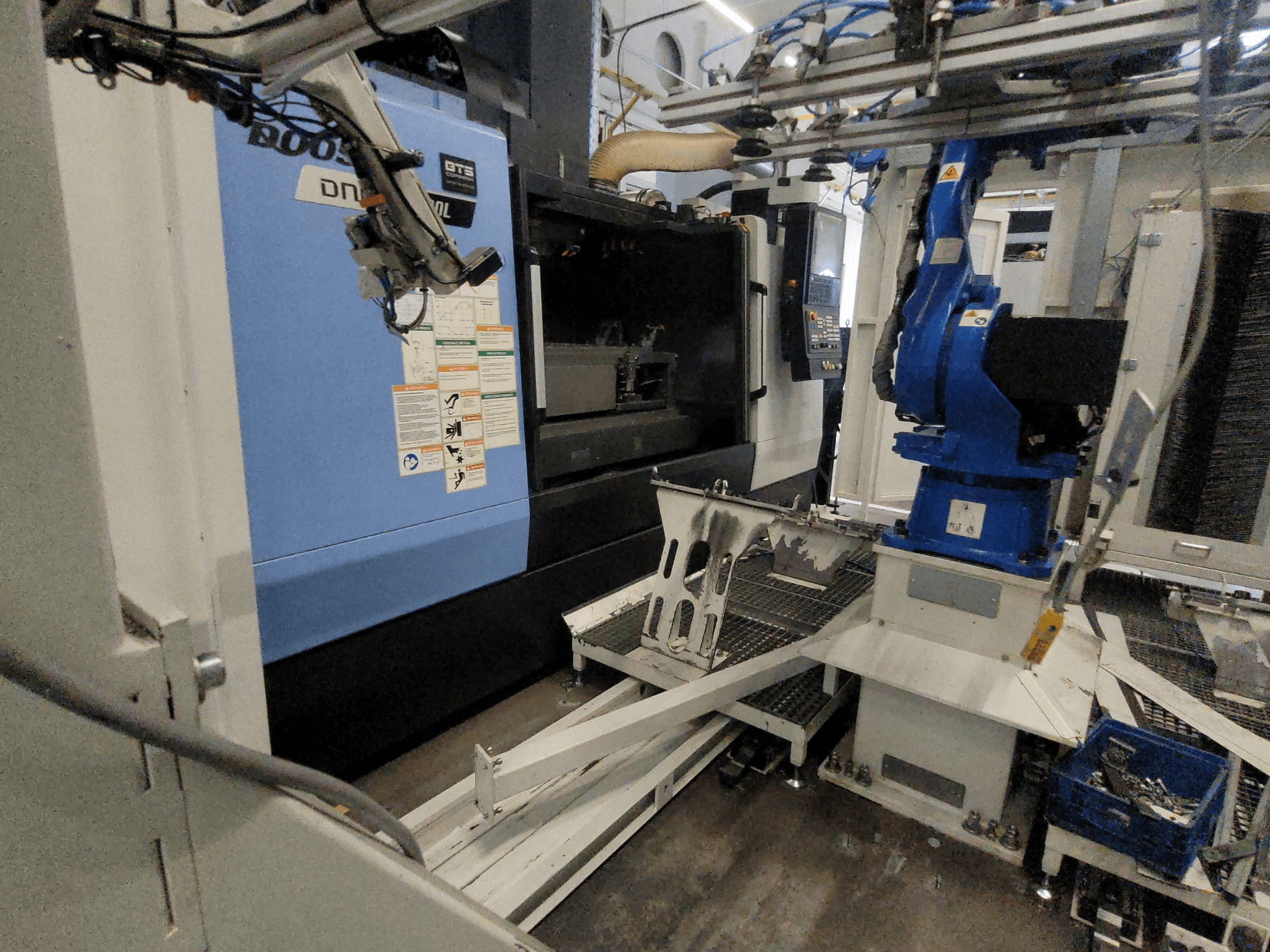

This 3-axis DOOSAN DNM 6700L was manufactured in 2021. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 670 mm, and Z-axis travel of 625 mm. The machine is equipped with a 30-position tool magazine and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 6700L vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2021
MODEL: DNM 6700L
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700L

Control Unit

Control Brand: FANUC
Control Model: I Series

Movement

Number of Axes: 3
X-axis Travel: 1500 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
Tool Stations: 30

Additional Information

Display: 15"
Program memory: 2 MB / up to 1,000 programs
Rapid traverse: X/Y 36 m/min, Z 30 m/min
Spindle torque: 118 Nm
Through-spindle coolant: 12 bar
Automatic doors
Robot interface
Tool breakage detection in tool magazine
Ball screw nut cooling
Ethernet connection
Air clamp interface on table
Seat air check
Coolant level sensor
Mist collector interface
Coolant gun
Condition: Used, excellent condition, fully functional and regularly maintained
Quantity: 4 units available

Additional equipment

Chip conveyor LNS MH500 (right side)
Belt-type oil skimmer
Vacuum pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
