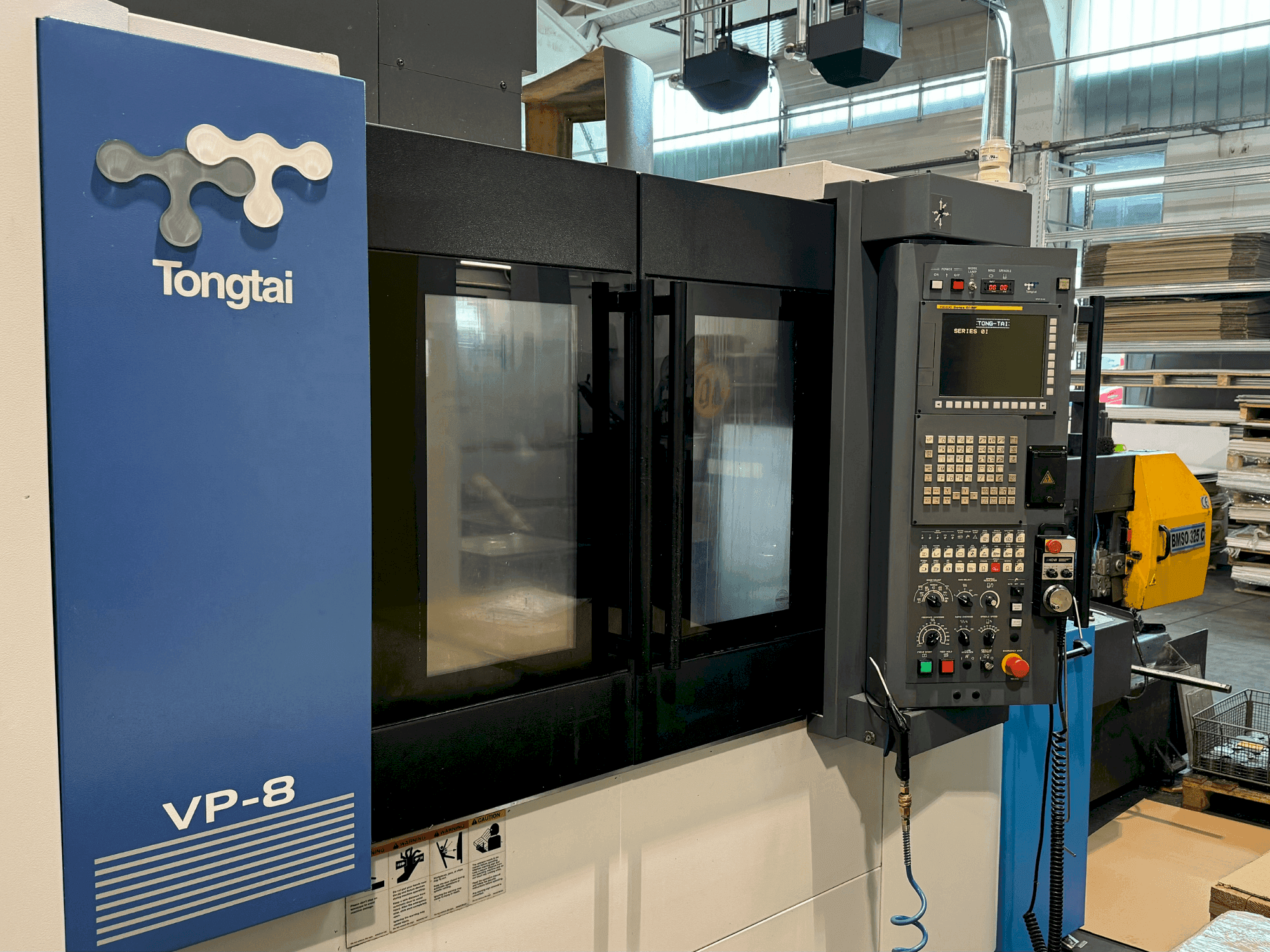

Front view of Tongtai VP-8  machine

Tongtai - VP-8SI-MIL-TON-2016-00001

Rs. 4,902,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TONGTAI VP-8 Vertical Machining Centre was manufactured in 2016 in Taiwan. It has a table size of 900 x 510 mm with a max. table load of 500 kg and is equipped with a FANUC control. This 3-axis machining centre ( X/Y/Z axis travel: 820/510/535 mm) has an excellent condition for a used machine and can be visited at any time.

Overview

  • brand: Tongtai
  • year: 2016
  • MODEL: VP-8
  • production hours: 2450
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Tongtai VP-8

Control Unit

  • Brand: FANUC

Main drive

  • Spindle speed range: 15000 1/MIN
  • Spindle motor power: 15/11/7.5
  • Tool taper: 7/24 Taper No. 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 820 MM
  • X-AXIS Rapid traverse: 48
  • Y-AXIS Movement: 510 MM
  • Y-AXIS Rapid traverse: 48
  • Z-AXIS Movement: 535 MM
  • Z-AXIS Rapid traverse: 36

Table

  • Outer length: 900 mm
  • Outer width: 510 mm
  • Table load: 500 kg

Additional Information

    Extra information

    • - Excellent condition for a used machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
