FEHLMANN - PICOMAX 60 HSCCZ-MIL-FEH-2008-00001

Name: FEHLMANN PICOMAX 60 HSC
Brand: FEHLMANN
SKU: CZ-MIL-FEH-2008-00001
Price: 3405918 INR
Availability: InStock

Rs. 3,405,918

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FEHLMANN PICOMAX 60 HSC For Sale | gindumac.com

Show in original language

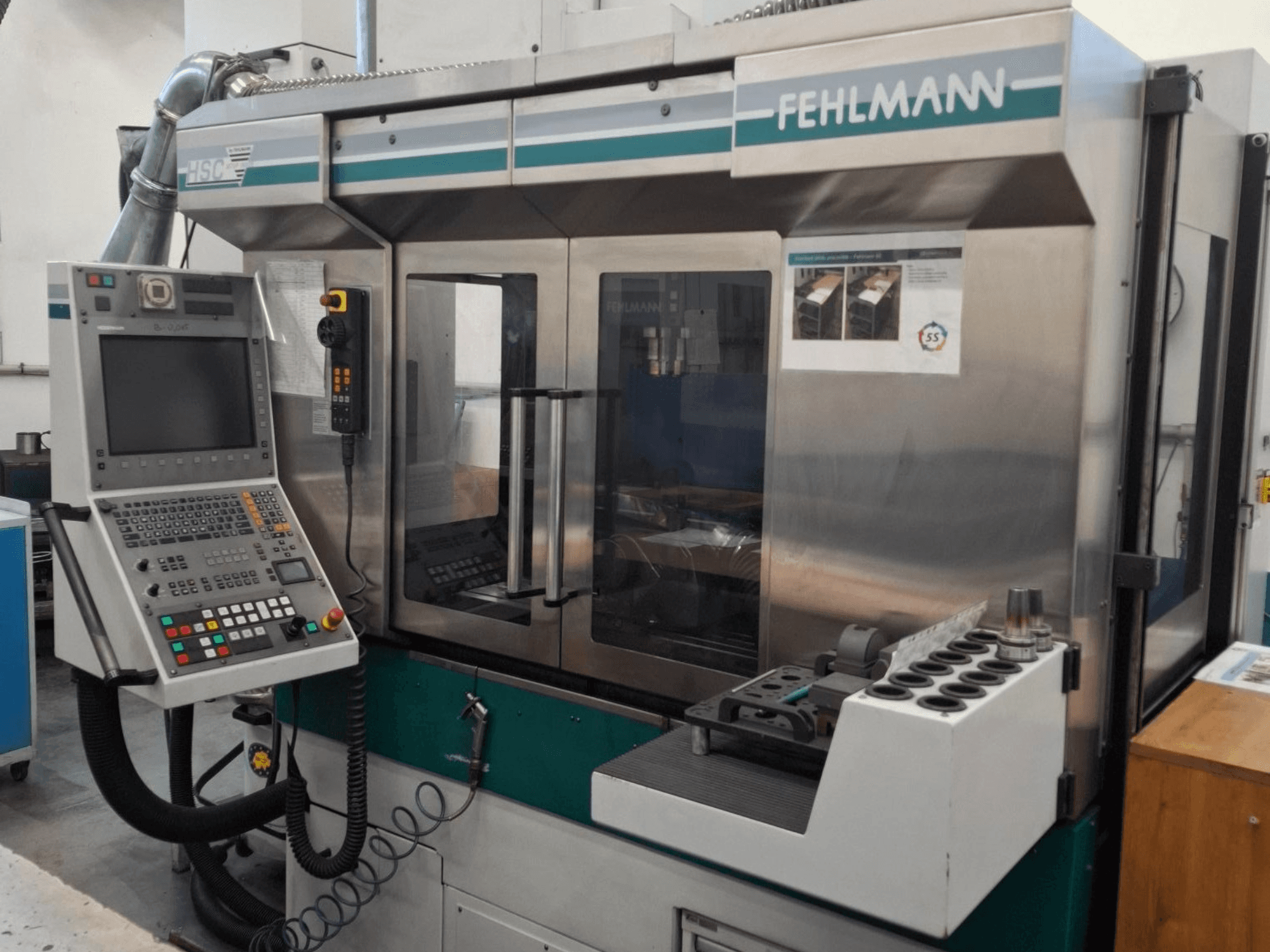

This 5s FEHLMANN PICOMAX 60 HSC vertical machining centre was manufactured in 2008. It features a table size of 920x380 mm and offers impressive spindle speeds of up to 36,000 rpm. With a robust weight of 3750 kg, this machine is designed for precision and durability. If you are looking to get high-quality machining capabilities, consider the FEHLMANN PICOMAX 60-HSC machine we have for sale. Contact us for further details.

Overview

brand: FEHLMANN
year: 2008
MODEL: PICOMAX 60 HSC
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 60 HSC

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530

Dimensions

Machine Weight: 3750 kg
Table Length: 920 mm
Table Width: 380 mm

Movement

Number of Axes: 5
X-axis Travel: 500 mm
Y-axis Travel: 350 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Power: 17.8 kW
Spindle Speed: 36000 RPM
Taper Size: HSK 50
Tool Stations: 28

Additional Information

Table size: 920x380 mm
Feed Rate Range: 1 - 20,000 mm/min
Spindle replaced in 2015
Software Options: Option 1 (Rotary table machining, cylinder contour programming, swiveling plane), Option 2 (3D machining, TCPM, 5-axis linear/spline interpolation) - CNC Dividing Unit: ATS 160 CNC-SDK (automatic CNC dividing and swiveling unit, 2-axis simultaneous interpolation) - Workpiece Loading System: EROWA EasyHand with 60 ITS50 holder capacity (Max workpiece dim: D 172 x 320 mm) - Process Monitoring & Measuring: Renishaw MP 40 3D touch probe, Renishaw NT laser system for tool measuring (D 0.15 to 63 mm) - Dust/Graphite Extraction System: Industrial dust extractor Type 16.2.5 (3.1 kW turbine, 1,680 m³/h capacity, 100 l tank) - Additional Equipment: Enclosure with sliding doors & polycarbonate windows, enclosure top cover, minimal quantity lubrication system, oil mist extraction, switch cabinet cooling device, chip tray, coolant spray gun, handbox

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
