➤ Used Röders TEC RHP 500 For Sale | gindumac.com

Show in original language

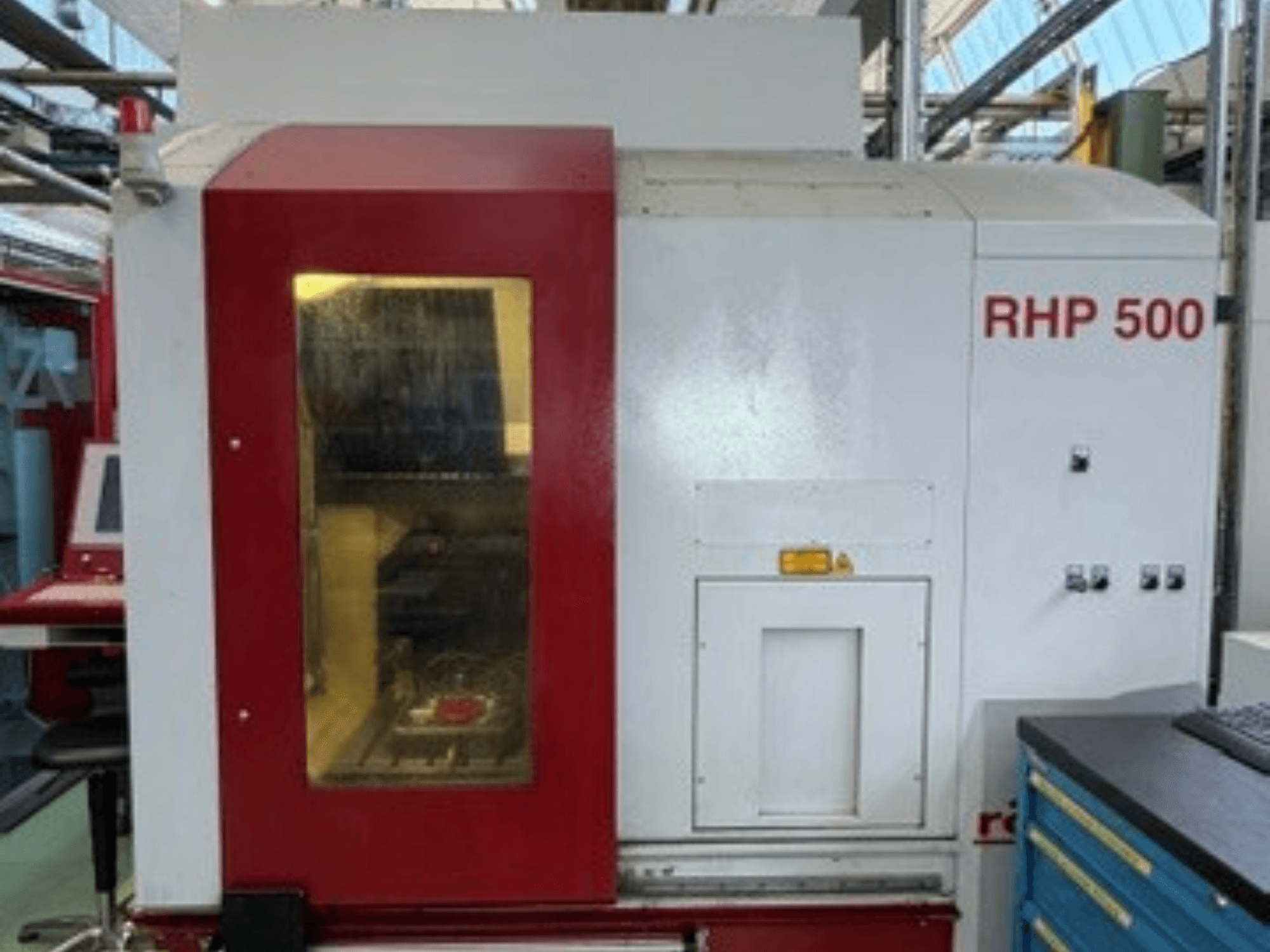

This 3-axis Röders TEC RHP 500 was manufactured in 2006. It features a high spindle speed of 42,000 rpm and a tool magazine capacity of 42 slots. The machine is equipped with hydrostatic X, Y & Z axes and includes a coordinate grinding package. If you are looking to get high-quality machining capabilities, consider the Röders TEC RHP 500 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Röders TEC
year: 2006
MODEL: RHP 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Röders TEC RHP 500

Dimensions

Machine Weight: 9500 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 45042 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Speed: 42000 RPM
Taper Size: HSK 40

Additional Information

- Measuring Probe: Renishaw OMP400

- Electrical Connection: 400 V / 44 kVA

- Current Consumption (Max): 63 A

- Max Fuse Rating: 63 A

- Compressed Air Connection: 6.5 bar / 600 l/min

- Weight: 9,500 kg

- Hydrostatic X, Y & Z axes, coordinate grinding package, Heidenhain cycles, Kraft&Bauer CO2 fire extinguishing system, LTA Industrial Air Cleaning system, Lahntechnik spindle cooling unit

- Without oil filter system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
