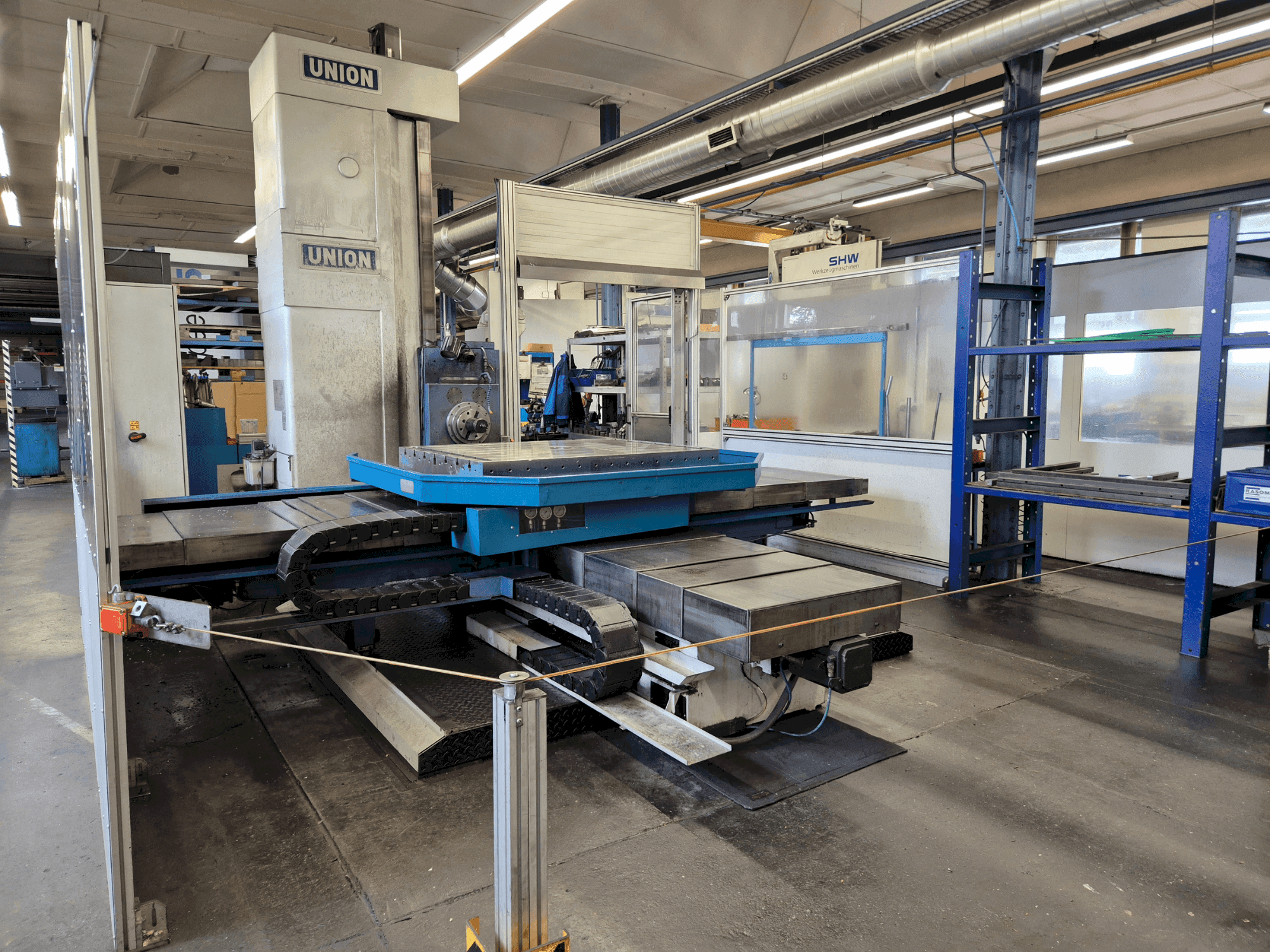

This UNION T105 horizontal machining center was manufactured in 1999. It features a working area with a machining height of 1600 mm, width of 2000 mm, and longitudinal table movement of 1600 mm. The drill spindle diameter is 105 mm, and it includes a Heidenhain TNC 426 control system. The table swivels through 360° with a 1° pitch. Consider the opportunity to buy this UNION T105 horizontal machining center. Contact us for more information.

Overview

brand: UNION
year: 1999
MODEL: T105
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - UNION T105

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Movement

Number of Axes: 3
X-axis Travel: 1600 mm
Y-axis Travel: 2000 mm
Z-axis Travel: 1600 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Drilling spindle movement w-axis: 710 mm
Clamping surface: 1200 x 1500 mm
Swivel capability: 360°/ 1° pitch
Positioning and repeat accuracy: +/- 0. 025 mm
Four-sided machining: possible

Extra Information

Machine still under power / Y-Axis (Vertical movement) 1600mm/ W-Axis (Boring spindle movement) 700mm/ Lowest position of the boring spindle center above the table center 0mm/ max. Feed force Y 16000 kN/ max. Feed force W16000 kN/ Feed speed 2...4000 mm/min/ Rapid traverse speed Y 6 m/min/ Rapid traverse speed W 4 m/min/ Boring spindle diameter105mm/ Number of gear stages 2/ Speed range I. Gear stage min⁻¹5...630/ Speed range II. Gear stagemin⁻¹631...2000/ Main drive power (S1-Operation) 22kW/ max. Torque on the spindle (S1-Operation) 1327 Nm/ max. Torque on the spindle (S6-Operation, 60% ED) 2000 Nm/ Space requirement, L x W x H mm see installation plan/ Net weight (above version) approx. 17 200 kg/ Connection values, electrical: Total power 63 kVa/ Pre-fuse A125/ Rated current A92/ Cross-section of the supply line 50 mm²/ Operating voltage, machine/control cabinet/sockets 400/230V +6/-10%/ Frequency Hz50/ Control voltage 24V ±10%/ Connection control cabinet lighting and socket A 10/ Protection class machine IP 54/ Protection class control cabinetIP 54/ Y-Axis (Vertical movement) 1600mm/ W-Axis (Boring spindle movement) 700mm/ Lowest position of the boring spindle center above the table center 0mm/ max. Feed force Y 16000kN/ max. Feed force W 16000kN/ Feed speed 2...4000 mm/min/ Rapid traverse speed Y 6 m/min/ Rapid traverse speed W 4 m/min/ Boring spindle diameter 105mm/ Number of gear stages 2/ Speed range I. Gear stage min⁻¹5...630// Speed range II. Gear stage min⁻¹631...2000/ Main drive power (S1-Operation) 22kW max./ Torque on the spindle (S1-Operation) 1327 Nm max./ Torque on the spindle (S6-Operation, 60% ED) 2000 Nm
