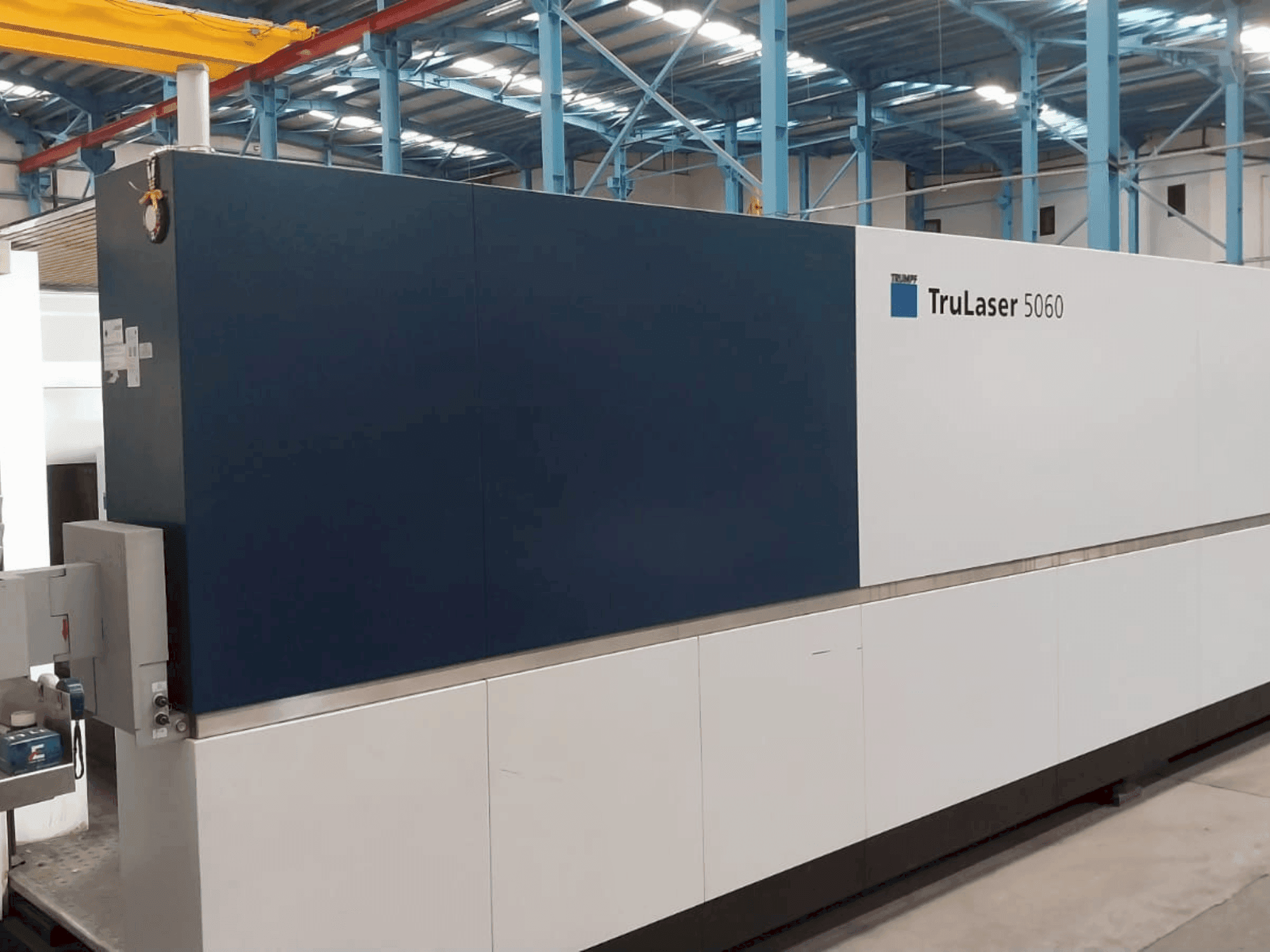

Front view of TRUMPF TruLaser 5060 Fiber 10 kW machine
Front view of TRUMPF TruLaser 5060 Fiber 10 kW machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser 5060 Fiber 10 kWTR-CUT-TRU-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This fiber laser cutting machine was manufactured in 2020. The TRUMPF TruLaser 5060 Fiber 10 kW features a robust closed machine frame with integrated laser unit, Siemens 840 D control, and a powerful 10,000 Watt solid-state laser. It handles steel up to 30 mm, stainless steel up to 40 mm, and aluminium up to 30 mm efficiently. Ideal for high-precision cutting, the machine we have for sale includes an automatic pallet changer and advanced safety features. Contact us for further details regarding this fiber laser cutting machine.

Overview

  • brand: TRUMPF
  • year: 2020
  • MODEL: TruLaser 5060 Fiber 10 kW
  • application type: Cutting
  • Location: Turkey
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5060 Fiber 10 kW

General Data

  • Measurements width: 15500 mm
  • Measurements depth: 6373 mm
  • Measurements height: 2200 mm
  • Machine weight: 18500 kg

Control Unit

  • Model: 840 D
  • Brand: SIEMENS

Main drive

  • Laserpower: 10000 Watt KW

Movement

  • X-AXIS Movement: 6000 mm
  • Y-AXIS Movement: 2000 mm

Additional Information

Machine Benefits

Technical Machine Benefits

  • Max. Steel: 30 mm
  • Max. Stainless steel: 40 mm
  • Max. Aluminium: 30 mm
  • Max. Copper: 16 mm
  • Max. Brass: 12. 7 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
