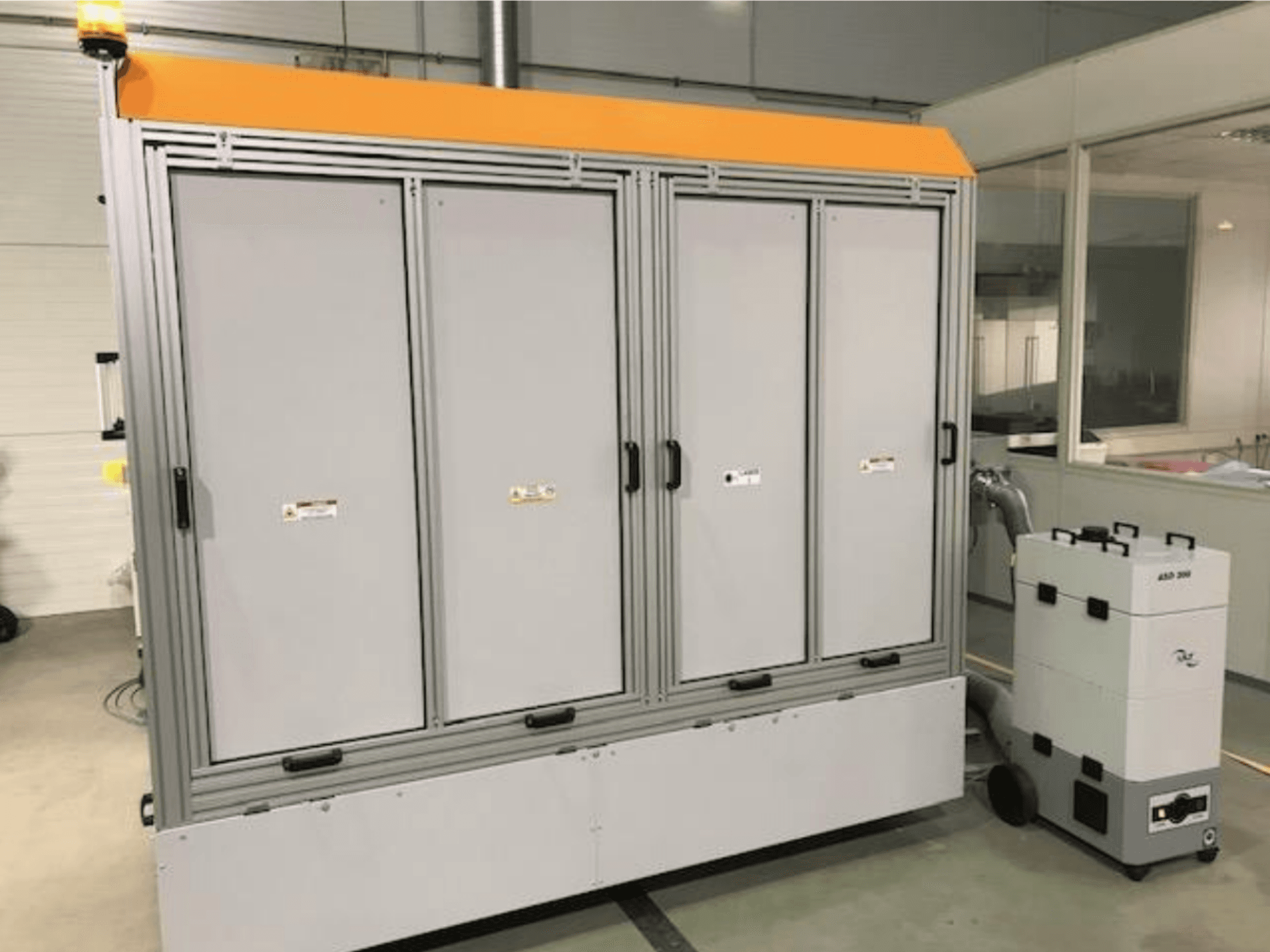

4JET - Pearl MDE-CUT-4JE-2020-00001

• Wavelength: 1064 nm

• Laser Output (Max): 80 W

• Measured Laser Power (max): 80 W

• Pulse Energy (Max): 1.5 mJ

• Voltage: 400 VAC (3P/N/PE)

• Frequency: 50/60 Hz

• Nominal Current: 63 A

• Base Area: 2400 x 2620 mm

• Total Weight: approx. 8 t

• Area Load: 2 t/m²

• Point Load: 1 t (8 feet)

• Substrate Holder Sizes: 740 x 520 mm or 370 x 520 mm

• Compressed Air: 6 bar, average flow 35 l/min

• Exhaust Air (Filtered): H13 filter class

• Included component: Variable control panel

Additional equipment

• ASD 300 extraction unit

• Spare parts package:

  • Mirror/Spiegel 25,4mm (Art.-Nr. 16149) – Menge: 3,00 Stk.

  • Lens-/Linse f=75 mm (Art.-Nr. 16150) – Menge: 1,00 Stk.

  • Lense / Linse, f = -30 mm (Art.-Nr. 16151) – Menge: 1,00 Stk.

  • rhothor smart deflector with Y-mirror (Art.-Nr. 16152) – Für Apertur 15mm; SiC; Wellenlänge 532nm; Menge: 1,00 Stk.

  • rhothor™ smart deflector with X-mirror (Art.-Nr. 15444) – Für Apertur 15mm; SiC; Wellenlänge 532nm; Menge: 1,00 Stk.

  • Lense / Linse f=100.0 mm (Art.-Nr. 16153) – Menge: 1,00 Stk.

  • Notch Filter Ø25 mm (Art.-Nr. 16154) – Menge: 1,00 Stk.

  • Mirror / Spiegel Ø1" Protected Silver (Art.-Nr. 16155) – Menge: 1,00 Stk.

  • Mirror/Spiegel 2" HR532/45 PW2037C flat (Art.-Nr. 00000000307) – Menge: 3,00 Stk.

  • beam expander / Strahlaufweiter (Art.-Nr. 13487) – Menge: 1,00 Stk.

  • Lense F-Theta f 100mm / Linse F-Theta f 100mm (Art.-Nr. 15145) – Menge: 1,00 Stk.
