TRUMPF - TruLaser Cell 7040DE-CUT-TRU-2008-00001

Rs. 6,790,892
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

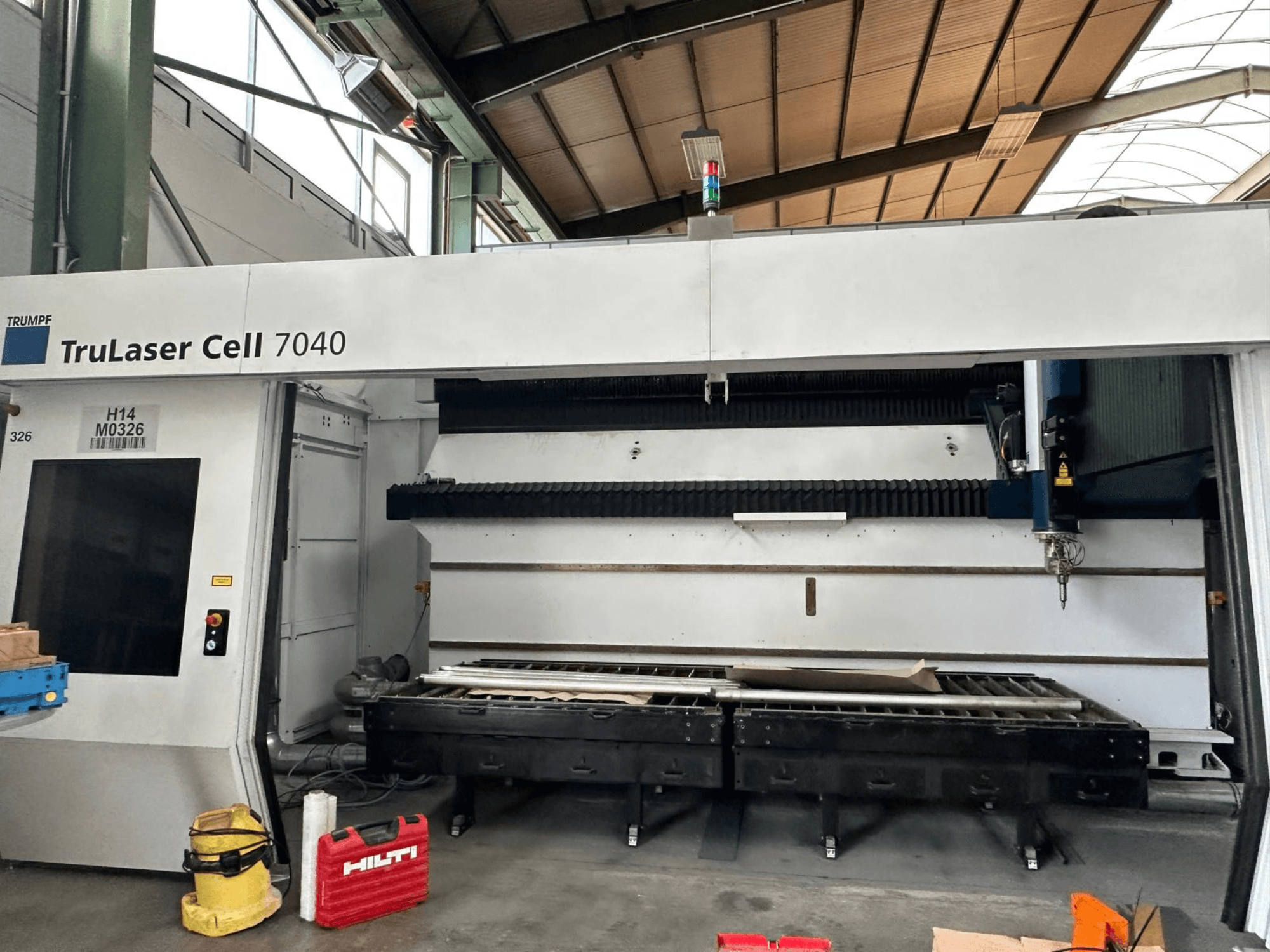

This 5-axis TRUMPF TruLaser Cell 7040 was manufactured in 2008. It features a powerful 6 kW fiber laser and a spacious table with dimensions of 3900 x 1500 mm. The machine is equipped with advanced Siemens 840D control for precision cutting. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser Cell 7040 machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2008
  • MODEL: TruLaser Cell 7040
  • production hours: 21756
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser Cell 7040

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D

Dimensions

  • Table Length: 3900 mm
  • Table Width: 1500 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 4000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 750 mm

Technical Specification

  • Laser Power: 6 kW

Additional Information

- Laser Source Type: Fiber laser

- Mains Voltage: 400 V

- Frequency: 50 Hz

- Connected Load: 104 kVA

- Control Voltage: 24 V=

- Required Fuse Protection: 3 x 200 A

- Compressed Air Connection: 6 - 14 bar

- Nitrogen Connection (N2): 30 bar

- Oxygen Connection (O2): 16 bar

- Laser Hours: 79,361 h

- Beam Hours: 21,756 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
