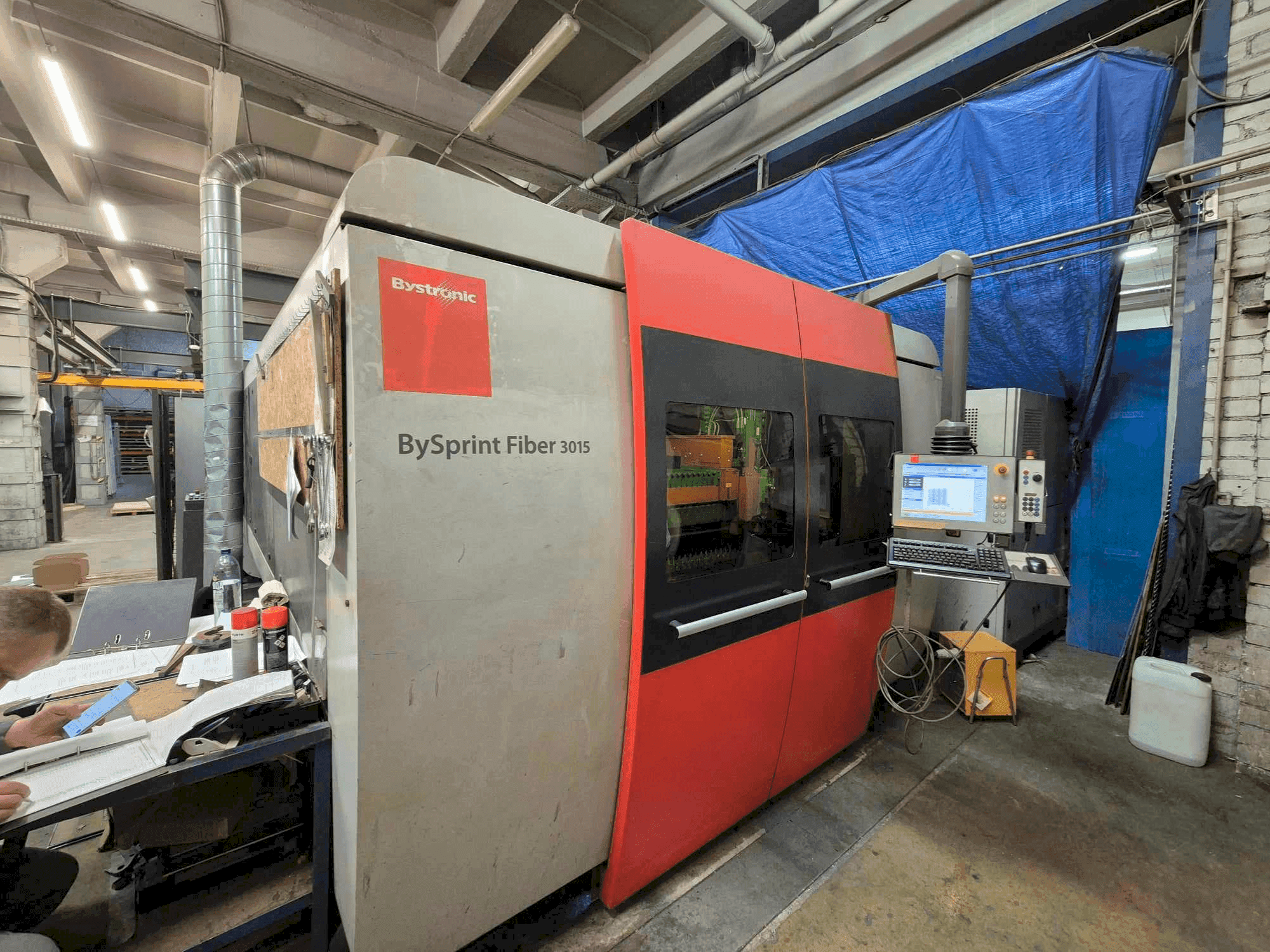

This Bystronic Bysprint Fiber 3015 3kW was manufactured in 2012. It features a max laser power of 3,000 W and handles sheet sizes up to 3000 × 1500 mm. It supports a max cutting thickness of 20 mm for steel and 12 mm for stainless steel and aluminium. If you are looking to get high-quality cutting capabilities, consider the Bystronic Bysprint Fiber 3015 3kW machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Bystronic
- year: 2012
- MODEL: Bysprint Fiber 3015 3kW
- production hours: 14534
- application type: Cutting
- Location: Lithuania
- machine type: Fiber Laser Cutting Machine
- control unit brand: BYSTRONIC
Technical Information - Bystronic Bysprint Fiber 3015 3kW
Control Unit
- Control Brand: BYSTRONIC
- Control Model: ByVision Cutting
Dimensions
- Machine Weight: 13000 kg
- Table Load: 750 kg
Technical Specification
- Laser Power: 3 kW
Additional Information
Machine Benefits
Technical Machine Benefits
- Max traversing speed x/y (parallel): 100 m/min
- Max simultaneous traversing x/y: 140 m/min
- Max axis acceleration x/y: 12 m/min²
- Nominal sheet size: 3000 × 1500 mm
- Table changeover time: approx. 35 s
- Wavelength: 1060–1080 nm
- Wavelength: 1060–1080 nm
- Wavelength: 1060–1080 nm
Extra Information
Max Material Thickness Max cutting thickness steel: 20 mm Max cutting thickness stainless steel: 12 mm Max cutting thickness aluminium: 12 mm Max cutting thickness brass: 6 mm Max cutting thickness copper: 6 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
