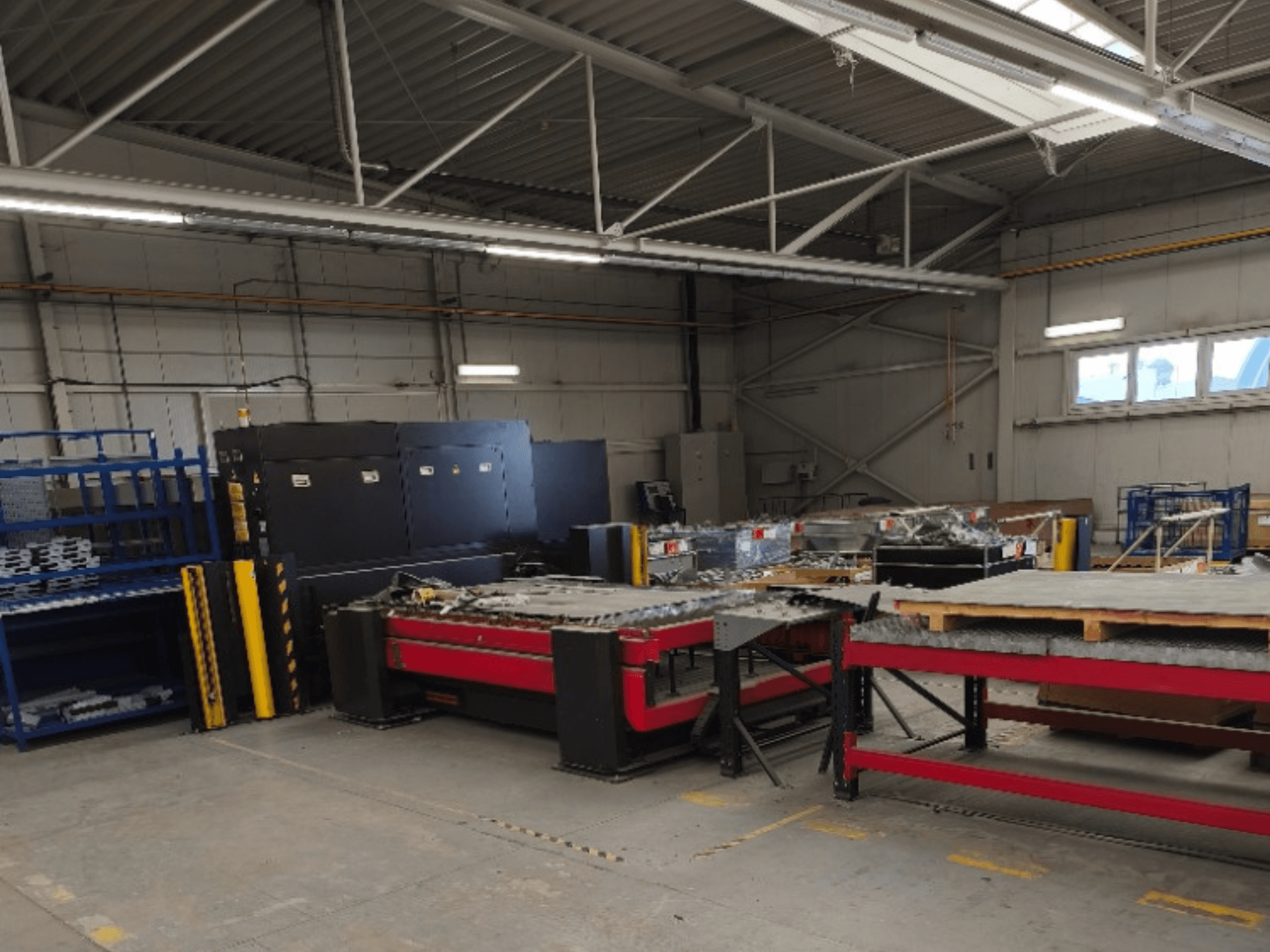

AMADA - LCG 3015 AJSK-CUT-AMA-2016-00001

• CNC control: AMADA AMNC-F with 15" touchscreen, 1 MB memory

• Control features: Auto-diagnostic system, laser power feedback control, USB/Ethernet ports, CD drive, LAN interface, cutting data library database, part/sheet counting, logical search function, production time measurement

• Max material thickness:

  • Mild steel (ST 1203): 10 mm

  • Stainless steel: 10 mm

  • Aluminum (AlMg3): 8 mm

  • Copper: 4 mm

  • Brass: 5 mm

• Cutting speed: 0–120 m/min

• Machine weight (with interchangeable table): 8,200 kg

• Cutting head: Lightweight HS head with capacitive sensor for constant distance, rapid-change lens/nozzle system, 5 protective safety measures

• NC focusing function: Automatic focus adjustment via CNC and optics for varying materials/thicknesses

• Positioning diode laser: Assists in approaching positions and working with residual sheets/trimmings

Additional equipment

• Pallet changer: Automatic palletizing system with pneumatic thin-sheet clamping and roller table for easy positioning

• Extraction and chiller: Multi-chamber extraction with self-cleaning filters; closed-loop cooling unit for laser, focusing mirror, lens, and drives
