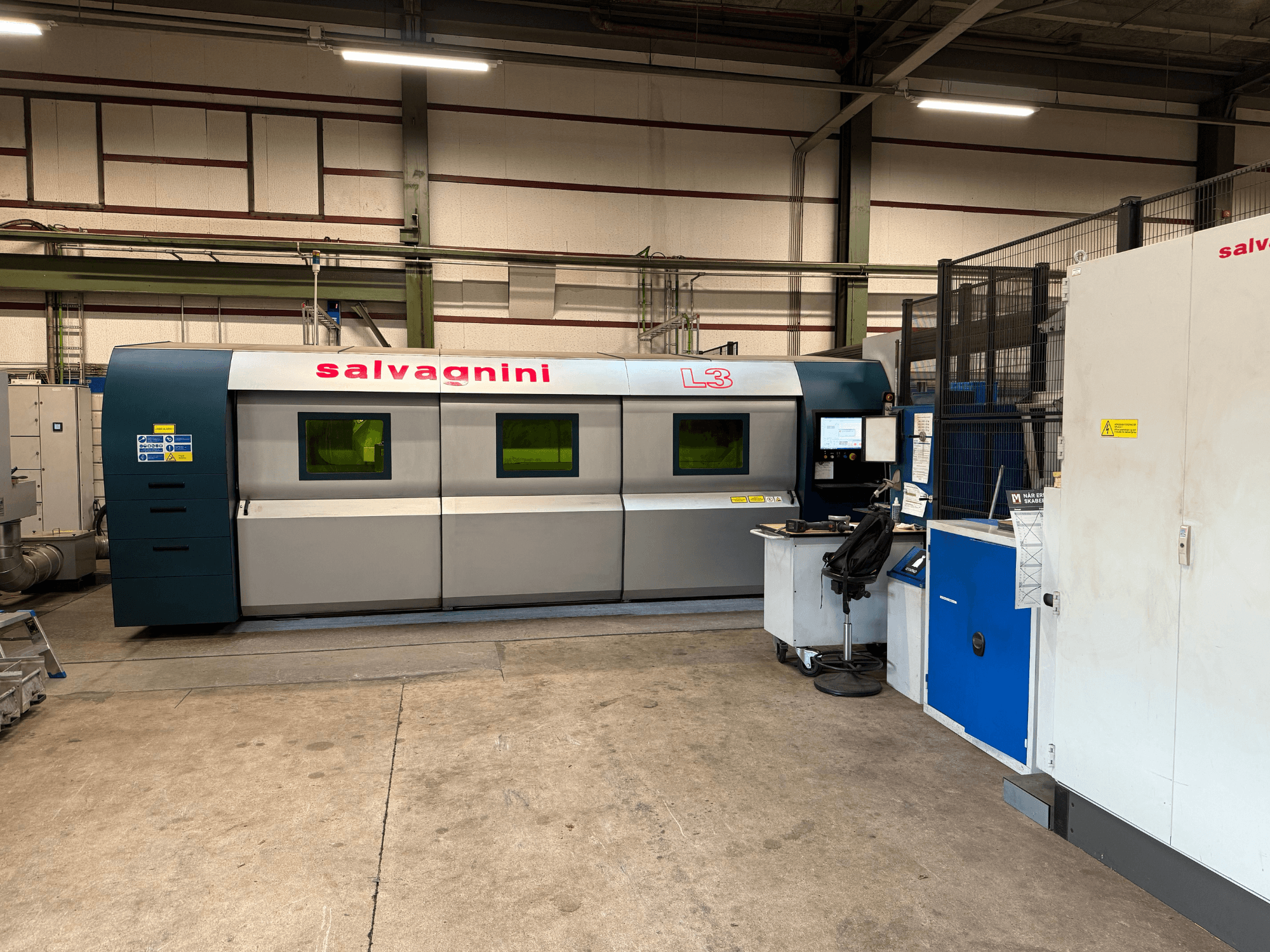

This 3-axis Salvagnini L3-4020 fiber laser cutting machine was manufactured in 2017. It features a powerful 6.0 kW solid-state fiber laser source, with a maximum working range of 4064 mm in the X-axis and 2032 mm in the Y-axis. The machine includes advanced automation components for efficient material handling and cutting. If you are looking to get high-quality sheet metal cutting capabilities, consider the Salvagnini L3-4020 machine we have for sale. Contact us for further details.
Overview
- brand: Salvagnini
- year: 2017
- MODEL: L3-4020 including handling system
- production hours: 10500
- application type: Cutting
- Location: Denmark
- machine type: Fiber Laser Cutting Machine
Technical Information - Salvagnini L3-4020 including handling system
Movement
- Number of Axes: 3
- X-axis Travel: 4064 mm
- Y-axis Travel: 2032 mm
- Z-axis Travel: 100 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Height adjustment: 980 mm
Table load: 1250 kg
Laser Cutting Head: Patented "Dry Cooling" focusing head with auto-focus 210 mm lens and capacitance anti-collision profiling
Main electronic connection: 400 V / 50 Hz
Power consumption: 27 kWh
Year of Order Confirmation: 2017
Machine Type: Fiber Laser Cutting Machine
Application Type: Sheet Metal Cutting
Maximum Axis Acceleration (X / Y): 1.5 g / 2.0 g
Material Cutting Capacity (Maximum Thicknesses): Mild Steel 25 mm, Stainless Steel 20 mm, Aluminum 20 mm, Copper 8 mm, Brass 8 mm
MTW4020.V5 Five-position storing module (Max capacity 3000 kg per tray)
TLV4020.MT Motorized Scissor Table (Max capacity 3000 kg)
ADLL4020.SP Connection for automatic sheet loading and unloading (Unloading comb matrix)
Extra bay lengthened main automation structure
LTS4020 Tray supporting station with leafing magnets
MCL40 Cartesian Manipulator / Stacker with dual rotating gripping devices (Max part capacity: 65 kg single / 130 kg dual)
MCL Magnet kit (10 magnets total for picking up perforated or small parts)
TCV4020 Stacking Scissor Table (Max capacity 5000 kg, 1000 mm stroke)
CCVT40 Motorized Carriage (Short side mobile, max capacity 5000 kg)
PPC4020 Gantry Mobile Carriage & PMC4020 short-side mobile carriage
APC2 Adaptive Process Control (Double-channel sensor reading piercing spectrum and cutting losses)
AVS Artificial Vision System (HD camera for parts referenced program generation from dxf/dwg)
ANC Automatic Nozzle Change (8-position nozzle carrier with integrated cleaning brush)
GF Interchangeable grids with mild steel slats & CRS Scrap collection bins
ASF Fume Extraction unit with high-efficiency filtering sleeves, pneumatic cleaning, and integrated spark trap
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
