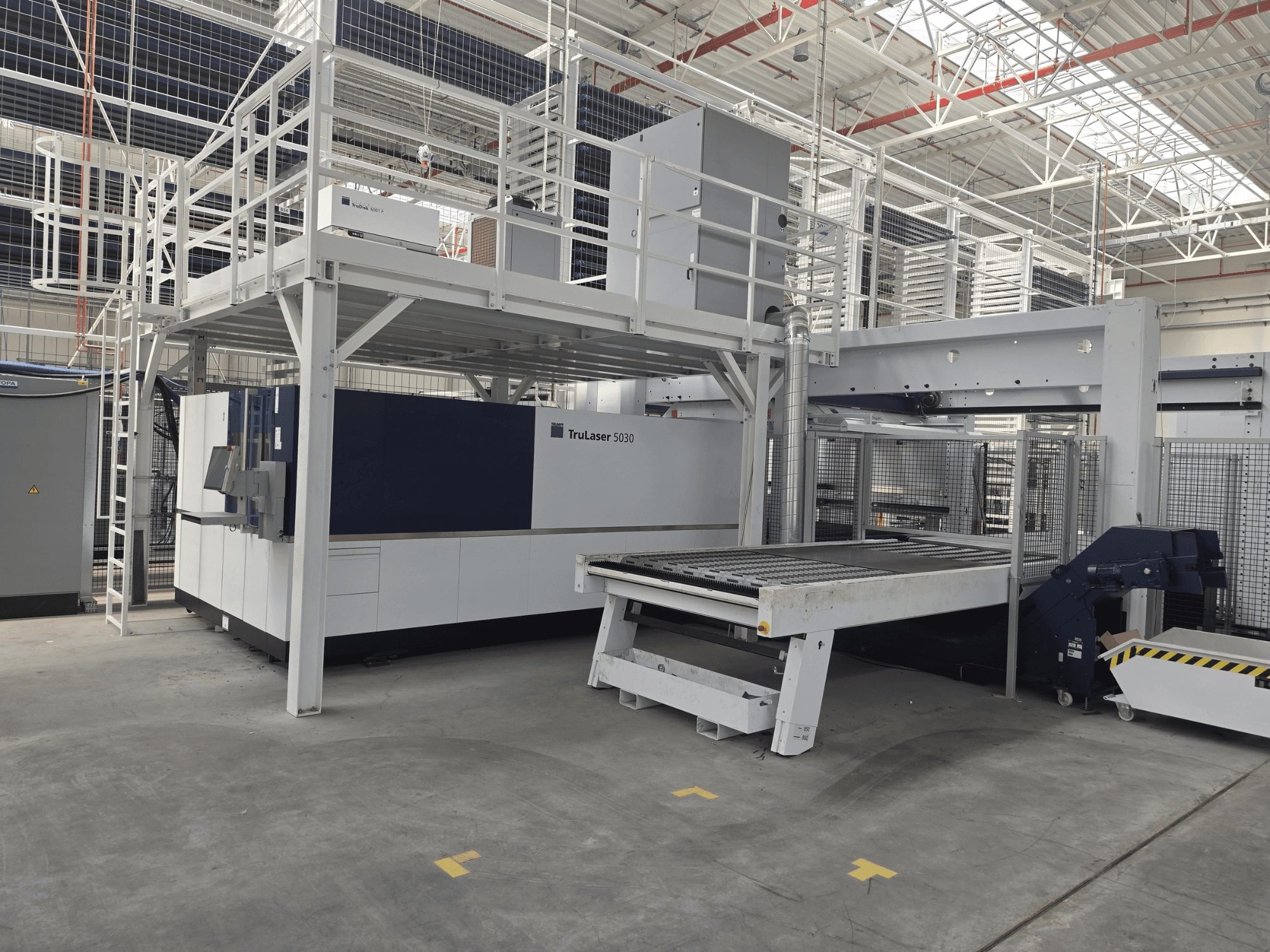

TRUMPF - TruLaser 5030 fiber L76 FMCPL-CUT-TRU-2022-00001

• Working format/area: 3,000 x 1,500 mm; X 0–3,000 mm / Y 0–1,500 mm / Z 0–115 mm

• Machine design: Closed machine frame; gantry drive with direct linear drives; automatic longitudinal pallet changer; integrated control cabinets and storage cabinet; working-area lighting; machine status light; water/air machine and laser chiller; CE compliant; ambient temp 5–35 °C

• Dynamics/accuracy: Max simultaneous axis speed 280 m/min; Ps 0.03 mm; Pa 0.05 mm; min programmable increment 0.001 mm

• CNC control: Siemens SINUMERIK 840D sl with 21.5" color MultiTouch; MultiTouch HMI; USB and RJ45; integrated technology data; programmable cutting gas/pressure; production planning; multi-sheet processing; automatic shutdown; Remote Support interface; Condition Guide; Cutting Guide; Central Link; Online Update Manager

• Laser source: TRUMPF TruDisk 6001 (6 kW) solid-state disk laser; fiber-optic beam delivery; one LLK output; closed beam guidance; high back-reflection resistance; stable output over service life

• Cutting head: Universal cutting unit; single cutting-head strategy; adaptive lens system; protective glass with online condition monitoring; auto nozzle centering; collision protection; capacitive height control; automatic focal position; pilot laser

• Standard cutting functions: AdjustLine; BrightLine fiber; ControlLine; FastLine; FlyLine; FocusLine; NitroLine; PierceLine; Performance package; Highspeed cutting package; Copper and Brass cutting packages; Micro-weld

• Additional cutting package: Highspeed Eco (fusion cutting, medium-thickness stainless steel) with up to 70% cutting-gas reduction and up to 100% sheet throughput increase

• Automatic nozzle changer: 21 positions; automatic change/cleaning/re-setting tied to material/process; reduces setup/handling

• Drop&Cut: Integrated camera; assigns live image of residual sheet to part geometry; live cutting preview; no separate programming needed for basic use

• Process monitoring camera: Front-area monitoring (~2.5 m); remote observation; preliminary result assessment; video stream output to external monitor

• Pallet/material handling (machine-integrated): Automatic longitudinal pallet changer; loading/unloading parallel to machining; pallet access from three sides

Additional equipment

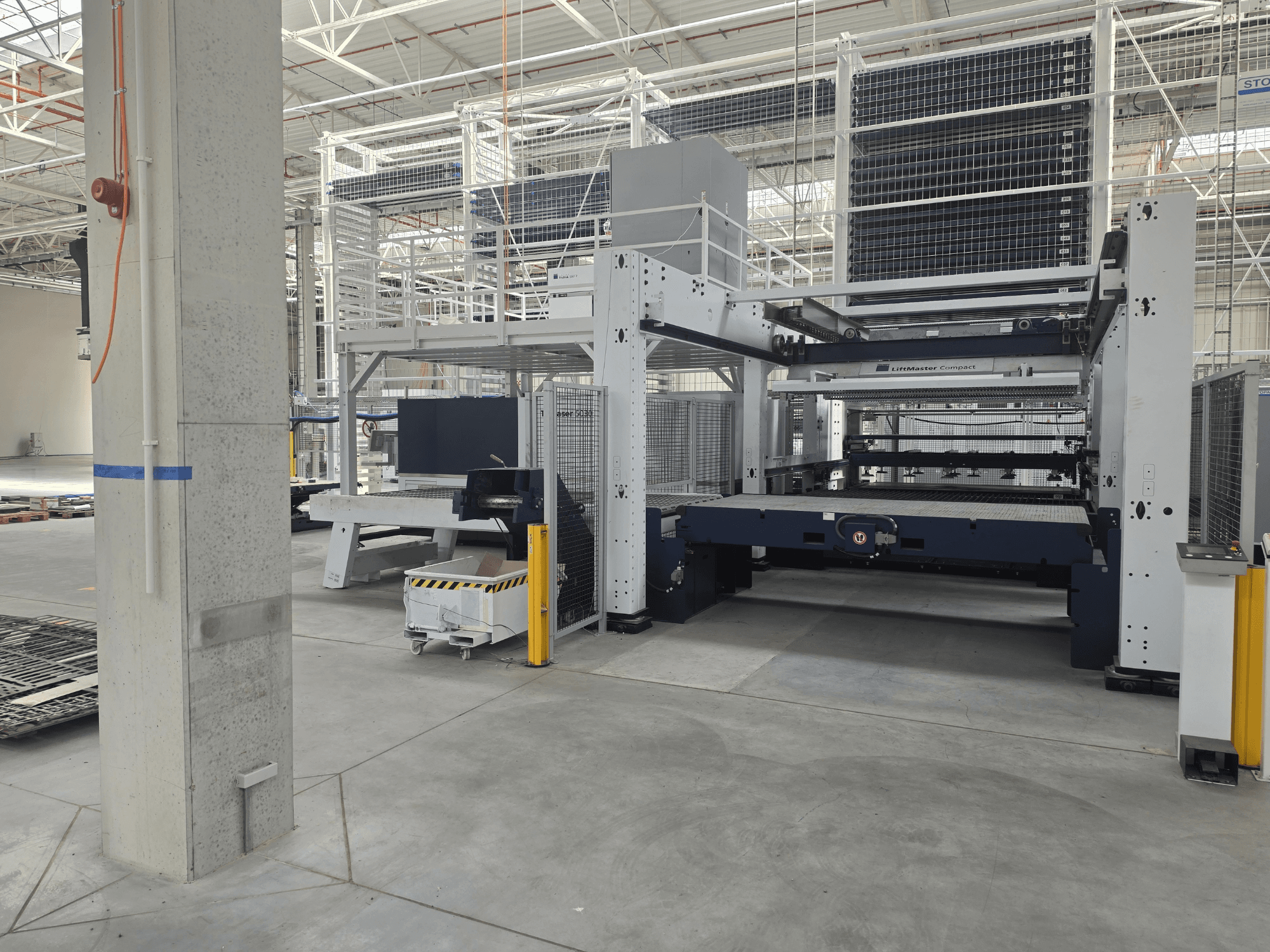

• LiftMaster Compact 1530 (AL34) automatic loading/unloading system

  • Type 1530; max sheet 3,000 x 1,500 mm; min sheet 1,000 x 1,000 mm

  • Max sheet thickness 25 mm; max sheet weight 900 kg; max unloading weight 900 kg

  • With rake lifter: max thickness 25 mm; with rake lifter + belt system: max thickness 15 mm

  • Minimum part size with rake lifter: 150 x 150 mm

• LiftMaster equipment/options

  • Storage connection; extended pallet travel out of machine

  • Sheet separation device; double-sheet detection; synchronous loading

  • Thin-sheet separation (0.8–2.0 mm); loading station for 90 mm stack height

  • Structural-steel loading grippers, 67 mm pitch, replaceable tines

  • Finished-parts pallet; structural-steel unloading grippers, 33.5 mm tooth spacing

  • Linear version: linear axis for travelling gripper frame

  • Additional portal station

• PartMaster at portal station: ergonomic sorting of finished parts and skeletons; suitable up to approx. 12–12.7 mm sheet thickness

• Storage integration

  • STOPA storage connection; machine prepared for automated storage integration; storage interface

  • TC-CELL / TruTops Fab Module Storage for fully automatic material and production flow

  • Raw-material and finished-sheet data exchange

  • Safety equipment for storage connection including second safety light-barrier circuit

  • Engineering/system design by TRUMPF and STOPA
