TRUMPF - TruLaser 3030PL-CUT-TRU-2014-00001

Rs. 8,500,035
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

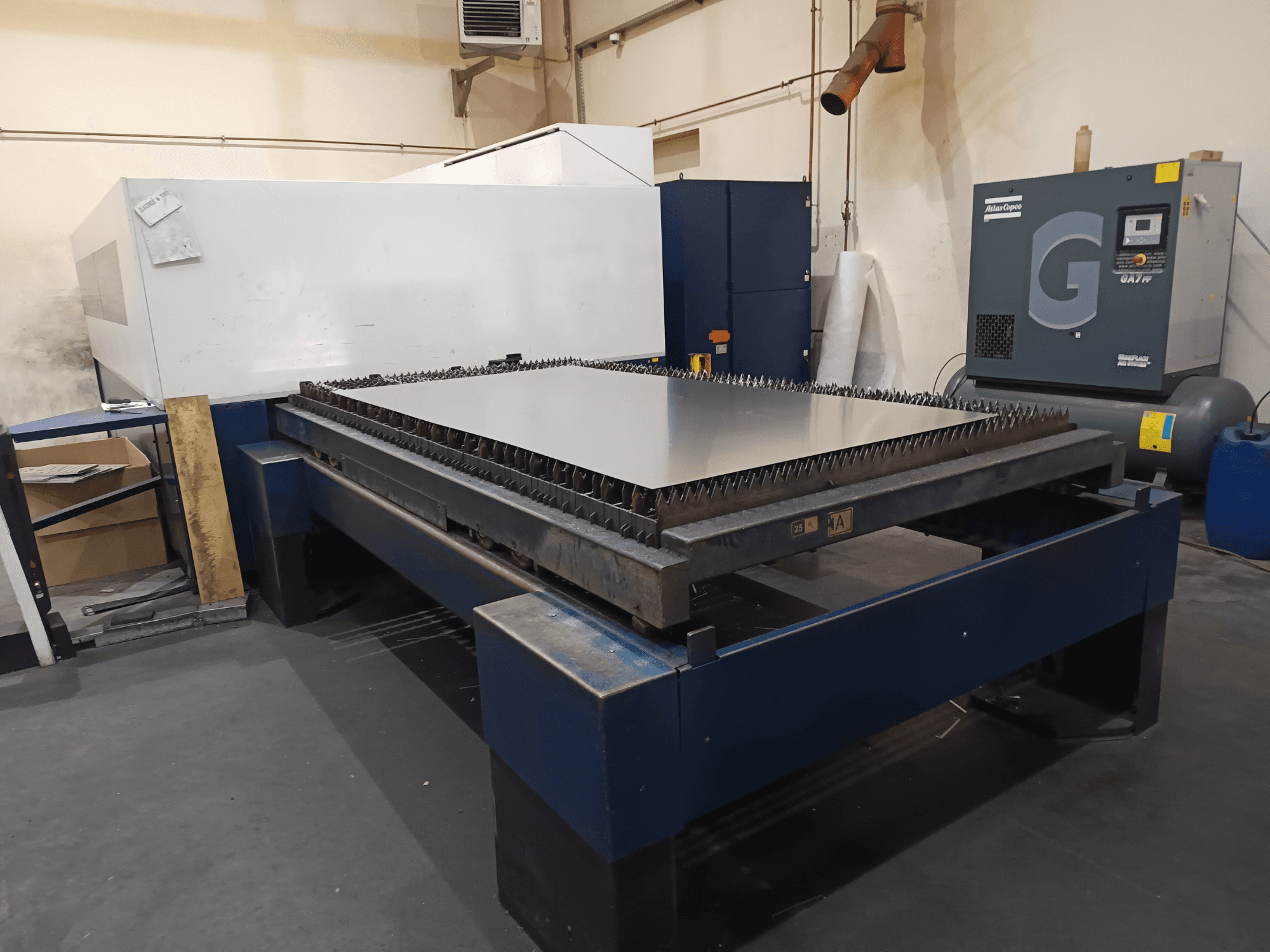

This 3s TRUMPF TruLaser 3030 Fiber cutting machine was manufactured in 2014. It features a powerful 3,000 W TruDisk 3001 solid-state fiber laser, with a maximum cutting capacity for mild steel up to 20 mm. The machine offers impressive positioning speeds and a spacious working area, making it suitable for various applications. Consider the opportunity to buy this TRUMPF TruLaser 3030 Fiber cutting machine. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2014
  • MODEL: TruLaser 3030
  • application type: Cutting
  • Location: Poland
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840D SL

Dimensions

  • Machine Height: 2400 mm
  • Machine Length: 9400 mm
  • Machine Weight: 12700 kg
  • Machine Width: 3000 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 115 mm

Technical Specification

  • Laser Power: 3000 kW

Additional Information

  • Positioning speeds:

    • Max. speed X: 100 m/min

    • Max. speed Y: 100 m/min

    • Max. simultaneous X/Y: 140 m/min

  • Cutting capacity:

    • Max. mild steel thickness: 20 mm

    • Max. stainless steel thickness: 15 mm

    • Max. aluminum thickness: 15 mm

    • Max. copper thickness: 6 mm

    • Max. sheet weight: 900 kg

  • Machine data:

    • Connected load: 37 kVA

    • Compressed air consumption: 35 Nm³/h

    • Color: White / Blue

  • Integrated features:

    • Integrated electrical cabinets with internal lighting

    • Work area lighting

    • Positioning laser diode

    • Spray device

    • Automatic nozzle cleaning

  • Laser and technology functions:

    • FocusLine

    • NitroLine

    • PlasmaLine

    • PierceLine

    • ContourLine

    • FastLine

    • FlyLine

    • AdjustLine

    • MicroWeld

Additional equipment

  • Conveyor belt for small parts / slag

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
