TRUMPF TruLaser 3030 L20

Photo Gallery

Video gallery

SOLD

TRUMPF - TruLaser 3030 L20

2012

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruLaser 3030 L20 Laser Cutting Machine

Show in original language

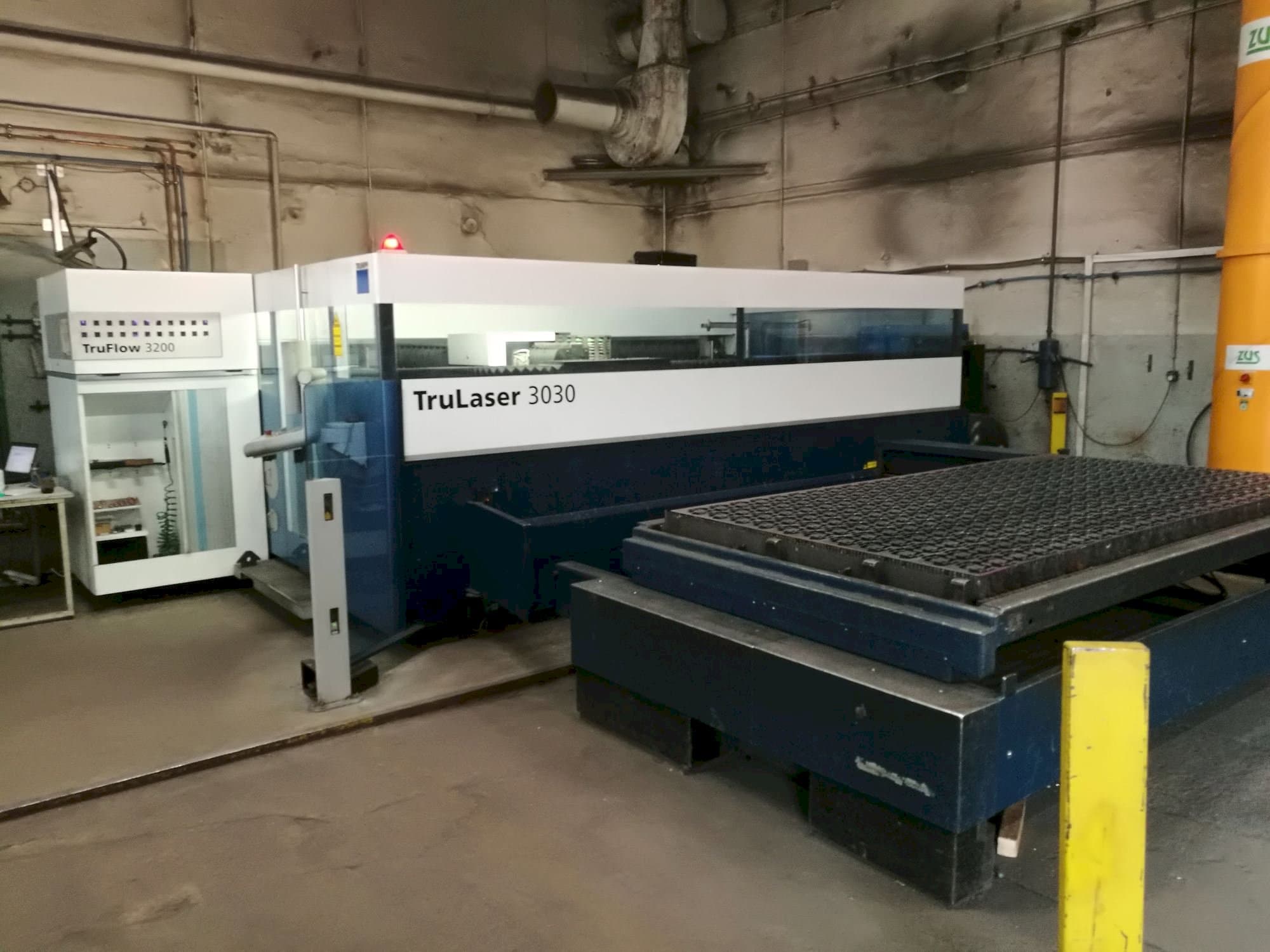

This Trumpf TruLaser 3030 L20 Laser Cutting Machine was built in the year 2012 and has been working for 20650 hours. Equipped with a SIEMENS Sinumerik 840 FL Control unit, this machine can cut up to 20 mm of steel sheets.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 3030 L20
production hours: 20650
application type: Laser Cutting
Location: Poland
machine type: Laser Cutting Machines (CO2)
availability: Sold
control unit brand: siemens
GINDUMAC ID: PL-LAS-TRU-2012-00001

Technical Information

General Data

Measurements width: 7600 mm
Measurements depth: 6500 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Brand: siemens
Model: Sinumerik 840 FL

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm

Media

Main electronic connection: 3x400V / 50Hz
Power consumption: 53 kW
Internal cooling: Yes

Additional equipment

- Pallet changer
- Rotolas system for tubes
- Automatic clamping system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
