TRUMPF - TRUMATIC L 3030ES-CUT-TRU-2006-00001

Rs. 2,109,383
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

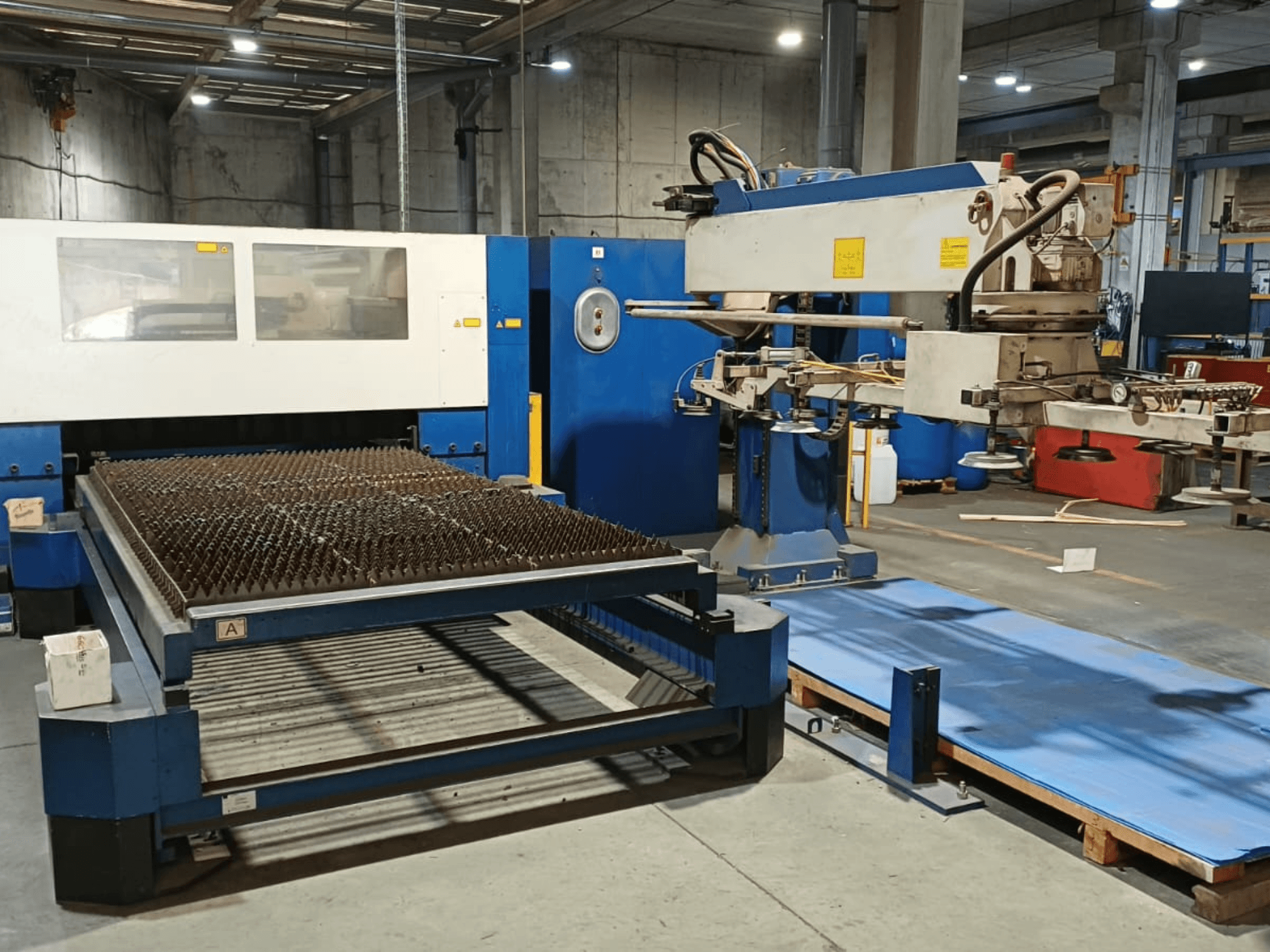

This 3-axis TRUMPF TRUMATIC L 3030 was manufactured in 2006. It features a working range of 3000 mm in the X direction and 1500 mm in the Y direction, with a maximum positioning speed of 60 m/min. The machine is equipped with a TRUMPF CNC path control based on Siemens SINUMERIK 840D. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TRUMATIC L 3030 CO2 laser cutting machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2006
  • MODEL: TRUMATIC L 3030
  • application type: Cutting
  • Location: Spain
  • machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF TRUMATIC L 3030

Dimensions

  • Machine Height: 2000 mm
  • Machine Length: 9800 mm
  • Machine Weight: 11500 kg
  • Machine Width: 5300 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 115 mm

Technical Specification

  • Laser Power: 4 kW

Additional Information

  • Max. positioning speed: 60 m/min (parallel to axes); 85 m/min (simultaneous)

  • Drive type: Maintenance-free three-phase AC servomotors on X, Y, Z

  • CNC control: TRUMPF CNC path control based on Siemens SINUMERIK 840D

  • Minimum programmable travel step: 0.01 mm

  • Positioning accuracy: ±0.1 mm

  • Average position dispersion: ±0.03 mm

  • Compressed air consumption:

    • With TLF 2000–3200: 31 m³/h (516 l/min)

    • With TLF 4000: 42 m³/h (700 l/min)

  • Laser power options (cw) and max. structural steel thickness:

    • TLF 2000: 2000 W / 12 mm

    • TLF 2700: 2700 W / 15 mm

    • TLF 3200: 3200 W / 20 mm

    • TLF 4000: 4000 W / 20 mm

  • Electrical connection and fuses (50 Hz / 400 V):

    • TLF 2000: 63 kVA / 100 A

    • TLF 2700: 71 kVA / 125 A

    • TLF 3200: 73 kVA / 125 A

    • TLF 4000: 88 kVA / 160 A

Additional equipment

  • Dust extractor

  • Control cabinet

  • HF generator

  • Cooling unit


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
