TRUMPF - TRUMATIC L3030ES-CUT-TRU-2002-00001

Rs. 1,317,663
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

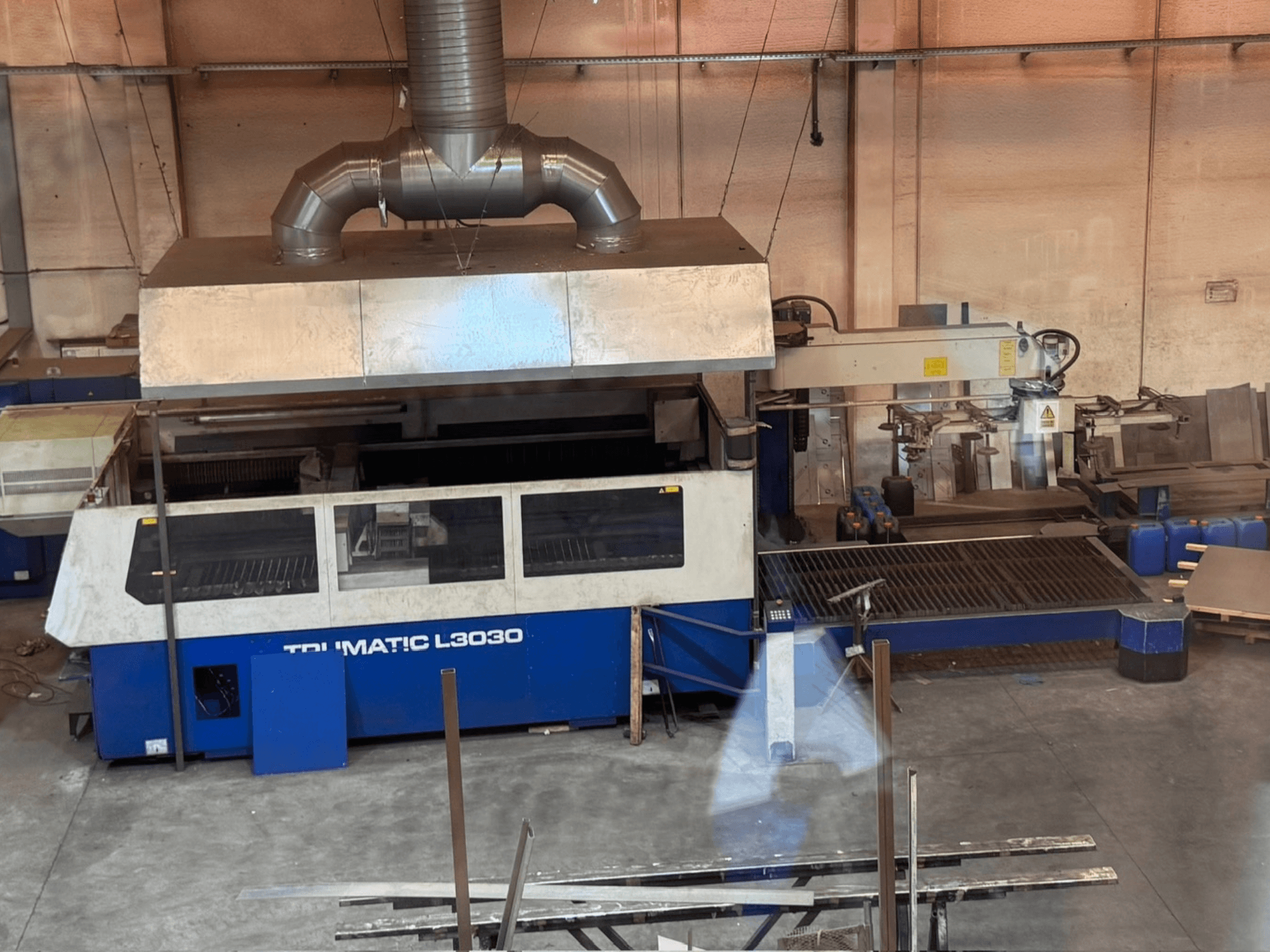

This 3-axis TRUMPF TRUMATIC L3030 was manufactured in 2002. It features a powerful 3,200 W CO₂ laser, with a working area of 3,000 x 1,500 mm and a maximum workpiece weight of 710 kg. The machine is equipped with Siemens Sinumerik 840D CNC control, ensuring precision in cutting. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TRUMATIC L3030 CO₂ laser cutting machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2002
  • MODEL: TRUMATIC L3030
  • application type: Cutting
  • Location: Spain
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC L3030

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 840

Dimensions

  • Machine Height: 2000 mm
  • Machine Length: 9300 mm
  • Machine Weight: 11500 kg
  • Machine Width: 4600 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 145 mm

Technical Specification

  • Laser Power: 3.2 kW

Additional Information

  • Maximum workpiece weight: 710 kg

  • Maximum mild steel thickness: 20 mm

  • Maximum stainless steel thickness: 12 mm

  • Maximum aluminium thickness: 8–10 mm

  • Positioning speed (X/Y): 60 m/min

  • Simultaneous positioning speed: 85 m/min

  • Wavelength: 10.6 μm

  • Compressed air connection: 6 bar

  • Nitrogen connection: 30 bar

  • Oxygen connection: 20 bar

  • Electrical connection: approx. 73 kVA

  • Power supply: 400 V / 50 Hz

Additional equipment

  • Pallet changing system: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
