TRUMPF - Trumatic L6050BE-LAS-TRU-2006-00002
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used TRUMPF Trumatic L6050 For sale | gindumac.com

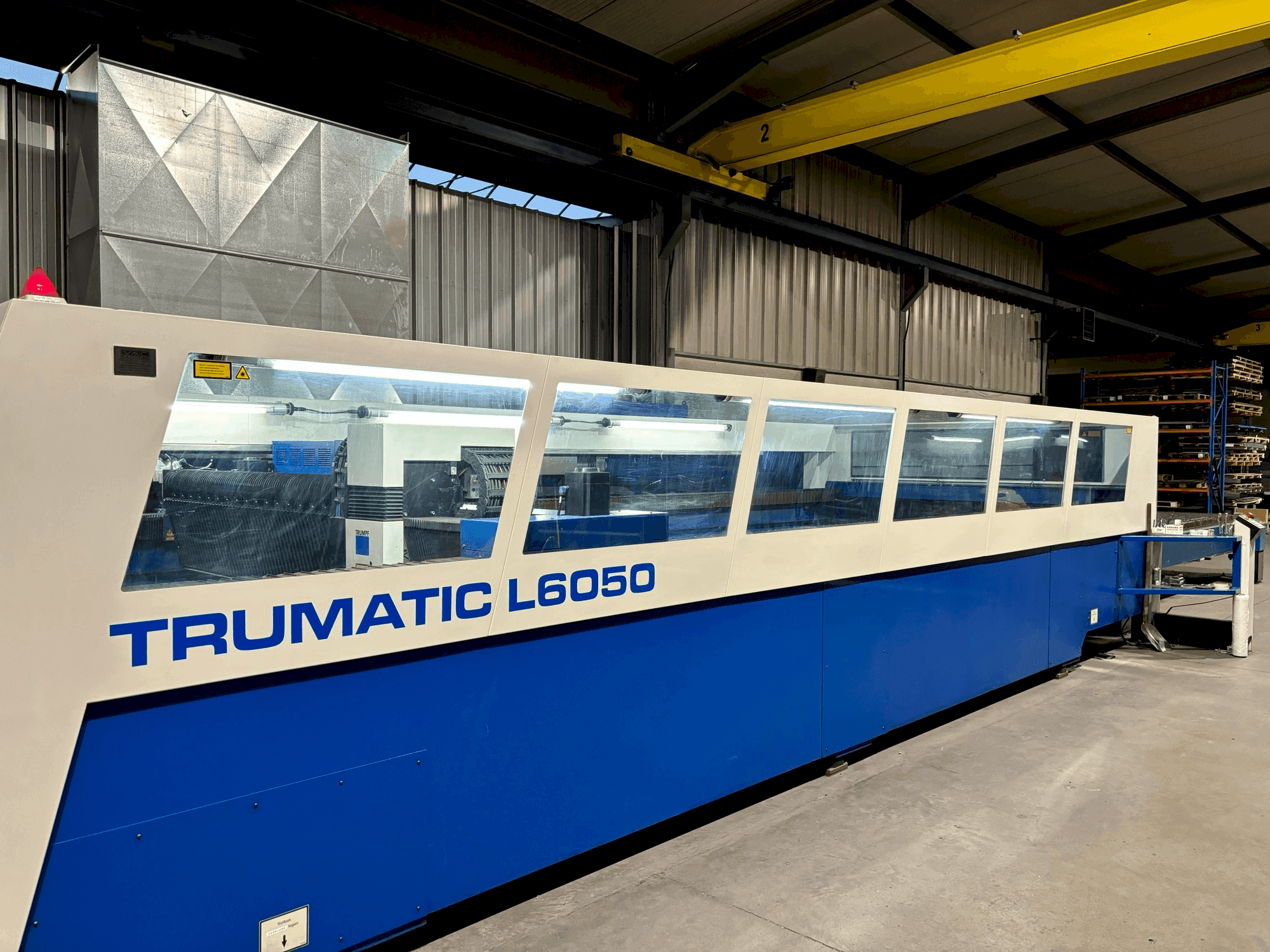

This TRUMPF Trumatic L6050 was manufactured in 2006. A robust laser cutting machine featuring a SIEMENS SINUMERIK 840D controller, it handles a maximum workpiece weight of 1.900 kg. It efficiently cuts through mild steel up to 20 mm, stainless steel up to 15 mm, and aluminium up to 10 mm. Ideal for large-scale operations with a working area of 6.000 x 2.000 mm. For more information about this laser cutting machine, please reach out to us.
Overview
- brand: TRUMPF
- year: 2006
- MODEL: Trumatic L6050
- application type: Laser Cutting
- Location: Belgium
- machine type: Laser Cutting Machines (CO2)
- availability: Immediately
- control unit brand: Siemens
Technical Information - TRUMPF Trumatic L6050
General Data
- Measurements width: 5200 mm
- Measurements depth: 16100 mm
- Measurements height: 2000 mm
- Machine weight: 21500 kg
Control Unit
- Brand: Siemens
- Model: Sinumerik 840D
Main drive
- Laserpower: 5 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 6000 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 115 mm
Workpiece
- Workpiece weight: 1900 kg
Max Material thickness
- Steel: 20 mm
- Stainless steel: 15 mm
- Aluminum: 10 mm
Additional Information
- Technical Machine Benefits:
- - Laser type: co2
- - Beam on hours: 25,354
- - Laser on hours: 39,358
- - Positioning speed x/y: 60 m/min
- - Simultaneous positioning speed: 85 x+y m/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
