Bystronic - Bysprint 3015IT-CUT-BYS-2006-00001

Rs. 2,016,543
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

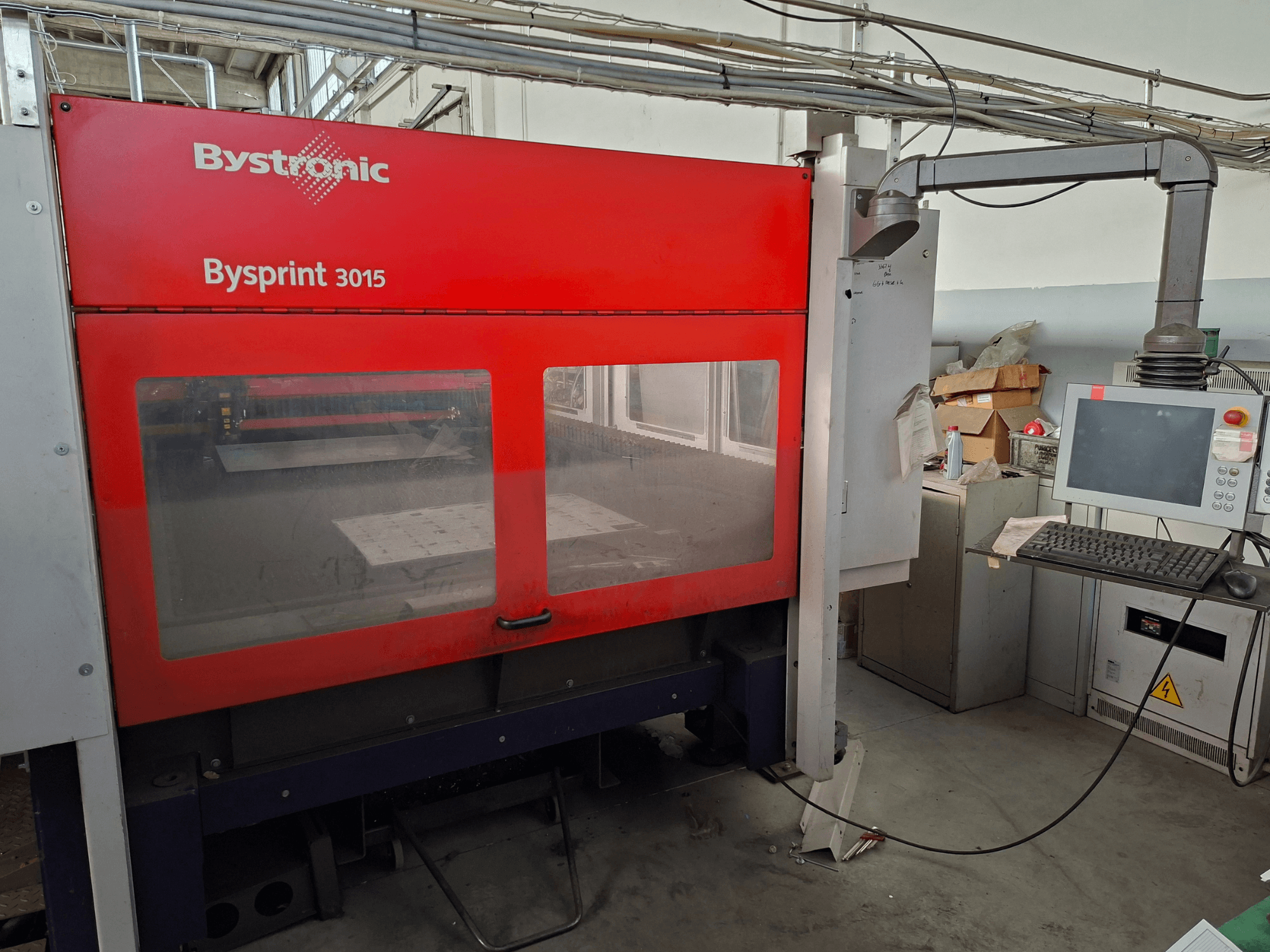

This 3-axis Bystronic Bysprint 3015 CO₂ laser cutting machine was manufactured in 2006. It features a working area of 3,000 × 1,500 mm and includes an automatic table changer and two cutting heads. The machine has a maximum cutting capacity of 12 mm for stainless steel and 20 mm for mild steel. If you are looking to get high-quality cutting capabilities, consider the Bystronic Bysprint 3015 machine we have for sale. Contact us for further details.

Overview

  • brand: Bystronic
  • year: 2006
  • MODEL: Bysprint 3015
  • application type: Cutting
  • Location: Italy
  • machine type: CO2 Laser Cutting Machine

Technical Information - Bystronic Bysprint 3015

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm

Technical Specification

  • Laser Power: 3 kW

Additional Information

  • Working area: 3,000 × 1,500 mm

  • Cutting heads: 2 (5" and 7.5")

  • Features/Options: Cut Control; Adaptive mirror bypass; MCS; STL

  • Resonator: Included

  • Cutting-head cooling system: Included

  • Original turbine operating hours: Approx. 7,000 hours

  • Maximum cutting capacity:

    • Mild steel: Up to 20 mm (continuous operation)

    • Stainless steel: Up to 12 mm

    • Aluminium: Up to 6 mm

Additional equipment

  • Automatic table changing system

  • Fume extraction system

  • Machine manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
