➤ Used SEI Laser PAPER BLASTER 02 For Sale | gindumac.com

Show in original language

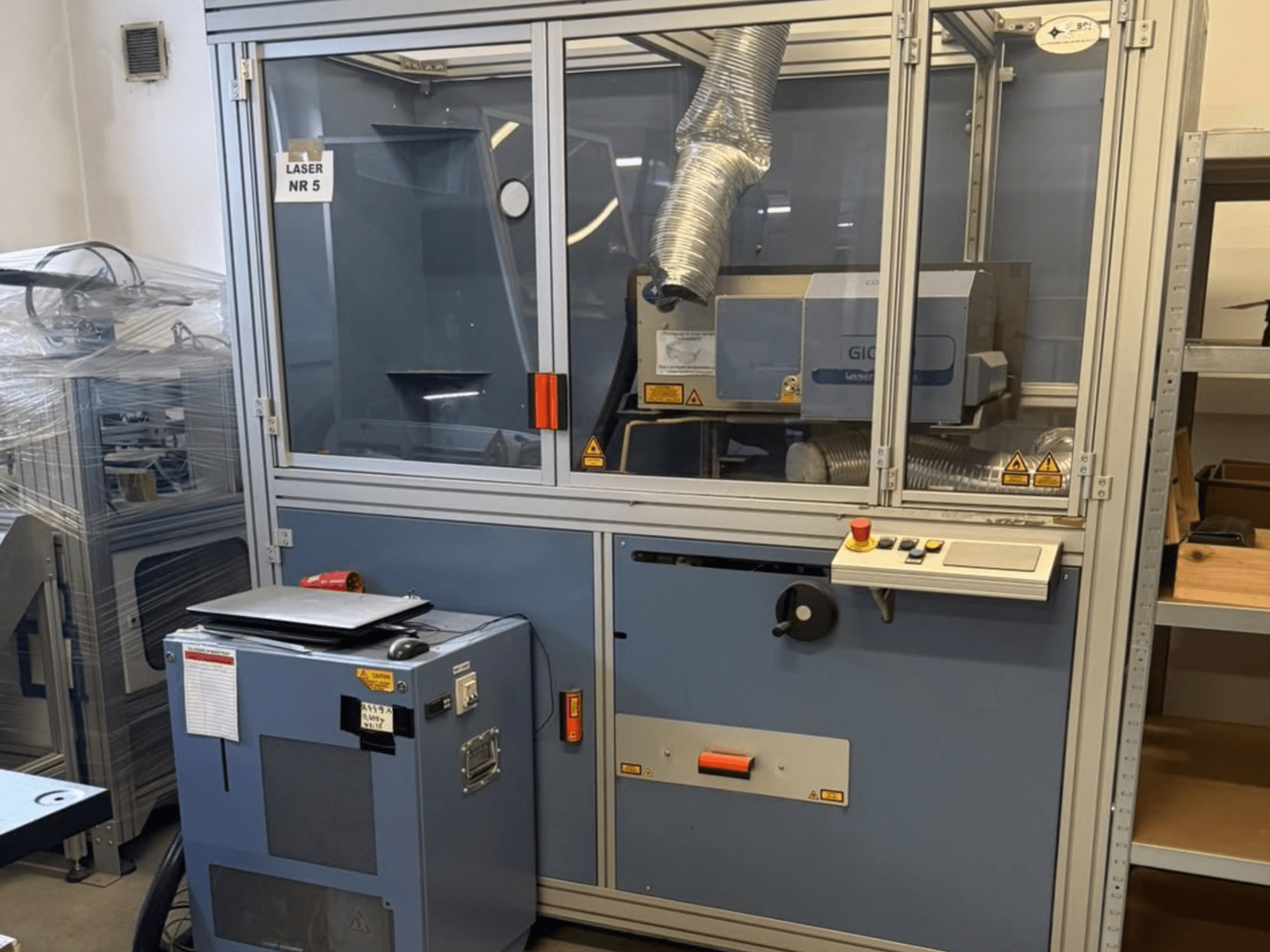

CO2 laser cutting machine manufactured in 2008. This SEI Laser Paper Blaster 02 features a sealed CO₂ laser with a nominal power of 115 W, designed for paper and cardboard processing. It includes an automatic sheet feeder with a maximum stack height of 350 mm and an integrated conveyor system for efficient operation. If you are looking to get high-quality cutting, marking, and engraving capabilities, consider the SEI Laser Paper Blaster 02 machine we have for sale. Contact us for further details.

Overview

brand: SEI Laser
year: 2008
MODEL: PAPER BLASTER 02
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine

Technical Information - SEI Laser PAPER BLASTER 02

Movement

Number of Axes: 3

Technical Specification

Laser Power: 115 kW

Additional Information

Laser system

Wavelength: ~10.6 µm
Scanning head: 3-axis galvanometric system
Axes: X/Y via scanning mirrors; Z with dynamic focusing (per optical setup)
Working field: Approx. 200 × 200 to 500 × 500 mm
Processing modes: Cutting, marking, engraving, micro-perforation
Adjustable parameters: Laser power, frequency, processing speed

Paper handling

Feeding: Automatic sheet feeder with stack loader
Max stack height: 350 mm
Paper weight range: 120–300 g/m²
Operation: Fully automatic cycle
Transport: Integrated conveyor system
Output: Automatic sheet discharge and collection

Control and software

Control: PC-based

Safety and extraction

Enclosed laser processing area
Interlocked access doors
Laser safety shutters
Emergency-stop devices
Fume extraction connections (external unit required)

Electrical data

Supply voltage: 230 V AC, single phase with neutral and PE
Frequency: 50/60 Hz
Machine nameplate power: 200 W
Machine nameplate current: 1 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
