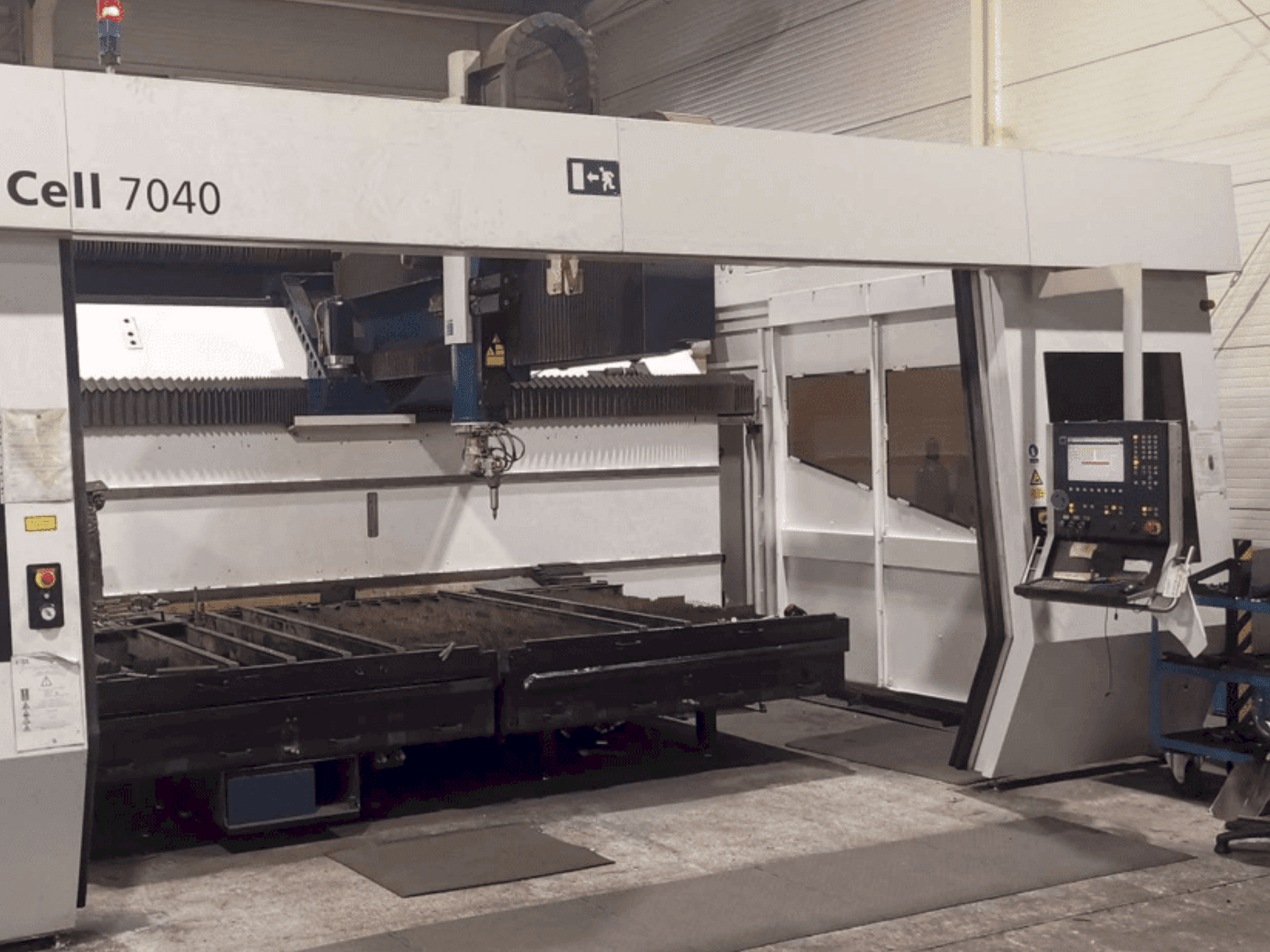

This TRUMPF TruLaser Cell 7040 was manufactured in 2015. It features a large working range with dimensions of 4000x2000 mm and a Z-axis height of 750 mm. Equipped with a powerful TruFlow 4000 Watt CO2 laser, it excels in both thin and thick material cutting. Additional features include CNC automatic scanning, height detection, and a Siemens 840D control system. Consider the opportunity to buy this TRUMPF TruLaser Cell 7040 CO2 laser cutting machine. Contact us for more information.
Overview
- brand: TRUMPF
- year: 2015
- MODEL: TruLaser Cell 7040
- application type: Cutting
- Location: Hungary
- machine type: CO2 Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser Cell 7040
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Additional Information
Additional equipment
- HERDING Fume extraction in working area: 2000 Nm3/h
- Cooling unit
- Automatic sliding door "CE"
- Automatic two-level redundant working range protection "CE"
Machine Benefits
Technical Machine Benefits
- Cnc automatic workpiece scanning
- Cnc automatic height detection
- Table for laser cutting: 4000x2000 mm
- Laser source: truflow 4000 watt (co2)
- Dynamic optics for thin materials focus distance: 155 mm
- Dynamic optics for thick materials focus distance: 240 mm
- Optics calibration device
Extra Information
Working range X: 4000 mm Working range Y: 2000 mm Working range Z: 750 mm 3D cutting head B = 135°, C = n x 360° Partition wall for 2 side operation CE certification 3D Programming Module TruTops Cell Automatic Laser status indicator light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
