➤ Used Trotec Speedy 360 For Sale | gindumac.com

Show in original language

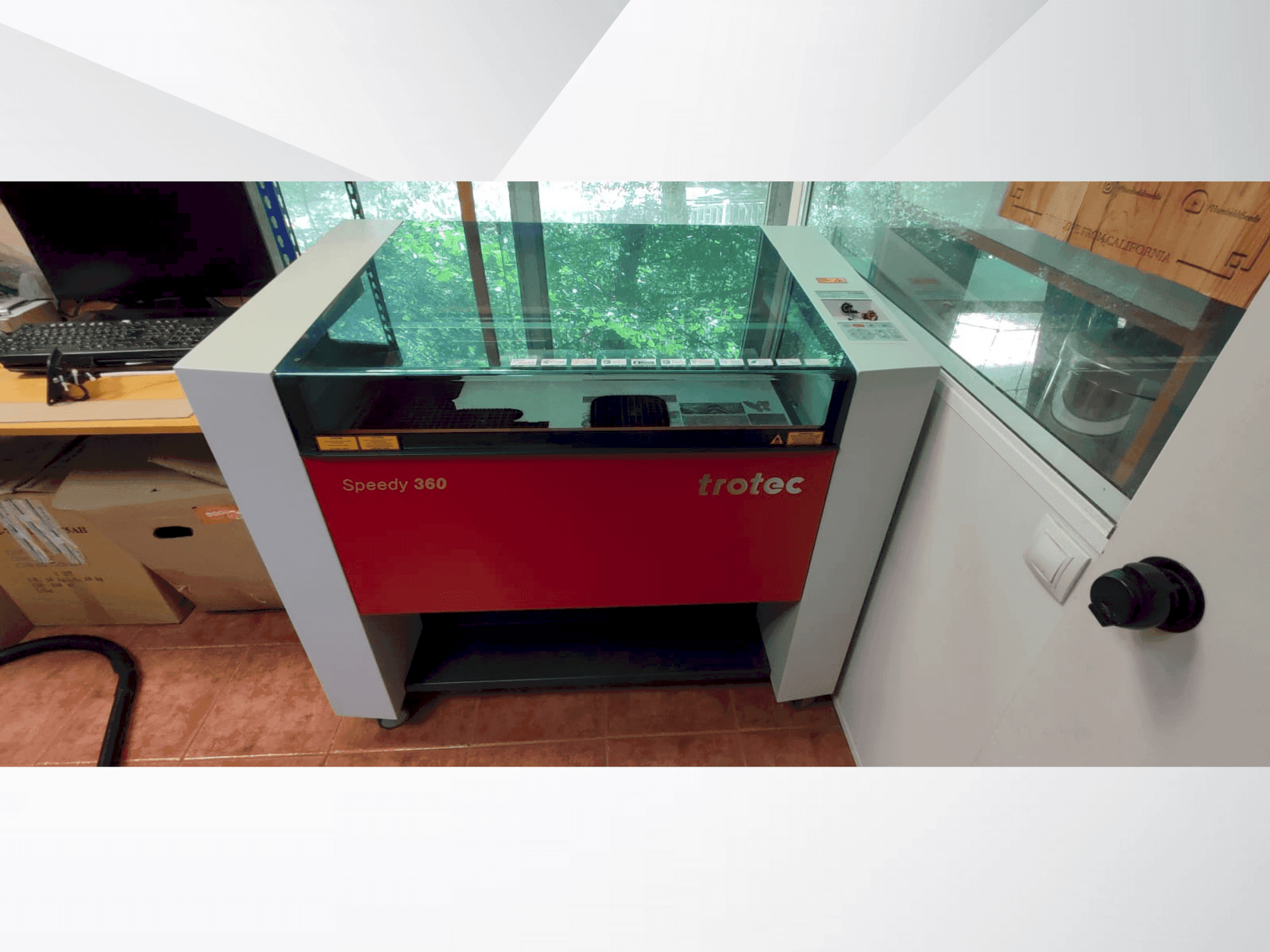

This 3-axis Trotec Speedy 360 was manufactured in 2019, featuring a robust CO₂ laser system with a power range of 40-120W. It offers a maximum working area of 32 × 20 inches and supports a variety of materials with its multifunctional table options, including a vacuum table and honeycomb cutting tabletop. Ideal for precise cutting and engraving, this machine includes JobControl® Expert Software for enhanced operation. If you are looking to get high-quality cutting capabilities, consider the Trotec Speedy 360 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Trotec
year: 2019
MODEL: Speedy 360
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine

Technical Information - Trotec Speedy 360

Dimensions

Machine Depth: 1221 mm
Machine Height: 1055 mm
Machine Weight: 235 kg

Movement

Number of Axes: 3

Additional Information

Additional equipment

Autofocus: Light Bar Focus (electro-optic)
Positioning: Laser pointer (655 nm, <0.99mWcw)
LED lighting
Software: JobControl® Expert Software, iOS App

Machine Benefits

Technical Machine Benefits

Ergonomic access to working area
Coaxial air assist
Optional features: protection kit, air assist, rotary attachment, jobcontrol® vision, vacuum table, honeycomb cutting tabletop, specialized cutting tables
Exhaust system: surface exhaust via rear of the engraving cabinet, table exhaust with vacuum and cutting table
Laser safety: classification: cdrh laser safety, ce tested, laser class 2
Laser safety: safety features: duplicate interlock system, front-side loading lid
Temperature: +15°c to +25°c
Humidity: 40% to max. 70% (non-condensing)
Dust-free environment: 2nd degree per iec 60947-1

Extra Information

Movement Working Area: 813 × 508 mm Loading Area: 890 × 600 mm Max. Workpiece Height: With working table: 210 mm Without working table: 280 mm Motion System Speed: 355 cm/sec Acceleration: 5g Workpiece Max. Material Load: Static: Up to 100 kg Dynamic: Up to 30 kg Table Working Tables: Standard: Ferromagnetic engraving table Optional: Multifunctional table system and Honeycomb cutting tabletop Tools Lenses: Standard: 2.0" Optional: 1.5", 2.0" clearance lens, 2.5", 4.0"

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
