CO₂ laser cutting machine manufactured in 2022. This KERN KER60120-KT500 OPF features a working area of 1524 × 3048 mm and a maximum workpiece height of 50 mm. It includes a powerful 500 W CO₂ laser and offers various work tables for different materials. If you are looking to get high-quality cutting capabilities, consider the KERN KER60120-KT500 OPF machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: KERN
- year: 2022
- MODEL: KER60120-KT500 OPF
- production hours: 3550
- application type: Cutting
- Location: Austria
- machine type: CO2 Laser Cutting Machine
Technical Information - KERN KER60120-KT500 OPF
Dimensions
- Machine Height: 1346 mm
- Machine Length: 3988 mm
- Machine Weight: 2495 kg
- Machine Width: 2083 mm
- Table Length: 3048 mm
- Table Load: 1000 kg
- Table Width: 1524 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1524 mm
- Z-axis Travel: 3048 mm
Technical Specification
- Laser Power: 0.5 kW
Additional Information

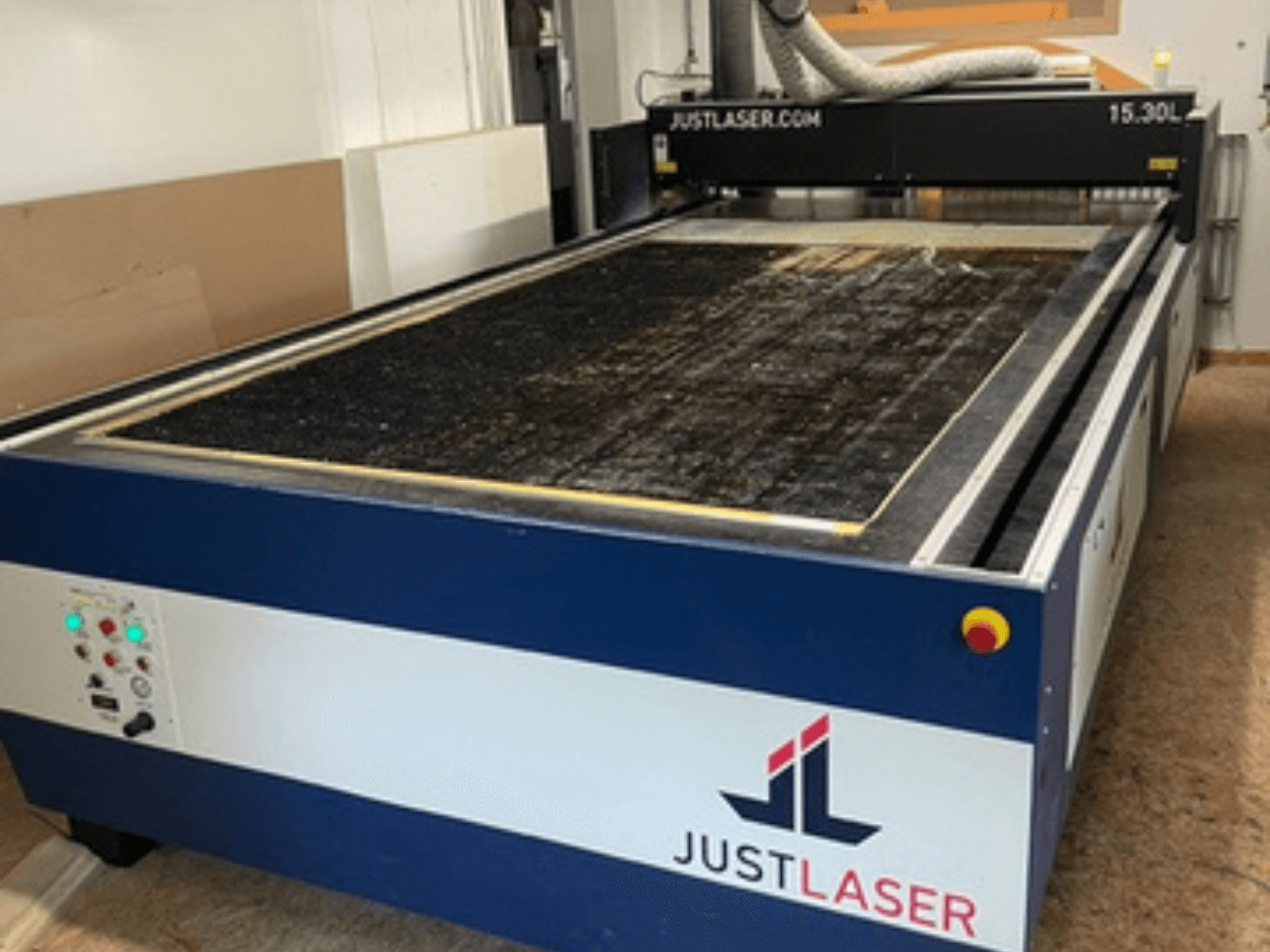

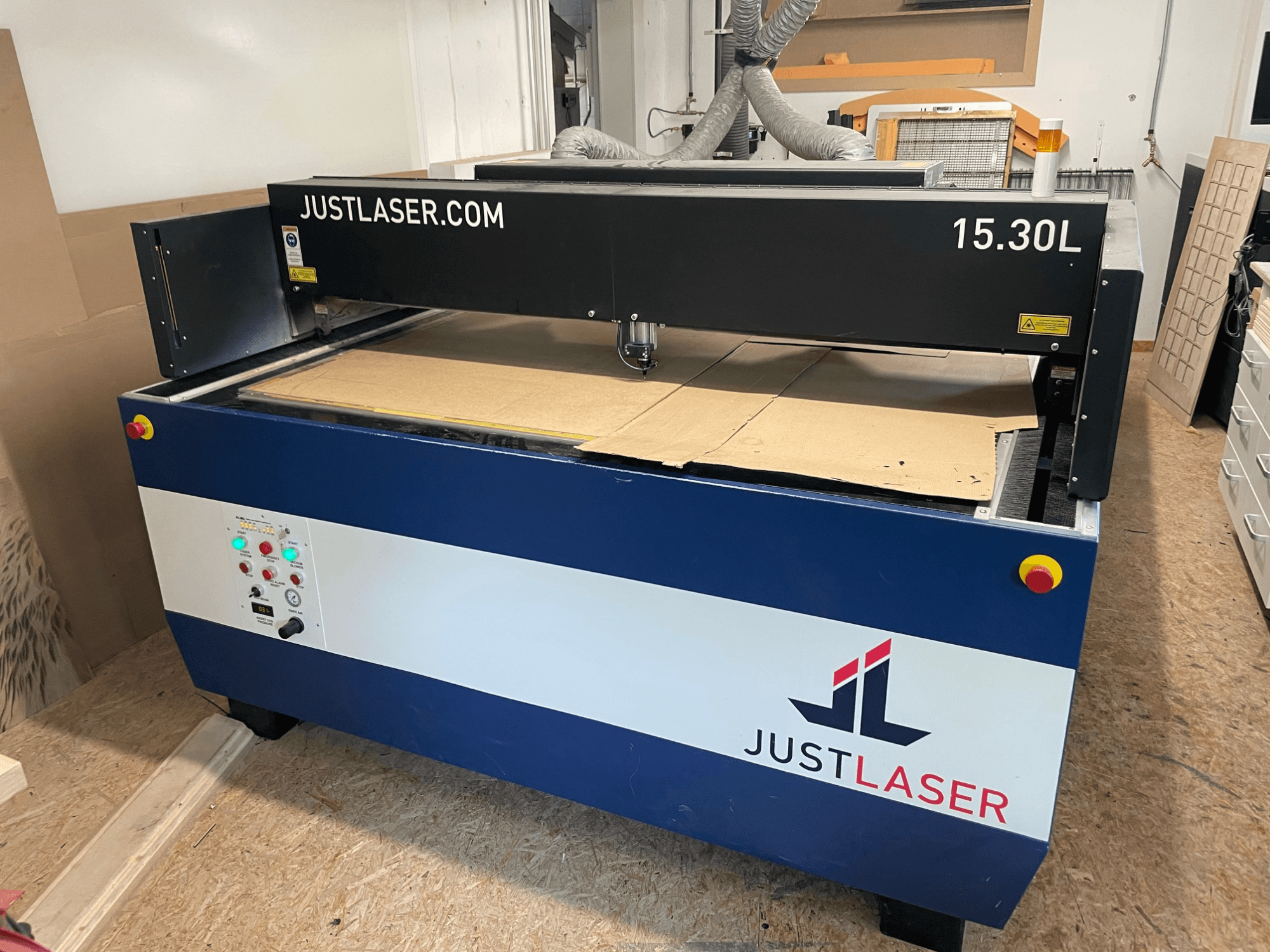

Machine – JustLaser 15.30L-C500-MC
Machine Type: CO₂ Laser Cutting and Engraving System
Configuration: Open Flatbed Gantry Laser System
Maximum Workpiece Height: 50 mm
Maximum Engraving Speed: 3.8 m/s
Maximum Engraving Speed (Metal Cutting Option): 3.2 m/s
Maximum Engraving Speed (Z12 Option): 1.5 m/s
Maximum Cutting Speed: 0.5 m/s
Motors: Brushless DC Servo Motors
Encoder System: Incremental Measurement System
Optics: Air-purged telescope, lenses and mirrors
Standard Lens: 2.5"
Optional Lens: 5.0"
Software: KCAM Laser Software
Interface: G-Code, HPGL, AD-Logic System
Control Board: KLCM Controlboard
Operator Controls: Key Switch, Emergency Stop, Mouse, Keyboard, Monitor and PC Included
Electrical Supply: 3 × 400 V (3L + N + PE), 50/60 Hz
Table Exhaust Requirement: 3000 m³/h
Axis Exhaust Requirement: 1500 m³/h
Maximum Air Pressure: 10 bar
Maximum Inlet Pressure: 12 bar
Maximum Air Flow: 240 l/min
Connection Size: 6 mm
Noise Level: 55 dB
Certification: CE
Operating Temperature: +15 °C to +25 °C
Humidity: 40–70 % Non-Condensing
Environment: Dust-Free
Active Laser Protection Shield
Pressure Sensors
Light Curtain
Interlock Safety System
Metal Cutting Option Included
Capacitive Height Follower
Metal Cutting Table
Copper Nozzle
2.5" Lens Set
k-vision Print & Cut Camera System
JustAIR High Performance Turbines (2 × 1500 m³/h)
Laser Source – Kern Laser Systems
Model: KER50120-4K500 OPP
Laser Type: Sealed-off CO₂ Laser
Laser Power: 500 W (0.5 kW)
Laser Wavelength: 10.6 µm
Supply Voltage: 380–415 VAC
Phase: 3 Phase (4 Wire + Ground)
Frequency: 50/60 Hz
Maximum Fuse Size: 40 A
Full Load Current: 32.3 A
Disconnect Rating: 40 A
Short Circuit Current Rating: 5000 A
Interrupt Capacity: 35000 A
Largest Amp Load: 16 A
Laser Class: Class 4
Country of Manufacture: USA
Chiller – SMC HRS090-AF-40
Cooling Type: Water Cooling
Cooling Capacity: 5 kW
Refrigerant: R410A
Refrigerant Charge: 1.5 kg
Weight: 136 kg
Power Supply: 3~ 380–415 V, 50/60 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
