AMADA - LCG-3015HR-CUT-AMA-2014-00001

Name: AMADA LCG-3015
Brand: AMADA
SKU: HR-CUT-AMA-2014-00001
Price: 9419300 INR
Availability: InStock

Rs. 9,419,300

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA LCG-3015 For Sale | gindumac.com

Show in original language

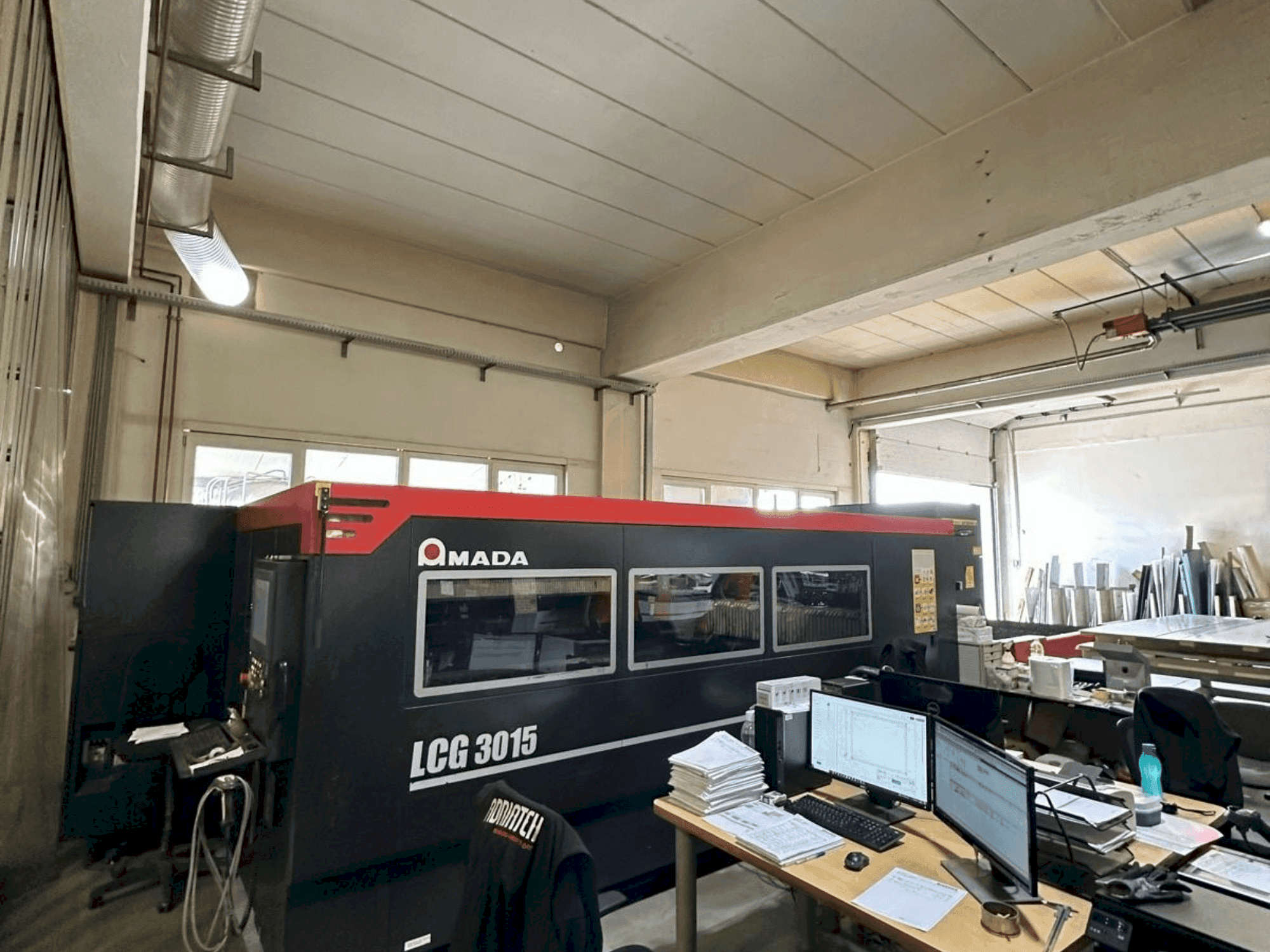

This AMADA LCG-3015 was manufactured in 2014. It features a CO₂ laser oscillator AF3500i-C with 3.5 kW power, capable of cutting up to 19 mm mild steel, 9.5 mm stainless steel, and 8 mm aluminum. The machine supports a maximum workpiece weight of 920 kg and has rapid feed rates of 170 m/min. For more information about this machine, please reach out to us.

Overview

brand: AMADA
year: 2014
MODEL: LCG-3015
application type: Cutting
Location: Croatia
machine type: CO2 Laser Cutting Machine

Technical Information - AMADA LCG-3015

General Data

Measurements width: 2840 mm
Measurements depth: 9997 mm
Measurements height: 2166 mm
Machine weight: 11200 kg

Movement

X-AXIS Movement: 3070 mm
X-AXIS Rapid traverse: 170 m/min
Y-AXIS Movement: 1550 mm
Y-AXIS Rapid traverse: 170 m/min
Z-AXIS Movement: 100 mm

Workpiece

Workpiece weight: 920 kg

Max Material thickness

Steel: Up to 19 mm
Stainless steel: Up to 9.5 mm
Aluminum: Up to 8 mm

Additional Information

Additional equipment

Laser Oscillator: AF3500i-C CO₂, 3.5 kW

Machine Benefits

Technical Machine Benefits

Control / cnc: amnc/pc with auto focus and nc gas control
Positioning accuracy: ±0. 01 mm
Repeatability: ±0. 005 mm
Maximum processing dimensions: 3070 x 1550 x 100 mm
Processing surface height: 840 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
