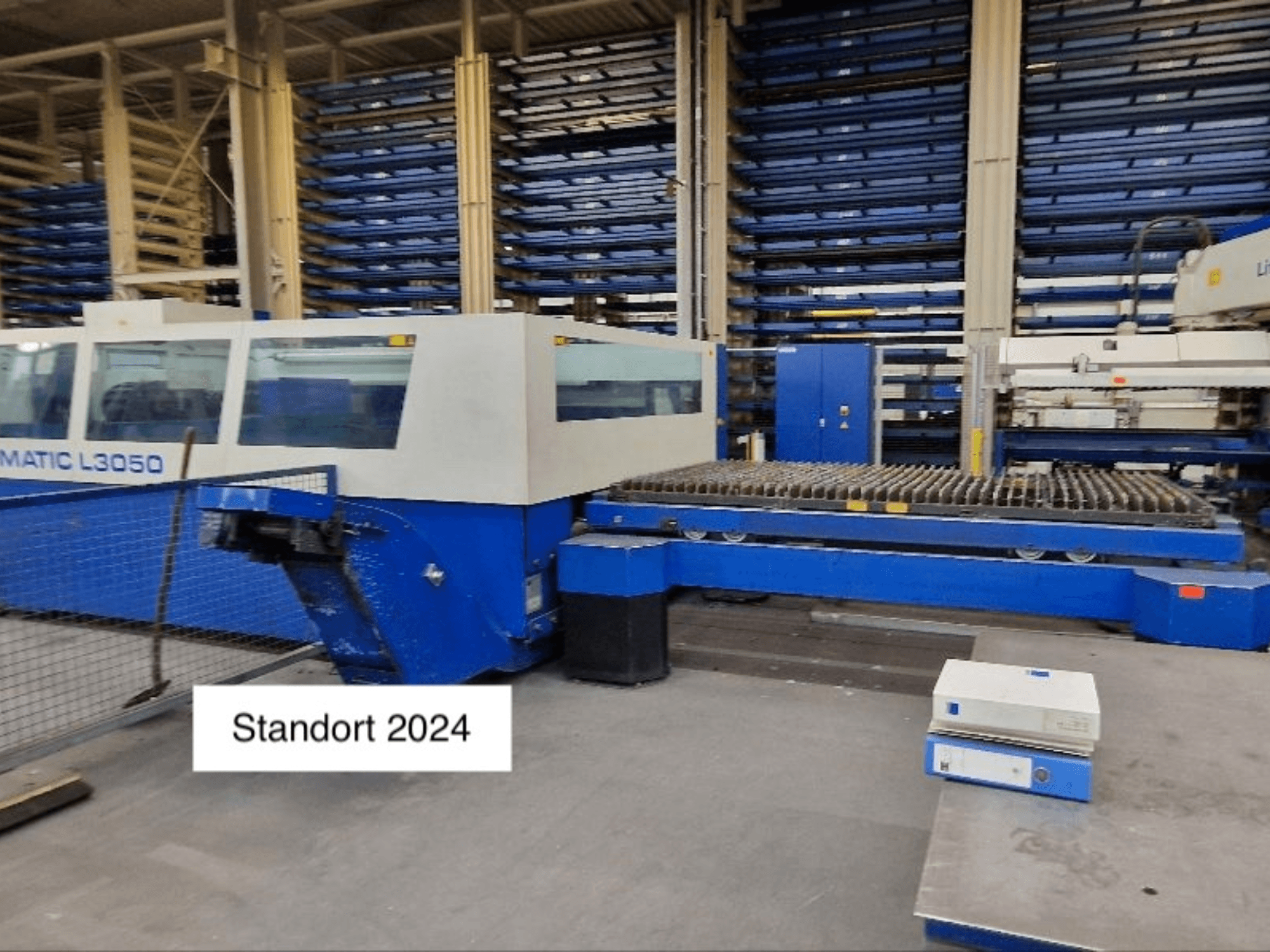

This 3-axis TRUMPF Trumatic L3050 was manufactured in 2004. It features a working range of 3,000 x 1,500 x 115 mm and a maximum workpiece weight of 900 kg. The machine is equipped with a powerful 6 kW CO2 laser, capable of cutting through materials up to 25 mm thick for iron and stainless steel, and 15 mm for aluminum. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF Trumatic L3050 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2004
- MODEL: Trumatic L3050
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - TRUMPF Trumatic L3050
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Max. workpiece weight: 900 kg
Positioning speed (X/Y): 200 m/min
Simultaneous positioning speed (X+Y): 300 m/min
Maximum iron thickness: 25 mm
Maximum stainless steel thickness: 25 mm
Maximum aluminum thickness: 15 mm
Additional equipment
TRUMPF LiftMaster loading and unloading unit (currently not installed)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
