GINDUMAC
Products
Machine Tools

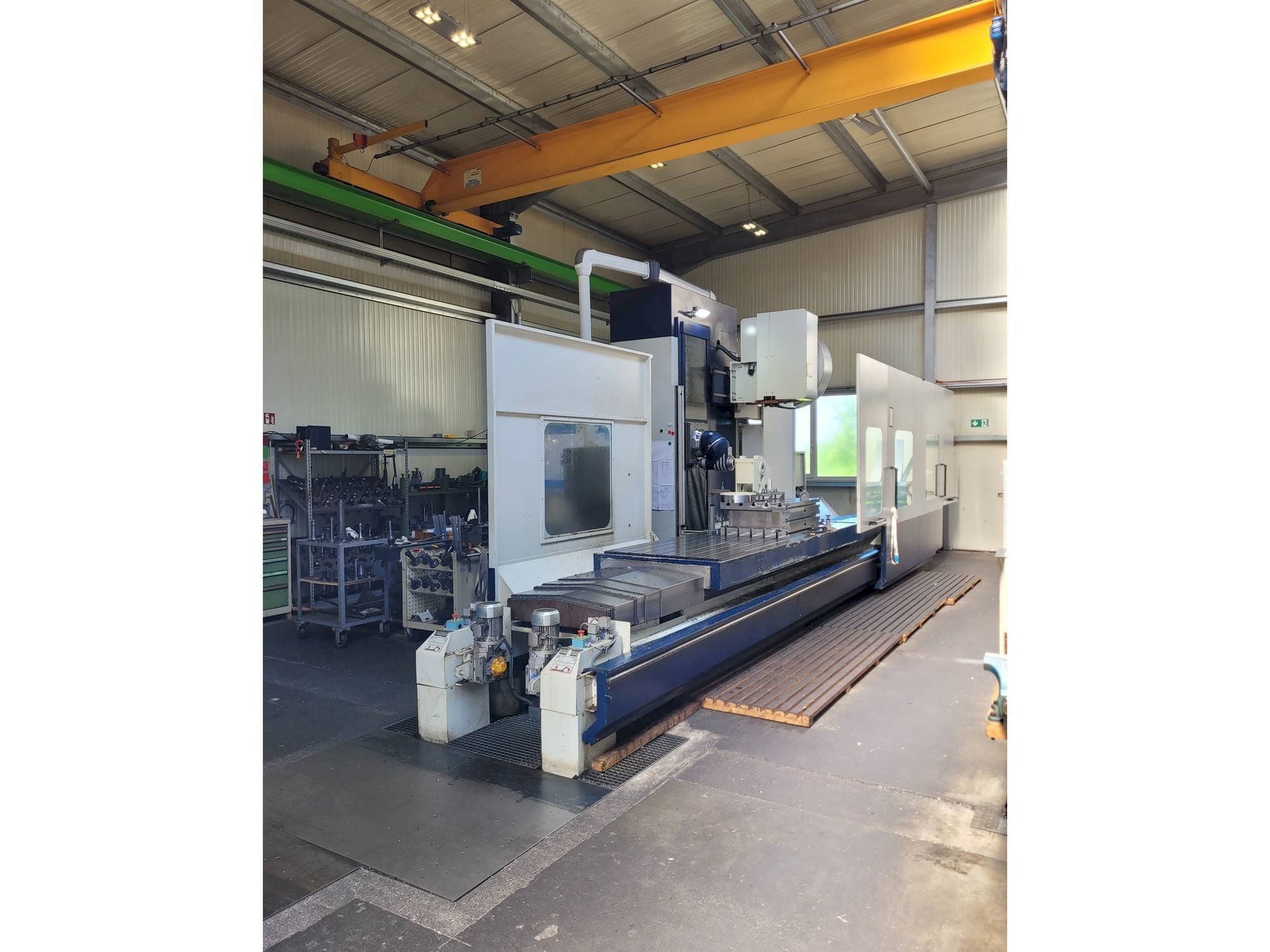

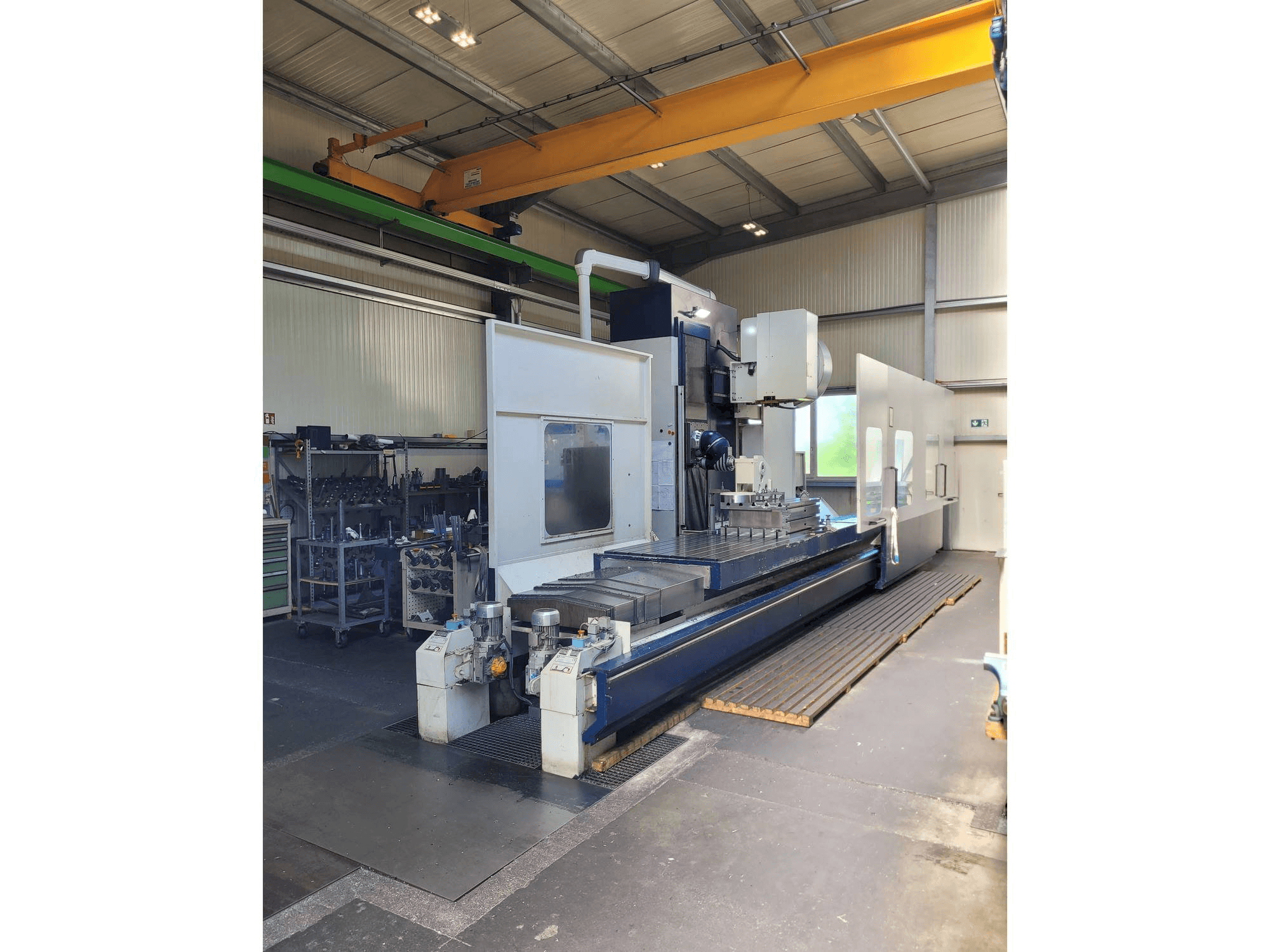

Soraluce T35 Vertical Machine Center

Show in original language

This Soraluce T35 Vertical Machine Center was built in the year 2016 in Spain and has 23363 hours, of which 8829 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 20 - 4000 rpm.

Overview

brand: Soraluce
year: 2016
MODEL: T35
production hours: 23363
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce T35

General Data

Measurements width: 9100 mm
Measurements depth: 5200 mm
Measurements height: 4100 mm
Machine weight: 23000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 4000 1/MIN

Movement

X-AXIS Movement: 3500 mm
X-AXIS Rapid traverse: 35000 mm/min
Y-AXIS Movement: 1600 (*2100) mm
Y-AXIS Rapid traverse: 35000 mm/min
Z-AXIS Movement: 1300 mm
Z-AXIS Rapid traverse: 35000 mm/min

Tools

Type of tool holder: ISO 50, DIN 69871 A

Media

Main electronic connection: 400 Volt±10%, 50 Hertz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
