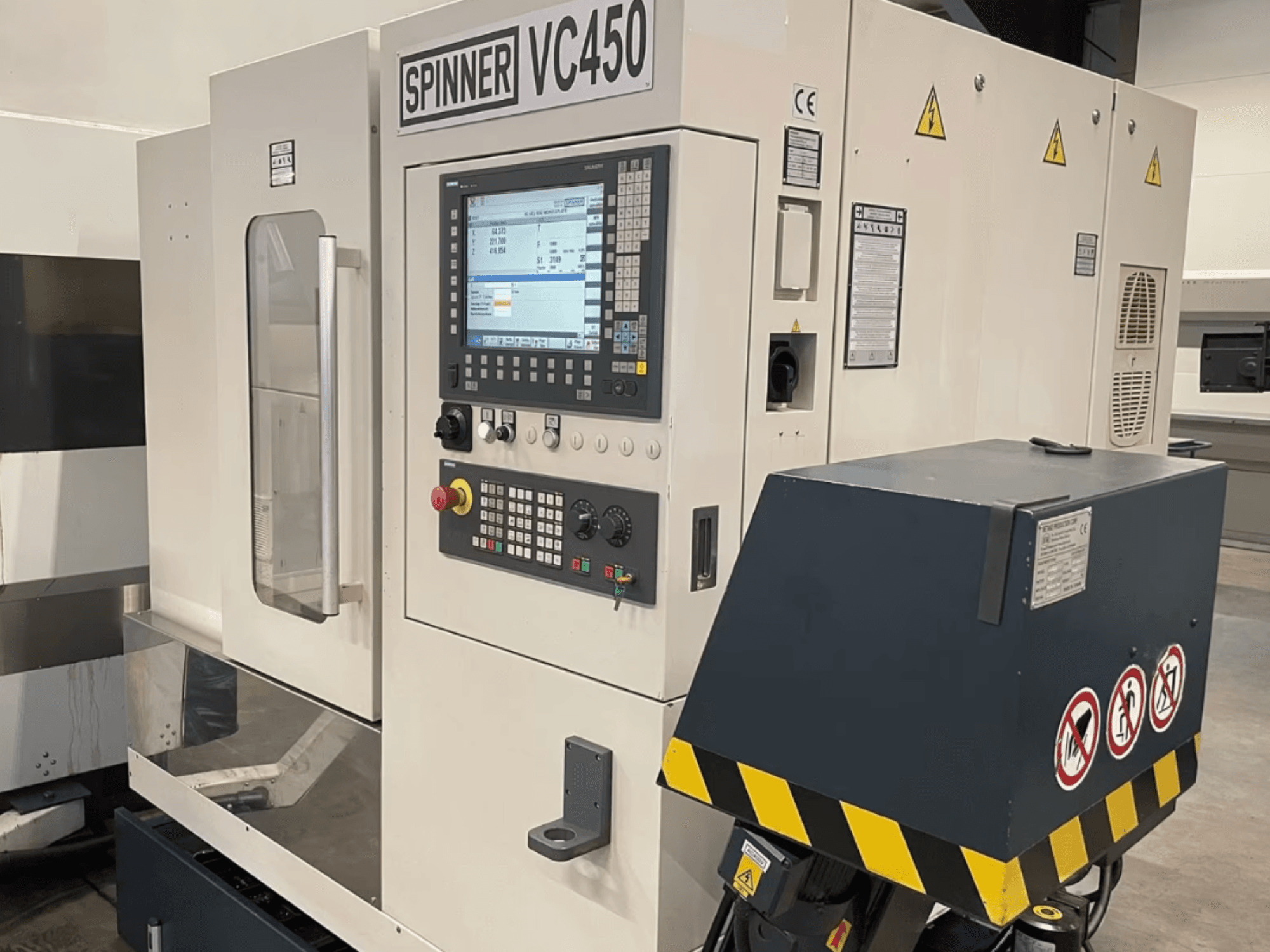

This 3-axis SPINNER VC450 was manufactured in 2014. It features an X-axis travel of 450 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The machine includes a robust table size of 770 x 410 mm and a maximum table load of 200 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER VC450 vertical machining center we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2014
- MODEL: VC450
- production hours: 30
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER VC450
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL
Dimensions
- Machine Height: 2515 mm
- Machine Length: 2390 mm
- Machine Weight: 3500 kg
- Machine Width: 1700 mm
- Table Length: 770 mm
- Table Load: 200 kg
- Table Width: 410 mm
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 16 kW
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
- Through-spindle Coolant: Yes
- Tool Stations: 24
Additional Information
Control Unit Brand: Siemens
Control Unit Model: Siemens 840D SL
Spindle Power: 16 kW
Maximum Torque: 60 Nm
Rapid Traverse: 36 m/min
Tool Magazine Capacity: 24 Positions
Maximum Tool Diameter: 80 mm
Maximum Tool Length: 200 mm
High-Pressure Through-Spindle Coolant (CTS)
External Coolant Tank
Fully Enclosed Working Area
T-Slot Worktable
3-Color Signal Tower
Machine Status: Tested and Fully Functional
Main Spindle Replaced by SPINNER in February 2026
Operating Hours Since Spindle Replacement: approx. 30 h
Additional Equipment
Chip Conveyor
Machine Vises (optional)
SK40 Tool Holders (optional)
Additional Tooling and Accessories (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
