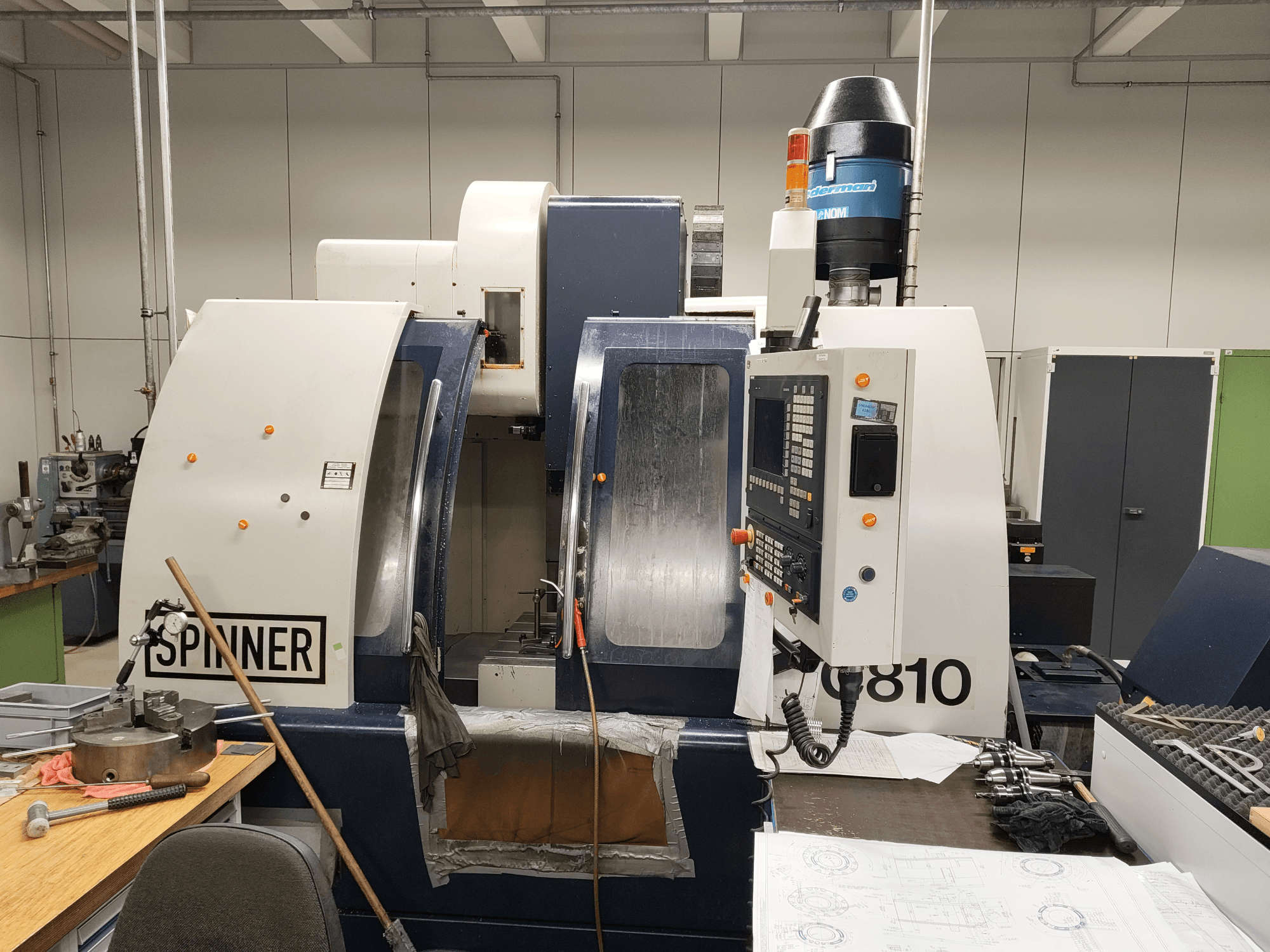

This 3-axis SPINNER VC810 was manufactured in 2004. It features an X-axis travel of 810 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine is equipped with a maximum spindle speed of 8,000 rpm and an automatic pick-up tool changer with a capacity of 24 tools. If you are looking to get high-quality machining capabilities, consider the SPINNER VC810 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2004
- MODEL: VC810
- production hours: 37336
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER VC810
Control Unit
- Control Brand: SIEMENS
- Control Model: 810D PowerLine
Dimensions
- Machine Height: 2750 mm
- Machine Length: 2750 mm
- Machine Weight: 4800 kg
- Machine Width: 2300 mm
- Table Length: 900 mm
- Table Load: 500 kg
- Table Width: 600 mm
Movement
- Number of Axes: 3
- X-axis Travel: 810 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Max. Workpiece Height: 610 mm
- Positioning Accuracy: 5 µm
- Spindle Power: 15 kW
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
- Tool Stations: 24
Additional Information
Rapid Traverse: 30 m/min
Taper Size: SK40 (DIN 69871A)
Tool Changer: Automatic Pick-Up Tool Changer
Linear Guideways on All Axes
Counterweight on Z-Axis
Coolant System
Working Area Light
Oil Mist Extraction System
Supply Voltage: 3/PE ~ 400 V
Frequency: 50 / 60 Hz
Operating Current (IB): 50 A
Rated Current (IN): 50 A
Chip Conveyor (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
